• Model NO.：DLM-0866
• Specification：Safe Export Standard
• Trademark：DL
• Origin：China
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. DLM-0866 Specification Safe Export Standard Trademark DL Origin China Production Capacity 100 PCS/Month

Product Description

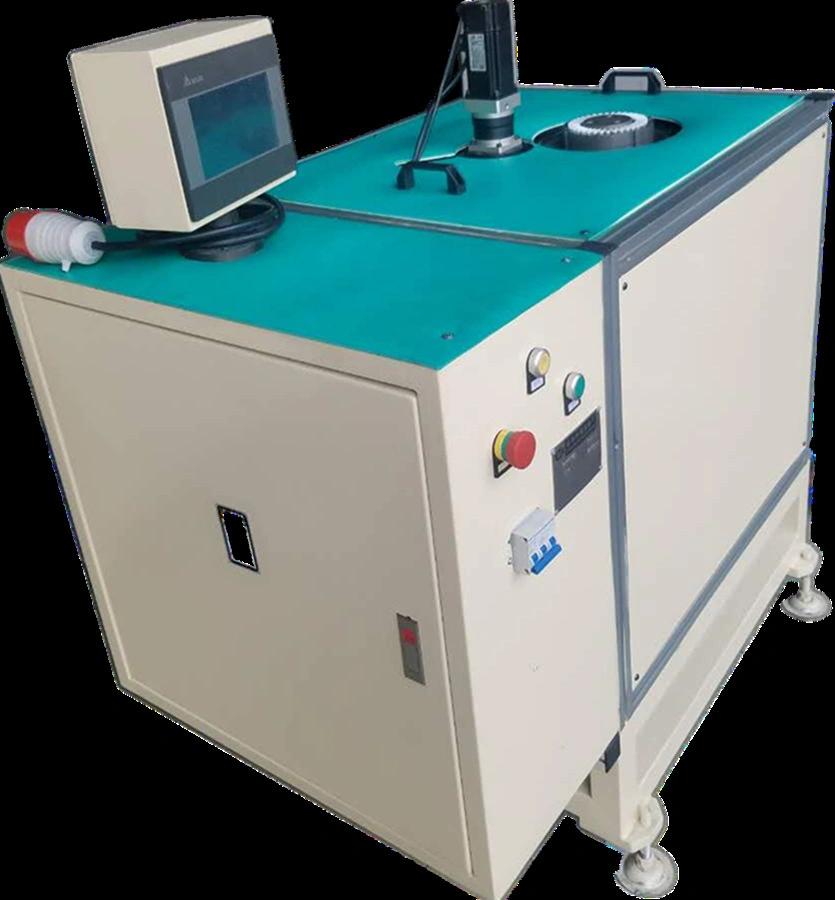

Automatic Coil Winding Machine

DLM-0866 coil winding machine
1. Array Motor.
2. Automatic computer control.
3. Super quality

DLM-0866 coil winding machine Introduction
1. It is horizontal and automatic winding machines with serial parallel coil formers, which is suitable for winding various AC, DC motor stator coil and inductance coil.
2. It is controlled by a single board computer, and a stepping motor can automatically complete the operations such as zero resetting, traversing and skipping so as to realize exact lining.
3. Through the control panel, users can set the wire diameter, number of turns, through of traverse and skipping distance, etc. According to their demands.

DLM-0866 coil winding machine Technical Parameter
Suitable Wire Diameter: 0.1-1.2mm
Winding Width: 0-30mm
Winding Diameter: 25-180mm
Effective Length of Series-mode Axis: 500-600mm
Return Diameter of Former: 210-280mm
Rotation Speed: 3200R. P. M
Power Source: 220V 50Hz
Pressure of Air Supply: 0.5-0.8MPa
Power: 750W
Dimension(L x M x H): 1450 x 912 x 1200mm
Weight: About 800kg
