• Model NO.：YX76.8-105
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New

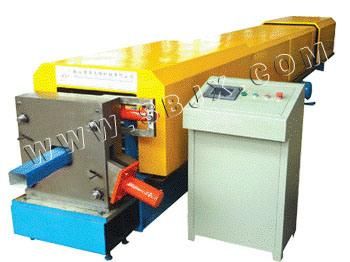

• Product Name：Downspout Roll Forming Machine
• Thickness：0.4-0.7mm
• Machine Structure：Wall Board
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialColored Steel plate, Galvanized steel

2

Width of the raw materialBased on profile drawing3Thickness0.4-0.7mm

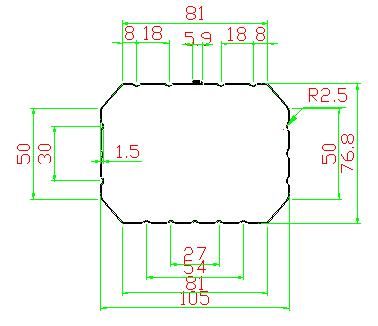

Profile drawing:

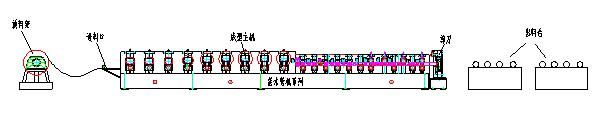

The Chart of Process Flow

Manual Uncoiler-Roll Forming-Cutting-out table

Specification of Components

No Technical Specification & Remark1

Manual Uncoiler



• Width of feeding: 350mm
• Capability: 3 Ton
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

2

Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢65mm material: SAE1045 with tempering
• Main frame by 350H beam welding
• Machine structure: wall board panel

3

Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW
• Length measuring: Automatic encoder length measuring

4

Bending machine

• Control system: Strong electrical current
• Max bend angle: 90°
• Function: bend and fasten at the same time



 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
