Downspout Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX74.5-103
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Product Name：Downspout Roll Forming Machine
- Power：5.5kw+4kw
- Steel Thickness：0.4-0.7mm
- Transport Package：No Packing
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
1
2

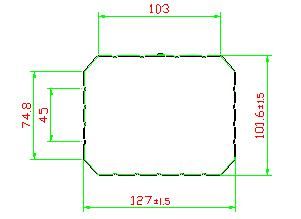

Profile drawing:

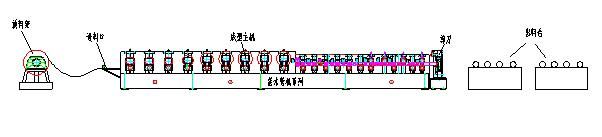

The Chart of Process Flow
Manual Uncoiler-Roll Forming-Cutting-out table
Specification of Components
Manual Uncoiler
- Width of feeding: 350mm
- Capability: 3 Ton
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ¢65mm material: SAE1045 with tempering
- Main frame by 350H beam welding
- Machine structure: wall board panel
Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required length
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Length measuring: Automatic encoder length measuring
Bending machine
- Control system: Strong electrical current
- Max bend angle: 90°
- Function: bend and fasten at the same time
Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
