• Model NO.：YX76.8-105
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Downspout Roll Forming Machine
• Power：5.5kw+5.5kw+2.2kw
• Steel Thickness：0.4-0.7mm
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300set,Year

NoSpecification of the material

1

Suitable MaterialColored Steel plate, Galvanized steel

2

Width of the raw material318mm3Thickness0.4-0.7mm

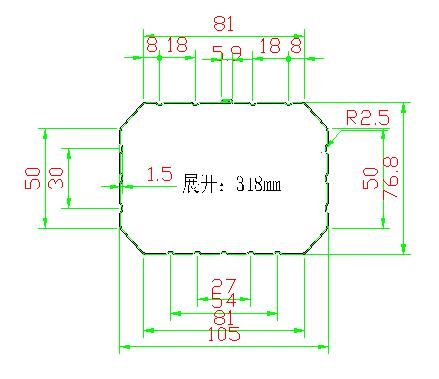

Profile drawing:

The Chart of Process Flow

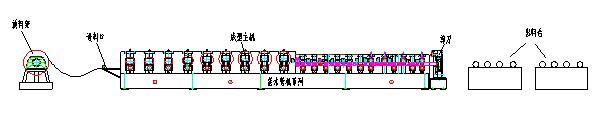

Hydraulic Uncoiler-Roll Forming-Cutting-out table

Specification of Components

No Technical Specification & Remark1

Hydraulic Uncoiler



• Capability: 3 Ton
• Mode of expand &fight: inner expand &fight by Hydraulic
• Way of feeding: electrical
• main power; 4kw

2

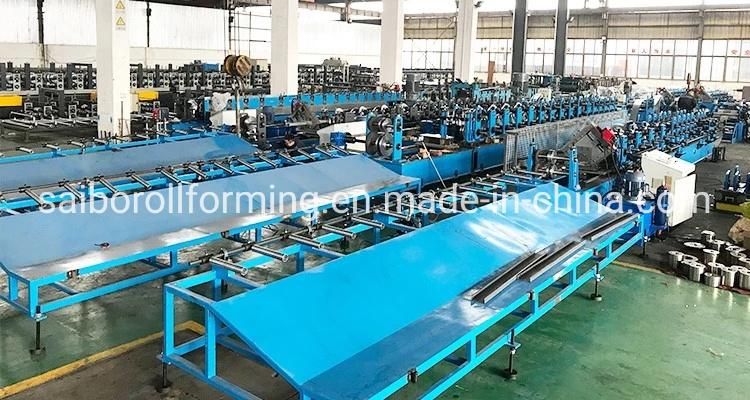

Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢65mm material: SAE1045 with tempering

3

Machine structure:



• Main frame by 350H beam welding
• Machine structure: wall board panel

4

Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW

5

Hydraulic System







• Hydraulic power: 5.5kw
• Working pressure: 12-16Mpa adjustable





6

Computer Control Cabinet



• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Length inaccuracy can be amended easily.
• PLC: Panasonic

7

Out table

• Size: 2m
• One out table with three support roller
• Quantity: 2 units

8

Bending machine



• Max bend angle: 90°
• Function: bend and fasten at the same time
• power; 2.2kw

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

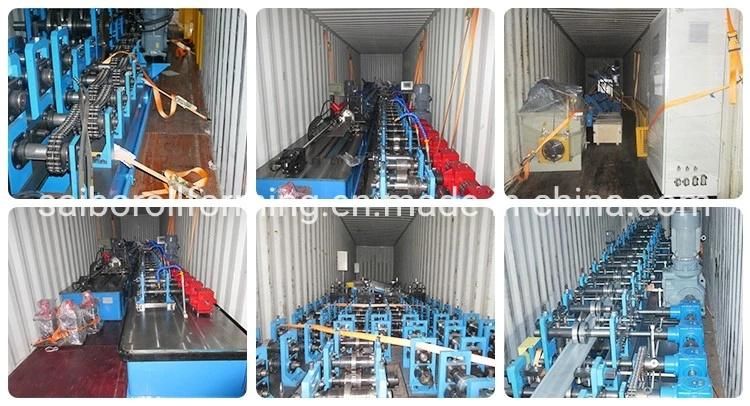

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
