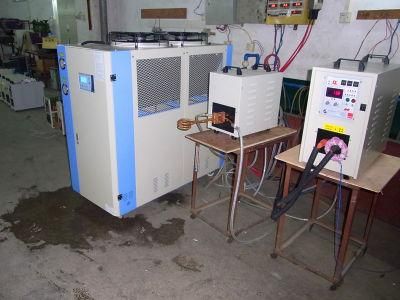

• Model NO.：HF-65KW with 5P chiller
• Input Current：60A
• Timing (Heat Time,Retain Time,Cool Time)：1-99s
• Weight：Mainparts:42kg Transformer:37kg
• Size：Main Parts:640*280*550mm Transformer: 510*260*410m

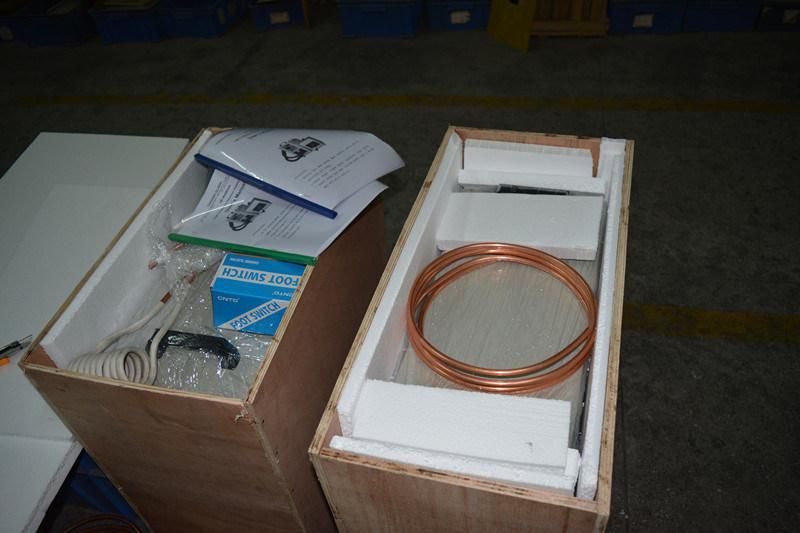

• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets

Basic Info.

Model NO. HF-65KW with 5P chiller Input Current 60A Timing (Heat Time,Retain Time,Cool Time) 1-99s Weight Mainparts:42kg Transformer:37kg Size Main Parts:640*280*550mm Transformer: 510*260*410m Transport Package Wooden Box Specification CE, SGS, ISO Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

Product Description

Induction Heating Machine:





Advantage:
1 More than ten years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW Tai FOOKS, Matsushita, Foxconn, Media, Gree a6ND ZHIGAO Air conditioner.

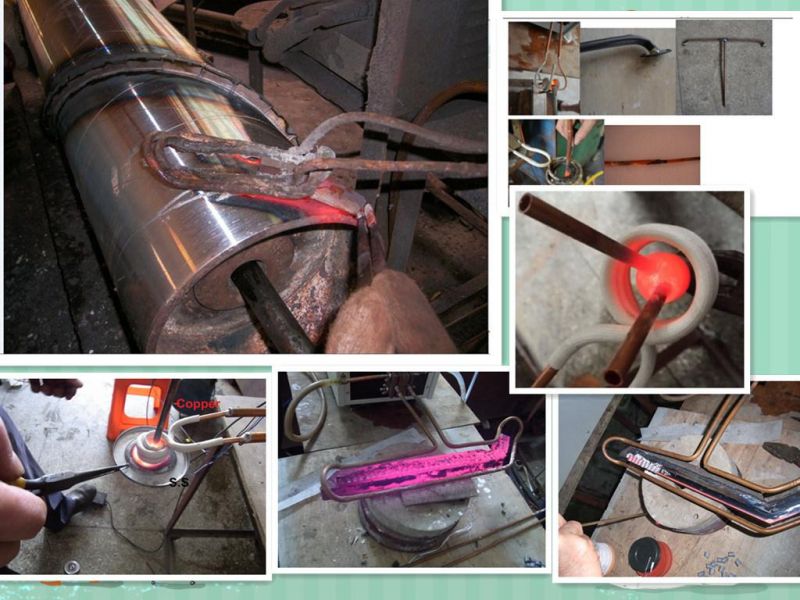

4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, more flexible connect different size induction coils.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;

Type	HF-65AB
Work Power	3*380v/415v/440v/480v  50-60hz
The range of operating voltage	340-430V AC
Output power	65KW
input current	60A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 11L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:42Kg    Transformer:37kg
Size	Main Parts:640*280*550MM Transformer: 510*260*410MM
