Compact High Vacuum Carbon & Metal Evaporation Coater
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Powder Coating Booth
- Coating:Vacuum Coating
- Substrate:Aluminum
- Certification:CE, TUV
- Condition:New
- Specimen Chamber:Fused Glass Tube
Base Info
- Model NO.:CY-1100X-SPC-15E-LD
- Heater:Tungsten
- Sample Stage:Dia.50mm
- Max.Coating Area:Dia.45mm
- Warranty:One Year
- Transport Package:Wooden Box
- Specification:Dia. 160x110mm
- Trademark:CY
- Origin:Zhengzhou, China
- HS Code:85141090
- Production Capacity:210 Sets,Month
Description
Basic Info.
Model NO. CY-1100X-SPC-15E-LD Heater Tungsten Sample Stage Dia.50mm Max.Coating Area Dia.45mm Warranty One Year Transport Package Wooden Box Specification Dia. 160x110mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 210 Sets/MonthProduct Description

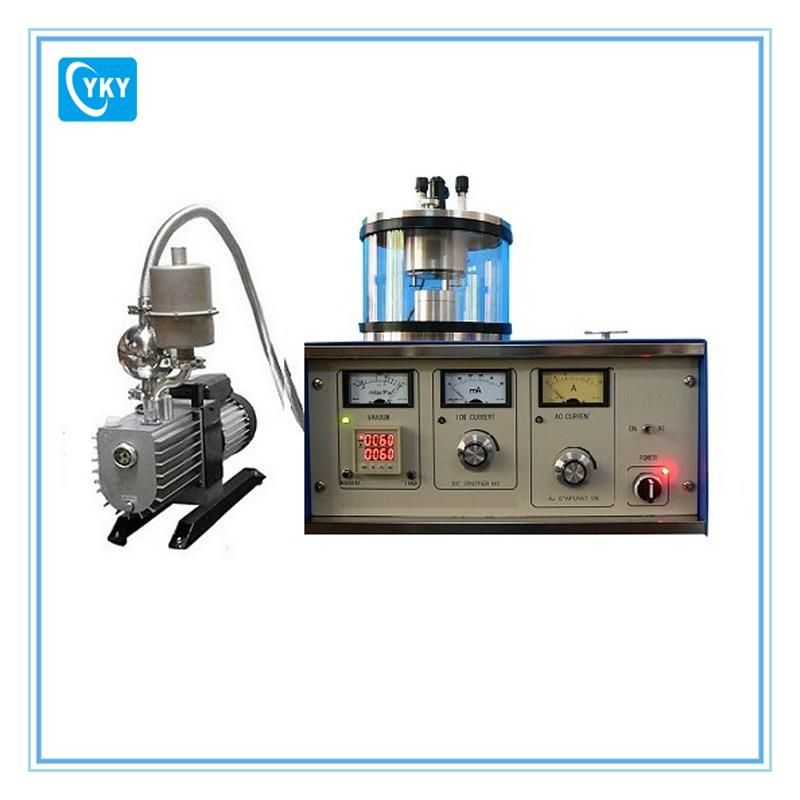

Compact Vacuum Carbon & Metal Evaporating Coater --- CY-1100X-SPC-15E-LDIntroduction
CY-1100X-SPC-15E is a compact evaporating coater, which is suitable for coating light metal, Al. Mg, and Li as well as carbon film to sample up to 2" wafer
Specification
Input Voltage | AC 208 - 220V 50/60 Hz , single phase 110V is available with a transform of 1500W |
Input Power | < 1000 W |
Output Power | 10VAC and 50A Max. |
Specimen chamber | Fused glass tube, 160 mm Dia. x 110mm Height |
Specimen stage | One 50 mm Dia.sample stage, Max. coating area: 45 mm Dia Evaporating fixture 3 tungsten heaters are included |
Tungsten Heater | 3 pcs tungsten heating coils, a carbon fiber string (3 ft long) for use as the source of carbon evaporation, and spare fuses are included. Extra spare tungsten heater is available If you need other evaporation materials, please contact use, we may supply or recommend a source for you |
Optional | KF25 port is built in the coater to connect a vacuum pump. A vacuum pump is required for coating ( not included ). Double Stage Rotary Vane Vacuum Pump with Vapor trap eliminates the oil mist, which can reach vacuum up to 10-2 torr for evaporating noble metallic materials, such as Gold, silver Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar able to provide vacuum level up to 1.05 x 10^-5 for evaporating oxygen sensitive materials, such as Al. Mg, Li etc |
Overall dimension | L360mm x W300mm x H380mm |
Application Notes | For long term usage, working current should be kept below 40A For evaporating materials with low vapor rate, 30A working current is good enough |
Net Weight | 50 kg |
Shipping Weight & Dimensions | 80 lbs, 40"x30"x25" |
