• Model NO.：DRS-1632 guillotine shearing machine
• Electrical Supply：380V,50Hz,3pH(220V,60Hz,3pH Available)
• Warranty：3 Years
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Certification：Ce,ISO,SGS
• Name：Cutting Machine
• Power：Hydraulic
• Cutting Angle：Adjustable
• Material Blade Shears：6crw2si
• Cutting Stroke：Adjustable
• Control System：According to Customer Requirements
• Transport Package：Wooden Package
• Specification：Metal Cutting Machine
• Trademark：DURAMA
• Origin：Nanjing
• HS Code：84623990
• Production Capacity：200 Sets

Basic Info.

Model NO. DRS-1632 guillotine shearing machine Electrical Supply 380V,50Hz,3pH(220V,60Hz,3pH Available) Warranty 3 Years After-Sales Service Provided Engineers Available to Service Machinery Overseas Certification Ce,ISO,SGS Name Cutting Machine Power Hydraulic Cutting Angle Adjustable Material Blade Shears 6crw2si Cutting Stroke Adjustable Control System According to Customer Requirements Transport Package Wooden Package Specification Metal Cutting Machine Trademark DURAMA Origin Nanjing HS Code 84623990 Production Capacity 200 Sets

Product Description

Durama Steel Sheet Metal Cutting Machine
DRGS (QC11Y-SERIES) Hydraulic Guillotine Shearing Machine
Hydraulic Guillotine Shearing Machine, Vertical Cutting Machine

  The model of this hydraulic cnc guillotine shear is DRGS series ( QC11K-series),As the second generation of shearing machine,guillotine shear keeps the advantage of cold working as well as it have more special features:in accord with metal sheet of various thickness,rake angle is adjustable to attain best performance of machine.

Basic features:
• Steel welded structure with stress-free
• Three guide trolleys enable accurate movement and fine shearing results
• Adjustable rake angle to minimize deformation of sheared plate

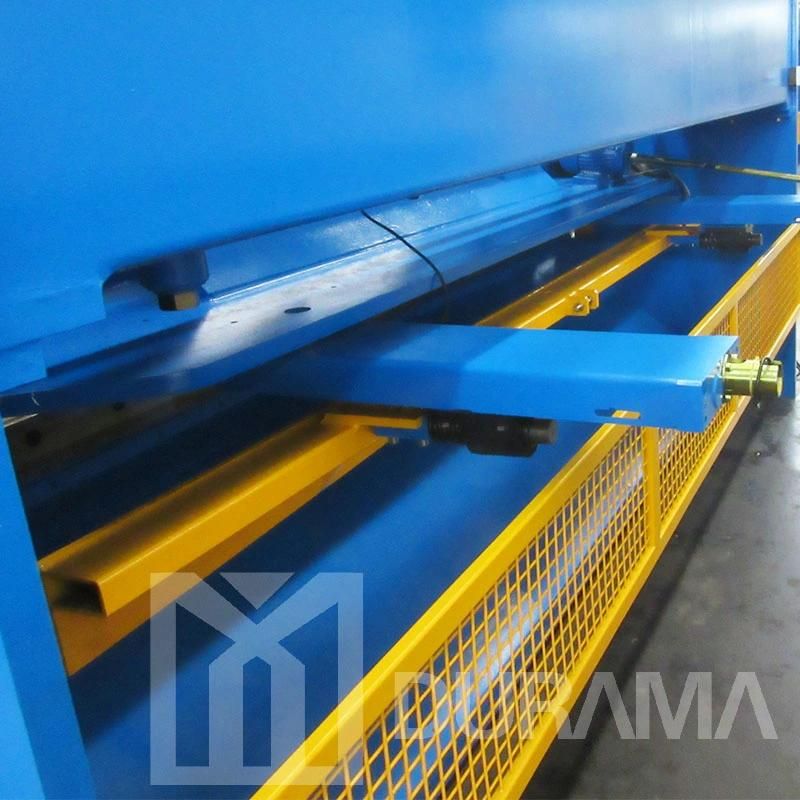

• Swing away backgauge function for cutting longer sheets
• Both upper blade and lower blade has 4 cutting edge for long lifespan of using

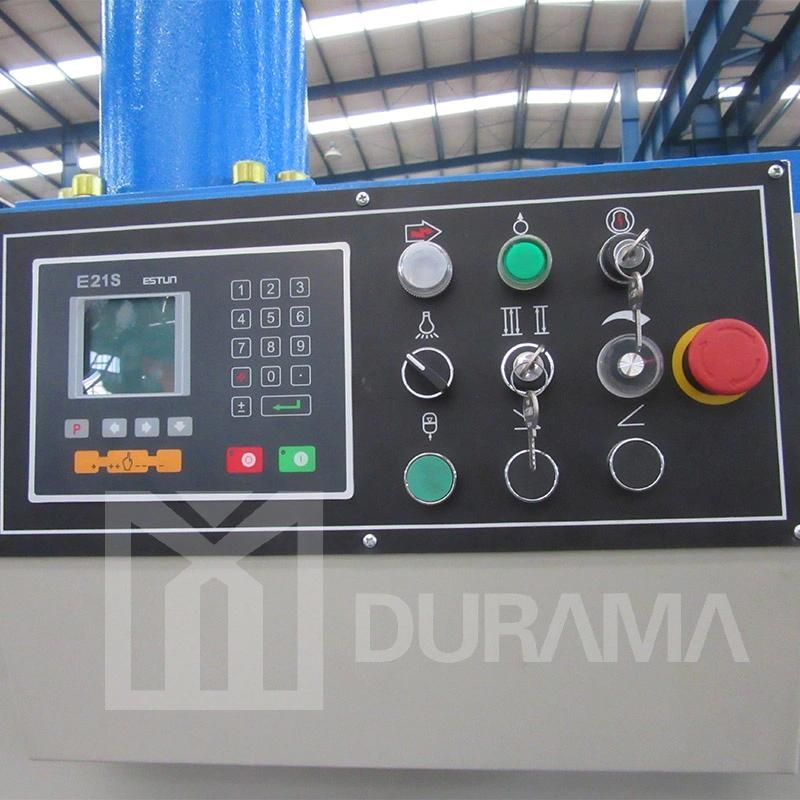

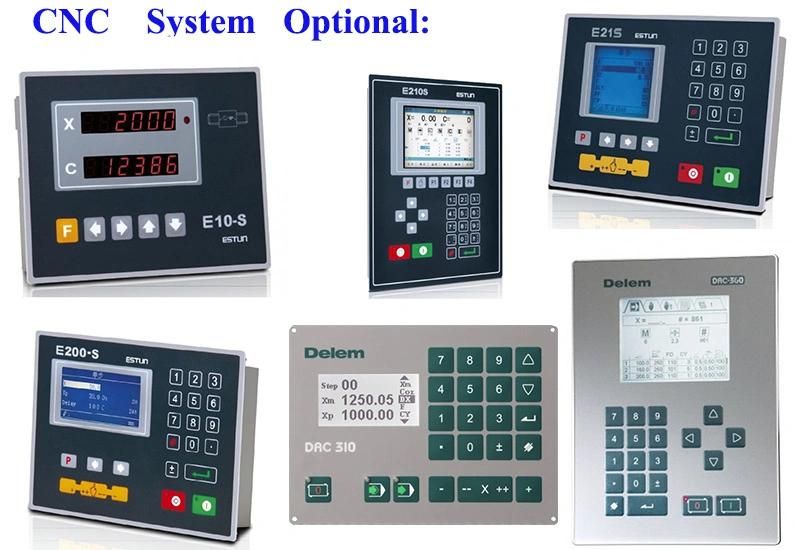

• Standard ESTUN E21 simple NC, optional DELEM DAC310, ELGO P40 etc.

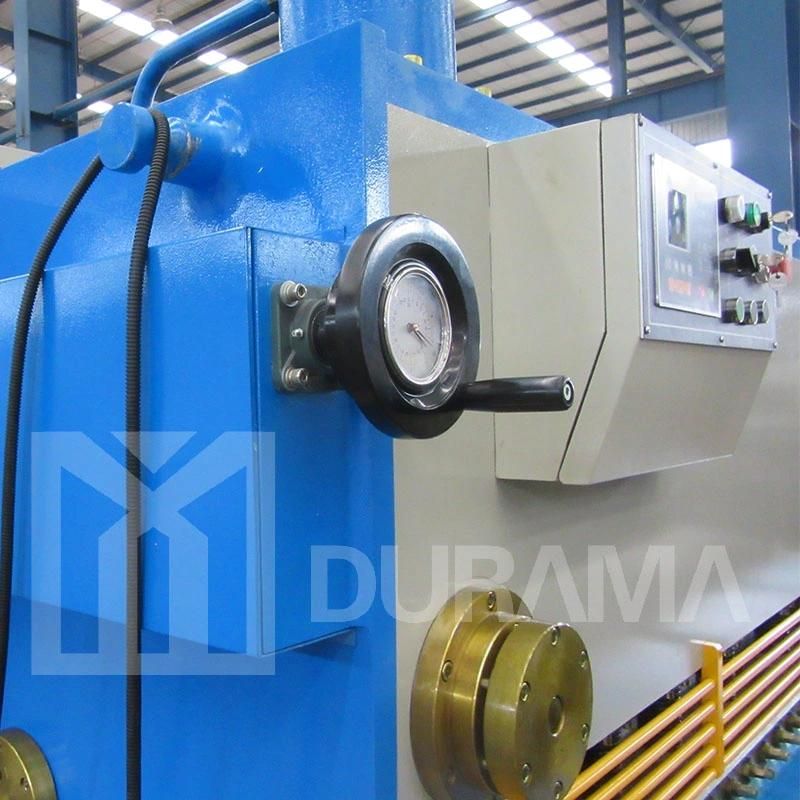

• Hand wheel blades gap adjustment with indicator,rapid,convenient and accurate
• Adjustable rake angle to reduce the distortion and deformation of the metal sheet



• Inchlining structure of the upper blade holder for easy blanking and high cutting precision
• Top blade could be adjusted to work for full stroke or shorter ones
• Customized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc





Technical Parameters:

Model	Cutting thickness (mm)	Cutting width (mm)	Shearing angle	Strokes  (min-1)	Backgauge range (mm)	Main Motor (kw)	Weight (kg)	Overall Dimensions L×W×H(mm)
Modelo	Capacidad de corte (mm)	Logitud de corte (mm)	angulo	Golpes per minuto  (min-1)	Tope trasero (mm)	Potencia motor (kw)	Peso aprox.  (kg)	Dimensiones L×W×H(mm)
DRGS-625	6	2500	0.5-2	10-25	20-600	7.5	5,000	3270×1580×2040
DRGS-632	6	3200	0.5-2	10-25	20-600	7.5	6,400	3820×1580×2100
DRGS-640	6	4000	0.5-2	10-25	20-600	7.5	8,500	4620×1630×2160
DRGS-650	6	5000	0.5-2	8-20	20-800	7.5	13,000	5530×2075×2080
DRGS-660	6	6000	0.5-2	8-20	20-800	11	17,000	6530×2075×2610
DRGS-670	7	7000	0.5-2	10-25	20-800	11	21,000	7530×2075×2830
DRGS-825	8	2500	0.5-2	10-25	20-600	11	5,500	3270×1580×2040
DRGS-832	8	3200	0.5-2	6-20	20-600	11	6,500	3820×1580×2100
DRGS-1225	12	2500	0.5-2.5	6-20	20-800	18.5	11,000	3400×1920×2350
DRGS-1232	12	3200	0.5-2.5	6-20	20-800	18.5	12,000	3950×1920×2400
DRGS-1240	12	4000	0.5-2.5	4-15	20-800	18.5	14,000	4750×1960×2580
DRGS-1380	13	8000	0.5-2.5	5-15	20-800	30*2	52,000	8600×2900×3100
DRGS-1625	16	2500	0.5-2.5	5-15	20-800	18.5	11,000	3450×2010×2350
DRGS-1632	16	3200	0.5-2	5-15	20-800	18.5	12,800	3940×1960×2400
DRGS-1640	16	4000	0.5-2.5	5-15	20-800	18.5	15,300	4745×2010×2640
DRGS-2025	20	2500	0.5-3	5-15	30-800	30	14,000	3450×2200×2560
DRGS-2040	20	4000	0.5-3	4-15	30-800	37	21,000	4660×2200×2710
DRGS-2525	25	2500	0.5-3.5	4-15	40-1000	37	17,000	3450×2700×2900

Company Information:

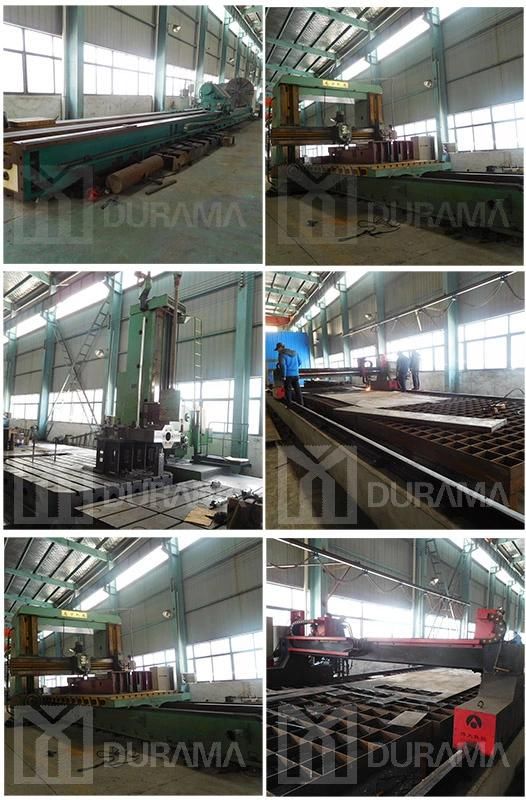

   We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.
   With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.


Our Services:
1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 days

Packaging and Shipping:
Standard Exporting Packaging for DURAMA Shearing  Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.

If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
