• Model NO.：DIXIN950 960 970 980
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Name：Sandwich Panel Press Machine
• Coil Material：Colored Steel Sheet, Aluminium Sheet, Galvanized S
• Thickness of The Plate：0.3-0.8mm
• Width：950-1200mm
• Core Thickness：40-300mm
• Appearance：38000mm × 3600mm × 3300mm
• PLC Control System：Easy to Operate, High Precision and Work Stably
• Total Power：About 25kw
• Speed：1000~4000mm,Min
• Density of EPS Panel：>18kg,Mmm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX980-1250
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：1 Set Per Month

Basic Info.

Model NO. DIXIN950 960 970 980 Customized Customized Advantage Easy to Maintenance Condition New Name Sandwich Panel Press Machine Coil Material Colored Steel Sheet, Aluminium Sheet, Galvanized S Thickness of The Plate 0.3-0.8mm Width 950-1200mm Core Thickness 40-300mm Appearance 38000mm × 3600mm × 3300mm PLC Control System Easy to Operate, High Precision and Work Stably Total Power About 25kw Speed 1000~4000mm/Min Density of EPS Panel >18kg/Mmm Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX980-1250 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 1 Set Per Month

Product Description

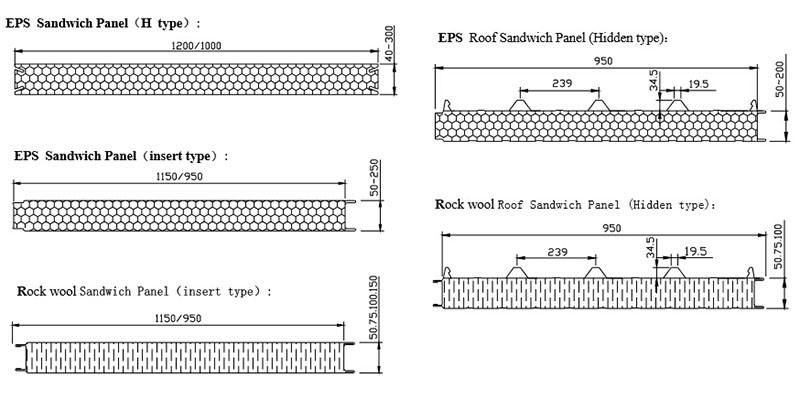

Sandwich Panel Production Line EPS Sandwich Panel Making Machine Production Line
EPS Sandwich Panel Making Machine parameters :


Manual decoiler	1).Material coil inner diameter: 450mm-550mm   2).Outer diameter:1500mm 2).Max coil width:1250mm  3).Carrying capacity: 5T
Forming device	1)Shaft material:high grade No.45 steel after treatment 2)Out diameter is80 mm 3)Roller material:  45# steel polished and coated with chrome HRC55-60° 4)Forming speed:8-15m/min 5)Main motor power:3 kw 6)Roller station:16stations  7)Coil width: 1000/1200/1250mm 8)Effective width:950/1150mm 9).Voltage:380v,50Hz,3 phase
Hydraulic cutter	1). material of blade: Cr12 mould steel with quenched treatment 55-60°C 2). cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort,  no wasting , high safe factor.(main motor stop cutting)
Control system	1.)Type: PLC Frequency Control System with touch screen 2).PLC Brand: Delta 3).Encoder Brand: Omron 4).Screen: Delta test screen 5).Automatic length and quantity measurement 6).Control station is used to control product length and quantity, automatically cutting to length  and stop when required quantity is achieved. 7).Length Error: ±2mm, error is easy to adjusted.
Outpur table	It is simple and used to load finished product. Length:6m
Spare Parts	1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2).Rubber mat 1 pcs; 3).Bolt spanner 1 pcs

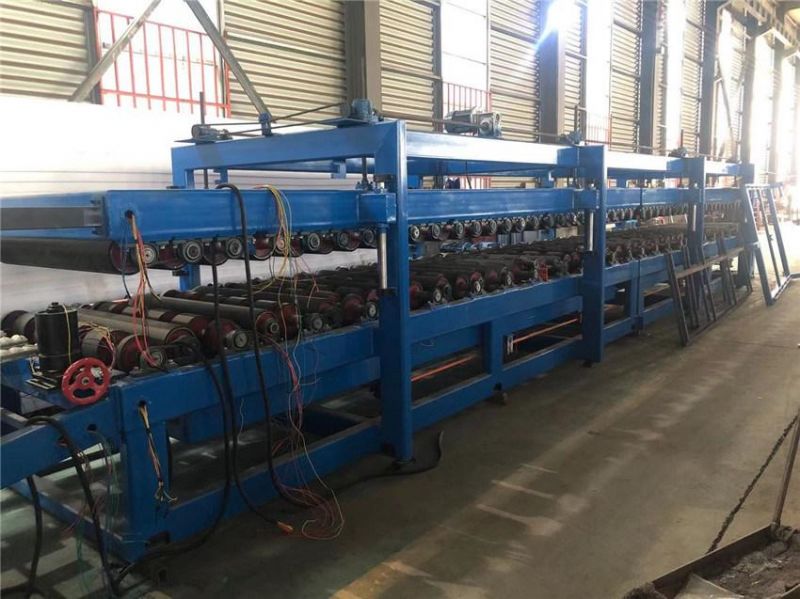

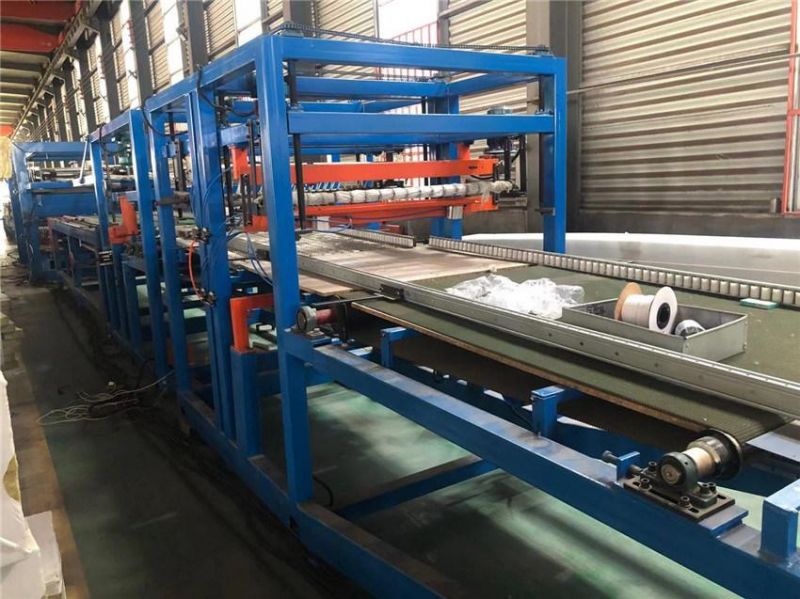

EPS Sandwich Panel Making Machine Photos


Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
Any questions, we will reply to you promptly.

WARMLY WELCOME TO OUR NEW FACTORY!

1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2: How to visit our company
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



If you want to get more pictures or videos of the machines, I can send them to you by Email
