Basic Info.

Model NO. LDX Transport Package Wooden Box Specification JIS, SGS Trademark Rainbow Origin Hebei HS Code 84639000 Production Capacity 200sets

Product Description

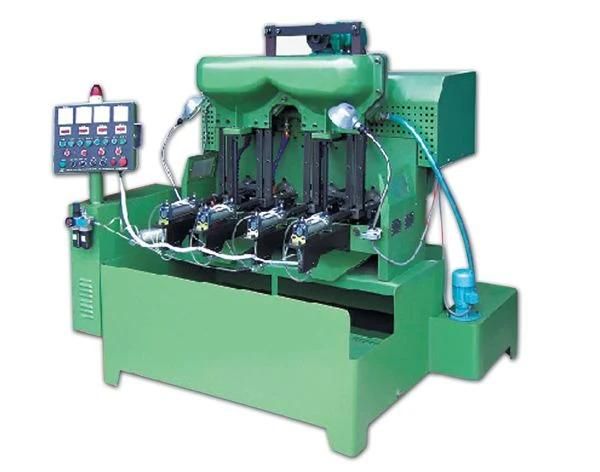

The Flange Hexangular Tapping machine of Pneumatic Four spindle.

It can direct against the tapping machine of DIN 934. DIN 985. Fin thread, pylome teeth nut.
IT can loss finish of thread is high with 100%


The automatic different type /cat nut tapping machine of double spindle.
The machine is high-speed production standard machine, as long as the nut rough add to the tape feeder,
The entire list could be directly putting into orbit and do the automatic tapping of the machine.

It can direct against the tapping machie of type. Such as BLIND HOLE, FIN THREAD, ROUND NUT, AXLE BUMPER, RIVET, SLEEVE, PYLOME TEETH AND VARIOUS OF OTHER SPECIAL-SHAPED NUT.

Action of machine adopts of fully automatic continually tapping, one can operate more machines.
For the more details of the machine, please contact me.

Other type nut tapping machine's specifications

LDH-M4-2 nut tapping machine for Flange
Model: LDH-M4-2
Size: M3, M4
No. Of Spindle: 2
Productivity (PCS/min) Flange: 80
Productivity (PCS/min) Hex: 100
Mian motor (KW): 0.75-4
Motor of material mixing (KW) 0.55
Oil pump (KW) 0.125
Air pressure(kg/cm) 1.5-2.5
Weight: 450kg


LDH-M8-2 nut tapping machine
Model: LDH-M8-2
Size: M5, M6, M8
No. Of Spindle: 2
Productivity (PCS/min) Flange: 70.65.60
Productivity (PCS/min) Hex: 100.90.80
Mian motor (KW): 0.75-4
Motor of material mixing (KW) 0.55
Oil pump (KW) 0.125
Air pressure(kg/cm) 2-3
Weight: 450 kg

We have all the type of nut tapping machine. For the Flange hexagonal nut.
For the different type nut, and cat nut tapping machine, we have Automatic cat nut tapping machine of double spindle.

Our machine has exported to India, Indonesia. And so on.

For anything of the machine, please feel free to contact me.
