• Model NO.：WRF-15
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Applicaiton：Steel Tractor Wheel 14-38inch
• Diameter Range of Wheel Rim：22.5-38"
• Width of Wheel Rim：7.5" -20"
• Thickness of Material：6mm
• Diameter of Top Roller：235 0 -0.02
• Diameter of Bottom Roller：145 0 -0.02
• Max. Section of Main Roller：250mm 2
• Main Roller Loading：2300kn, 500kn (Still)
• Productivity：About 800-1200 Pics,Shift
• Spindle Speed (Bottom Roller)：340 Rpm
• Transport Package：Wooden Package
• Specification：GB
• Trademark：BOBO
• Origin：China
• HS Code：8455229090
• Production Capacity：15 Sets, Year

Basic Info.

Model NO. WRF-15 Customized Customized Advantage Work Flexible Condition New Applicaiton Steel Tractor Wheel 14-38inch Diameter Range of Wheel Rim 22.5-38" Width of Wheel Rim 7.5" -20" Thickness of Material 6mm Diameter of Top Roller 235 0 -0.02 Diameter of Bottom Roller 145 0 -0.02 Max. Section of Main Roller 250mm 2 Main Roller Loading 2300kn/ 500kn (Still) Productivity About 800-1200 Pics/Shift Spindle Speed (Bottom Roller) 340 Rpm Transport Package Wooden Package Specification GB Trademark BOBO Origin China HS Code 8455229090 Production Capacity 15 Sets/ Year

Product Description

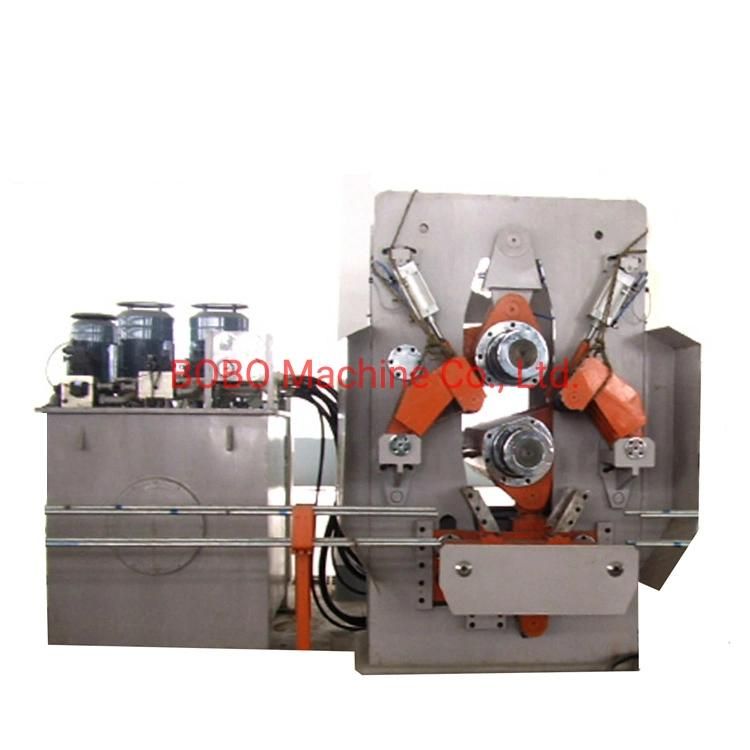

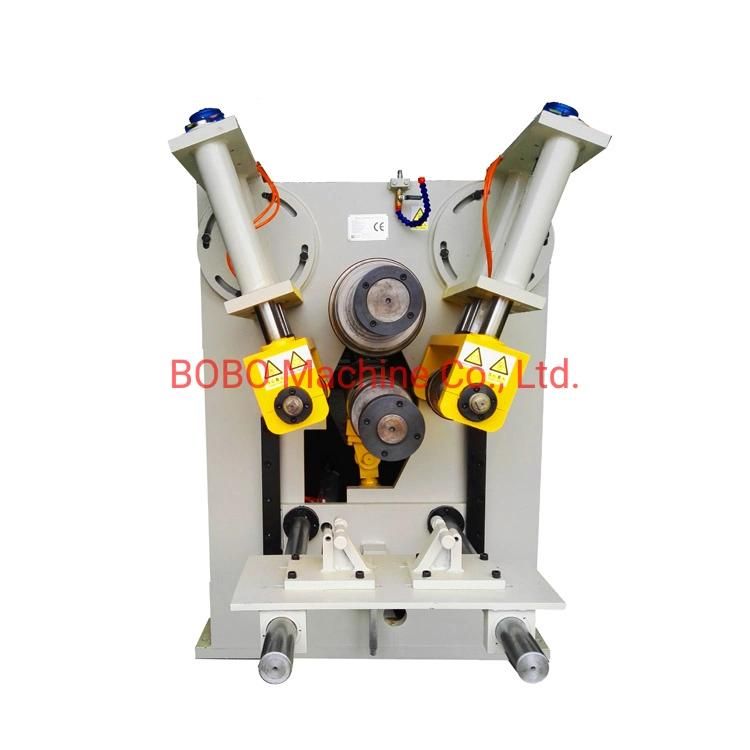

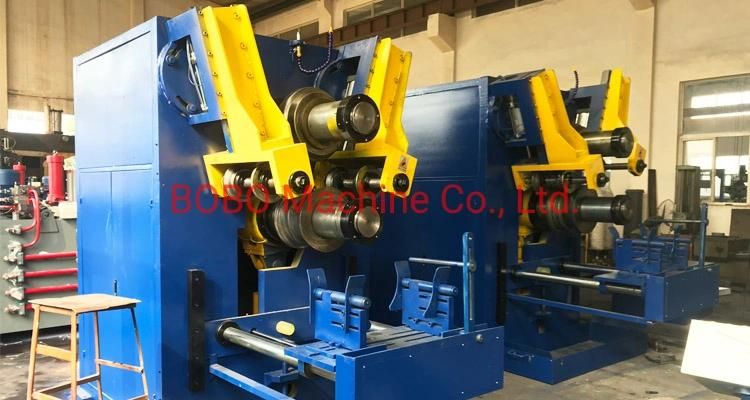

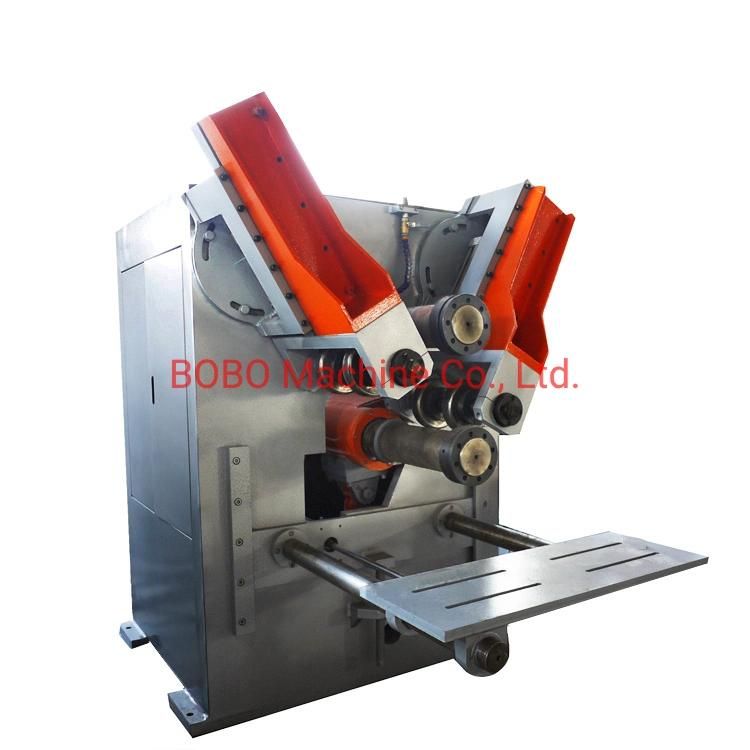

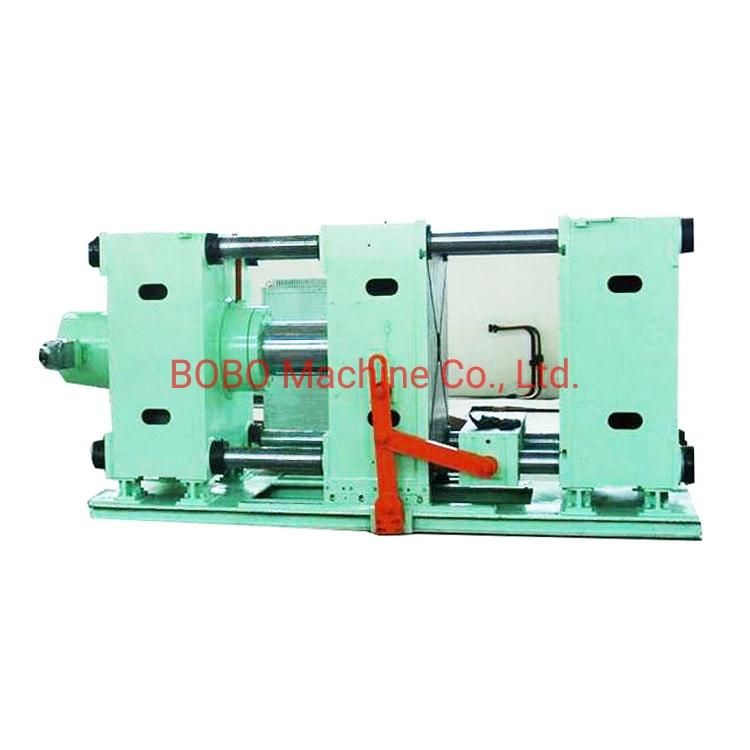

Tractor wheel roll former

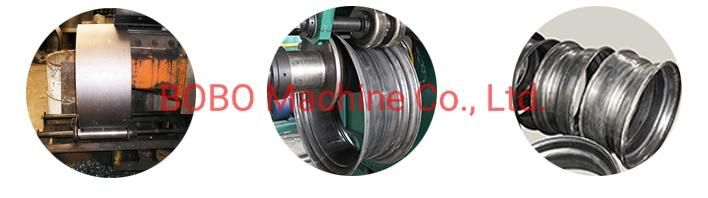

Rotary roll forming is a cold forming process where profiles are formed in straight side cylinders or rings, The blanks is roll-formed between upper and lower dies which are mounted on two horizontal spindles. The rim profile is gradually formed while the dies and the blank are rotated.

Diameter range of wheel rim	22.5-38"
Width of wheel rim	7.5" -20"
Thickness of material	6mm
Diameter of top roller	235 0 -0.02
Diameter of bottom roller	145 0 -0.02
Max. section of main roller	250mm 2
Main roller loading	2300KN/ 500KN (STILL)
Productivity	About 800-1200 pics/shift
Spindle speed (bottom roller)	340 rpm
Work precision	0.01mm
Control system	PLC
Power	168.5KW
Dimenson	2200X2750X2420mm
Weight	About 11.5ton
