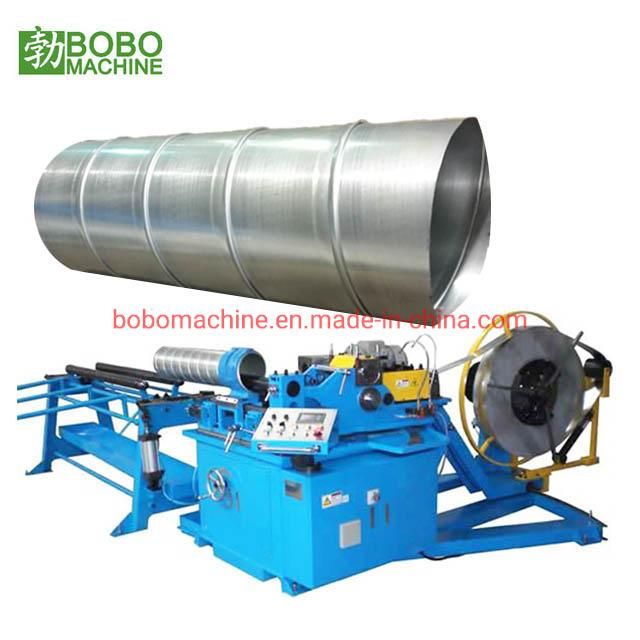

• Model NO.：BTF-1500C
• Advantage：Simple Structure
• Condition：New
• Certificate：CE
• Diameter Range：150mm ~ 1400mm.
• Max. Tube Length：8000mm
• Thickness Range：0.6-1.0mm
• Strip Speed：1~35m,Min, Adjustable
• Corrugations：Single,Double,Optional
• Weight：2500kg
• Main Motor：11kw
• Hydraulic Power：4kw
• Colour：Customized
• Transport Package：Wooden Package
• Specification：CE
• Trademark：BOBO
• Origin：China
• HS Code：8455229090
• Production Capacity：2 Sets,Month

Basic Info.

Model NO. BTF-1500C Advantage Simple Structure Condition New Certificate CE Diameter Range 150mm ~ 1400mm. Max. Tube Length 8000mm Thickness Range 0.6-1.0mm Strip Speed 1~35m/Min, Adjustable Corrugations Single,Double,Optional Weight 2500kg Main Motor 11kw Hydraulic Power 4kw Colour Customized Transport Package Wooden Package Specification CE Trademark BOBO Origin China HS Code 8455229090 Production Capacity 2 Sets/Month

Product Description

II Main technical data
2.1 Diameter of round tubes: 150mm ~ 1400mm.
2.2 Max. Tube length: 8000mm.
2.3 Thickness of strip: 0.6 ~ 1.0mm
2.4 Width of strip: 137mm ~ 140mm
2.5 Strip speed: 1~35m/min, adjustable
2.6 Suitable strip material: Aluminum, stainless steel, galvanized steel, color coated steel, etc.
2.7 Weight: 2500kg
2.8 Power of main motor: 11kw
2.9 Power of hydraulic motor: 4kw
2.10 Power of cooling water pump motor: 125W
2.11 Power of material feeding motor: 125W
