Colo Manual Electrostatic Powder Coating Spray Equipment
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Coating Spray Gun
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：COLO-800D-L2-B
- Condition：New
- Brand：Colo
- Packaging：Carton,Wood Case
- Delivery：1-3 Working Days After Payment
- Name：Electrostatic Powder Coating Spray Equipment
- Power Range：220V,110V Customized
- Packing Size：69*56*52cm
- Product：Electrostatic Powder Coating Spray Equipment
- Model：Colo-800d-L2-B
- Item：Electrostatic Powder Coating Spray Equipment
- Transport Package：Carton
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：1000sets,Month
Description

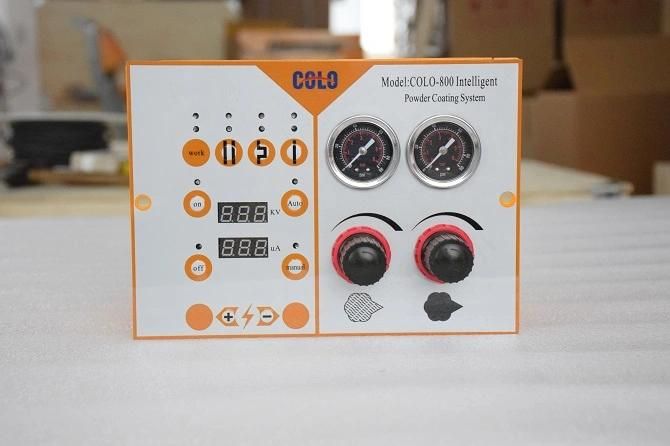

2.also with 3 auto models which is factory set, when you coat corners or flat parts, or need re-coating, just press the 3 buttomFlat model: coating flats parts. Corner model: specially coating corners of workpieceRecoat model: .repeatly coating.

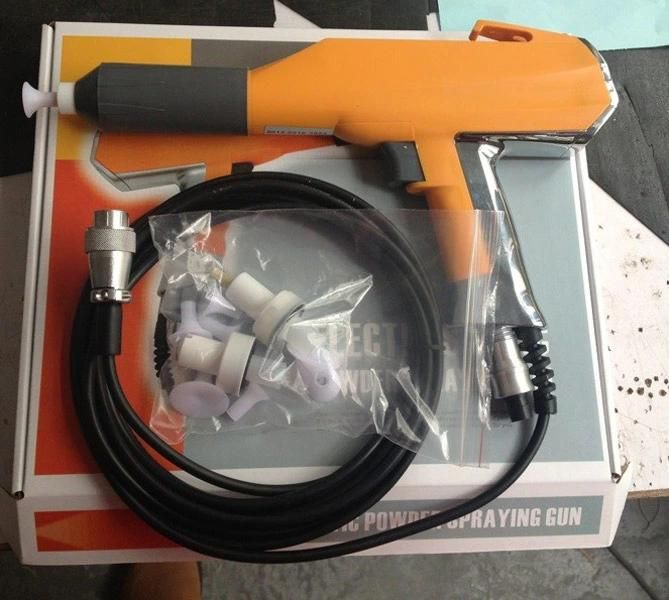

COLO-06 Spray Gun, light and portable for use.

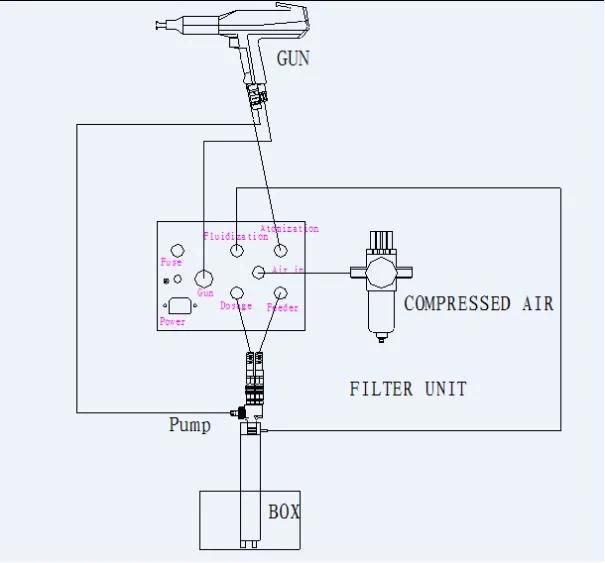

The connection of the gun of COLO-800D-L2-B Powder Coating Equipment
Specification of COLO Manual Electrostatic Powder Coating Spray Equipment
Electrical Data
| MODEL | COLO-800D-L2-B |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |
More details, contact with us
