Finishing System Powder Recovery Booth
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Powder Coating Booth
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：FF-2152
- Condition：New
- Size：2X1.5X2.1m
- Kind：Tunnel Powder Coating Booth
- Power(W)：3.5kw
- Voltage：110V,380V
- Weight：300kg
- Booth Material：Galvanized Steel, Coated Steel, PVC
- Dilivery：15 Work Days
- Export：Global
- Transport Package：Export Packaging
- Specification：2500x2300x1500
- Trademark：F&F
- Origin：Zhejiang Hangzhou
- HS Code：8417809090
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. FF-2152 Condition New Size 2X1.5X2.1m Kind Tunnel Powder Coating Booth Power(W) 3.5kw Voltage 110V/380V Weight 300kg Booth Material Galvanized Steel, Coated Steel, PVC Dilivery 15 Work Days Export Global Transport Package Export Packaging Specification 2500x2300x1500 Trademark F&F Origin Zhejiang Hangzhou HS Code 8417809090 Production Capacity 50sets/MonthProduct Description

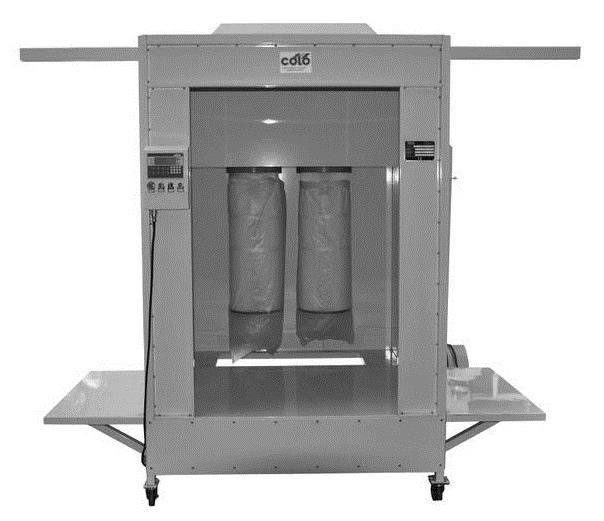

FF-S-2152 Finishing System Powder Recovery BoothAdvantages
1.new design type of powder booth, with two side doors open and closed to realize diferent function.
2. Affordable, reliable and durable
3. Advanced powder coating technology. Quick color changes,
4. Efficient use of the coating material
5. Compliance with important industry standards
When the two side doors close, it is a nomal closed manual booth, can be used for coating small work-pieces, with 2 filters for powder recycling.
When the two side doors open, it can be used for longer work-piece, which is moved a comveyor.
Specifications:
| Model | COLO-S-2152 |
| Booth Type | Closed-drive-thru |
| Operator dimensions | 1400width x 1800 height x 1000 depth |
| Overall dimensions | 2500width x 2300 height x 1500 depth |
| Weight | 450kg |
| Power supply | Electric |
| Nominal power | 3.5kW |
| Voltage | 380V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 2 |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 10,200m3/h |
| Warranty | 12 months |

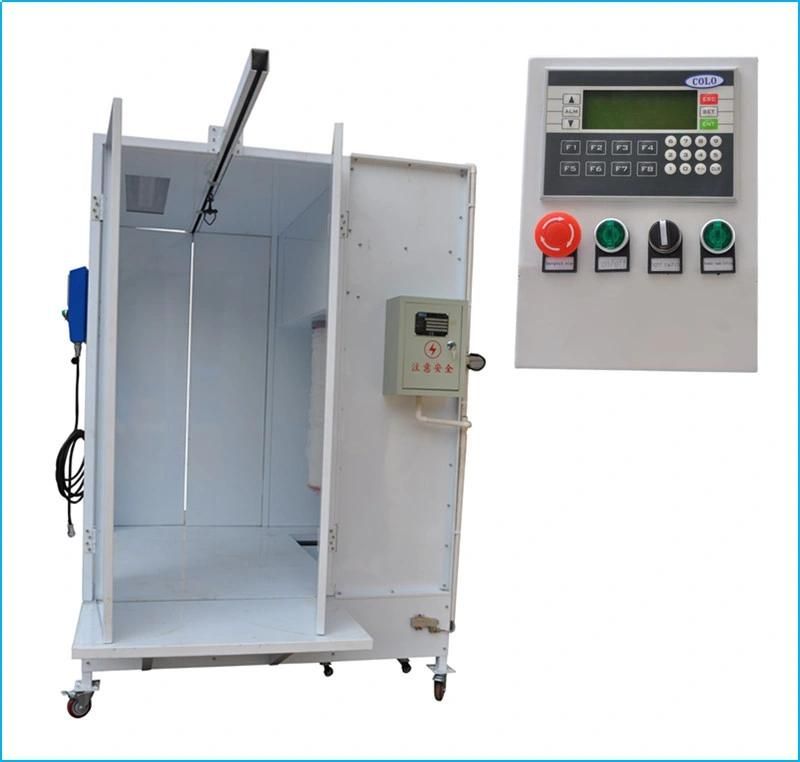

PLC Control Panel

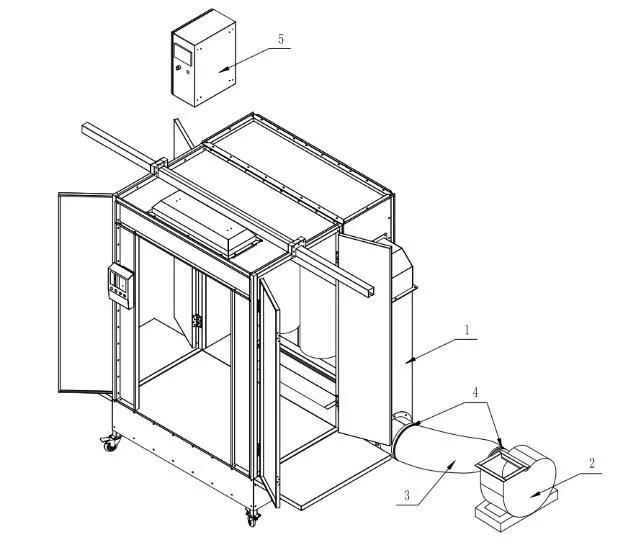

Drawing & Component
1 Booth Chamber
2 Fan Motor
3 Air Tube
4 Hoop
5 Electrical Cabinet
Spare parts.
