• Model NO.：COLO-3210
• Condition：New
• Model No.：Colo-3210
• Inner Size：2000 Width X 1900 Height X 3100 Depth
• Warm-up Time：10-15mins
• Temperature：180-250 Degrees
• Heater：Italy Riello, 100, 000cal
• Motor Power：1.5kw
• Material：Steel , Galvanized,Stainless
• Delivery：20 Work Days
• Service：Engineer Oversea
• Transport Package：L*W*H
• Specification：L*W*H
• Trademark：F&F
• Origin：Zhejiang, China (Mainland)
• HS Code：842499990
• Production Capacity：50sets,Month

Basic Info.

Model NO. COLO-3210 Condition New Model No. Colo-3210 Inner Size 2000 Width X 1900 Height X 3100 Depth Warm-up Time 10-15mins Temperature 180-250 Degrees Heater Italy Riello, 100, 000cal Motor Power 1.5kw Material Steel / Galvanized/Stainless Delivery 20 Work Days Service Engineer Oversea Transport Package L*W*H Specification L*W*H Trademark F&F Origin Zhejiang, China (Mainland) HS Code 842499990 Production Capacity 50sets/Month

Product Description

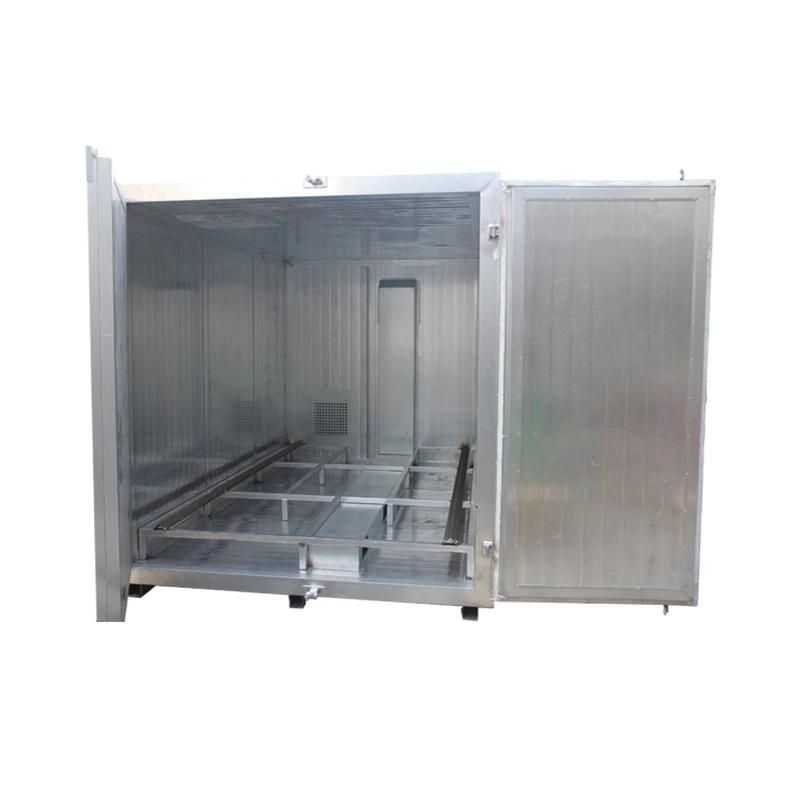

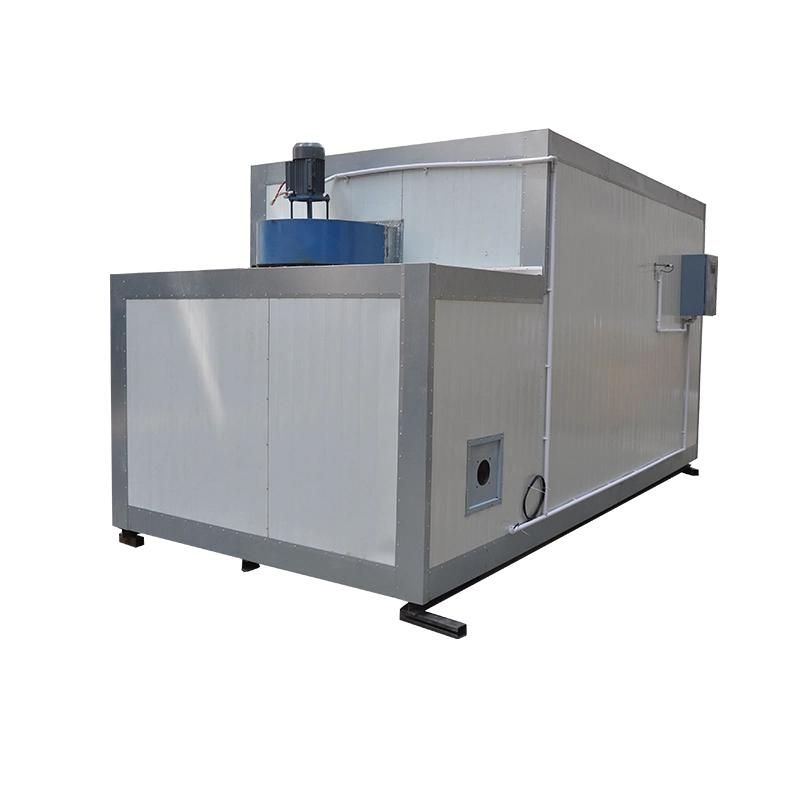

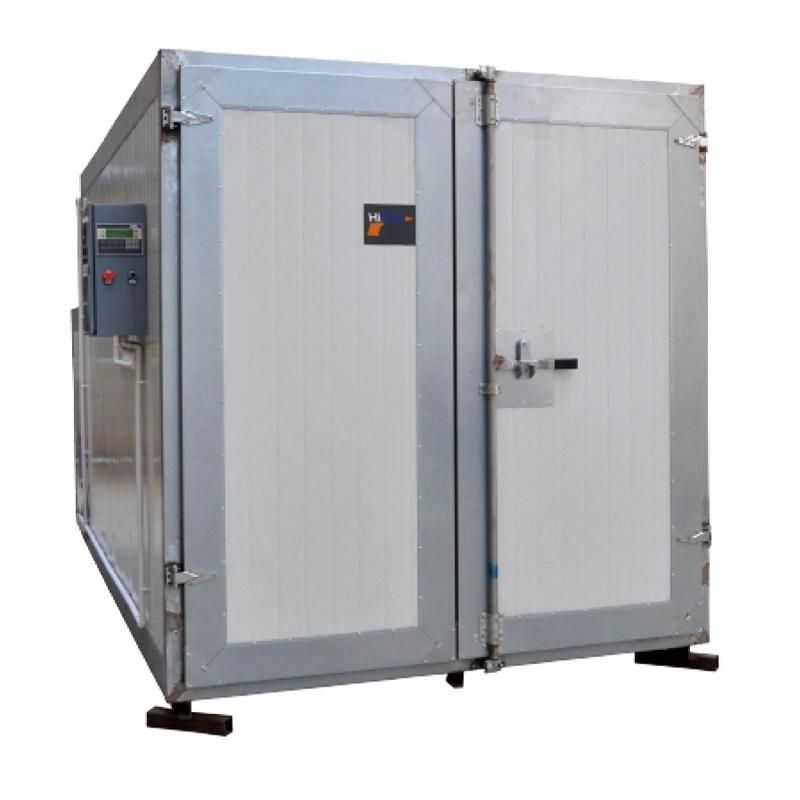

Diesel Fired Powder Coating Curing Oven for Furniture


Working size(mm): 2000 width x 1900 height x 3100 depth
Heating source: GAS/LPG/Diesel

We believe this is the best selling powder and wet paint cure oven, with hundreds of our ovens being used throughout the world. The success of this oven is down to the superb design and our high quality construction process. The design of our ovens has been perfected over many years supplying the powder coating industry. Customers in many countries are currently using our ovens.







The feature as follow:

1,Precise temperature control, furnace tolerance of +/- 5 degrees Celsius. Indirect heating
system with a heat exchanger

2,Hot air is transferred from the bottom up.

3,Heat exchangers used in seamless steel tubes 8x8 array, use the combustion liner 310S
stainless steel seamless pipe thickness of 3-4mm.

4,Closed-round clean efficient heat circulation system

5,   indirect fired heaters,which deliver clean, breathable heated air to the desired location. Directfired heaters do not filter many of the combustible and toxic fumes producedwith the heated air.

Our advantagies:

1, F&F powder coating ovens are designed to safely and efficiently cure previously applied powder coating media

2, Our energy-efficient designs save fuel and get to temperature quickly

3,Standard and custom sizes range from small Lab units to large heavy equipment ovens and conveyorized curing systems.

4, All our batch powder coating ovens feature premium 100mm thick insulated wall and roof panels.

Techinical Data:

Model	colo-3210
Worksize dimensions	2000 width x 1900 height x 3100 depth
Overall dimensions	2200 width  x 2200 height x 3300 depth
Power supply	LPG/Gas/Diesel
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3.0-6°C
Temperature max.	250° C
Transport	including trolley
Burner	Two stage fire, Italy Riello, 20,0000cal
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation performance	8288-16576m3/h
Motor power	3kW
Warranty	12 months

 Welcome to contact us !

Luna
