Metallic Processing Machinery

Creator The Manufacturer of Znc Electrical Discharge Machining

Creator Industry (Suzhou) Co., Ltd.
  • Table Travel ( X,Y,Z Axis ):600*500*220mm
  • Worktable Dimension (L*W):900*500mm
  • Work Tank Inner Dimension:1460*866*502mm
  • Max Electrode Weight:75kg
  • Max. Workpiece Weight:1500kg
  • Machine Dimension:2650*1900*2300

Base Info

  • Model NO.:cj560 cr5c
  • Machine Weight:1950kg
  • Machine:Die Sinking EDM
  • Transport Package:Wooden Case
  • Specification:CJ560 CR5C
  • Trademark:LEAD
  • Origin:Suzhou China
  • Production Capacity:80 Sets,Month

Description

Basic Info.

Model NO. cj560 cr5c Machine Weight 1950kg Machine Die Sinking EDM Transport Package Wooden Case Specification CJ560 CR5C Trademark LEAD Origin Suzhou China Production Capacity 80 Sets/Month

Product Description

CREATOR the manufacturer of znc electrical discharge machining

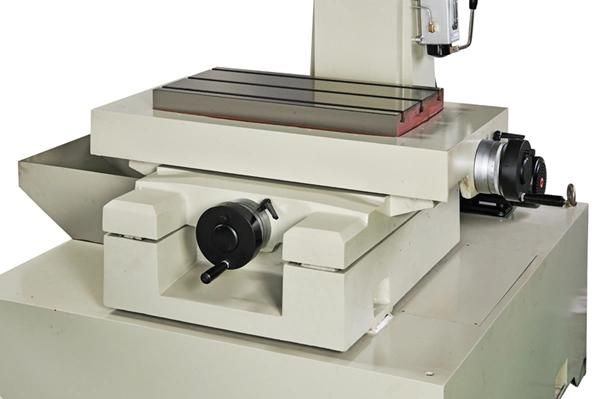

Main Unit Features:
1. CAD design and high precision structure.
2. FC-30 casting made from Furan No-Bake Molding system.
3. Base, Saddle, Column and Spindle are made by synchronous boring to keep the
Highest precision.
4. Horizontal pump made in Denmark.
5. Movement surface with TRUCITE.
6. X and Y axes are constructed with V-Shape and Flat sideways
7. High precision and strength Quill assures excellent eroding
8. Hardness heat treatment and high precision grinding worktable assures
Structure precision and life.

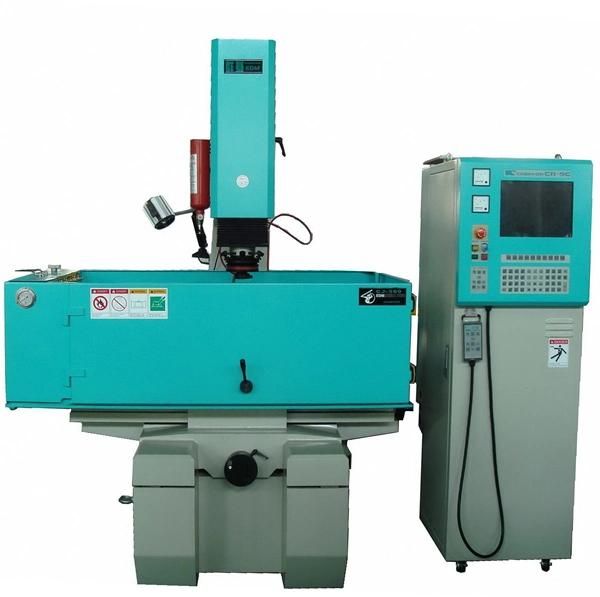

(die sinking edm)


Controller box features:
1. Pentium PC-base CNC controller(CR5C).
2.15 inch color monitor(CR5C).
3. Dialogue Operation Box(CR5C)
4. Z axis automatic touch touch and reset zero function(CR5C).
5. Digital control panel with 3 axes digital display(CR5).
6. Ten groups of eroding parameters in the memory mode.
7. Ten-step depth eroding parameters from rough to fine finish.
8. Automatic save eroding parameters after electricity power off.
9. ARC prevention system.
10. Alarms system can indicate what the alarm happens and stop the machine to prevent from the damages.
11. Special electrical circuit design for mirror finish, and cutting tungsten carbide.

Standard Accessories
1. Automatic fire extinguisher
2. Halogen lamp
3. Filters
4. Magnetic nozzles set
5. Drill Chuck
6. Tool box and kit.

Specifications:
Model
CJ560
Table travel(X axis)mm600
Table travel(Y axis)mm500
Quill travel(Z1 axis)mm280
Work head travel(Z2 axis)mm220
Work table dimensions(LxW)mm900x500
Work tank inner dimensions(WxDxH)mm1460x866x502
Max. capacity of dielectric fluidLiter865
Max. electrode weightkg75
Max. workpiece weightkg1500
Machine unit dimensions(WxDxH)mm2650x1900x2300
Machine unit weightkg1950
