Creator Cj235 Economic Electrical Discharge Machining
Creator Industry (Suzhou) Co., Ltd.- X Axis Travel：350mm
- Y Axis Travel：250mm
- Z Axis Travel：200mm
- Work Head Travel：170mm
- Work Table Size：600*320mm
- Work Tank Inner Dimentions：826*552*344mm
Base Info
- Model NO.：CJ235 CR2 30A
- Max. Capacity of Oil Tank：500litre
- Max.Electrode Weight：50kg
- Max.Workpiece Weight：500kg
- Machine Size/Weight：1200*1400*2100mm,1000kg
- Transport Package：Wooden Case
- Specification：CE & ISO9001
- Trademark：Lead
- Origin：Suzhou Jiangsu Province, China
- HS Code：8456301090
- Production Capacity：35 Sets, Month
Description
Basic Info.
Model NO. CJ235 CR2 30A Max. Capacity of Oil Tank 500litre Max.Electrode Weight 50kg Max.Workpiece Weight 500kg Machine Size/Weight 1200*1400*2100mm/1000kg Transport Package Wooden Case Specification CE & ISO9001 Trademark Lead Origin Suzhou Jiangsu Province, China HS Code 8456301090 Production Capacity 35 Sets/ MonthProduct Description

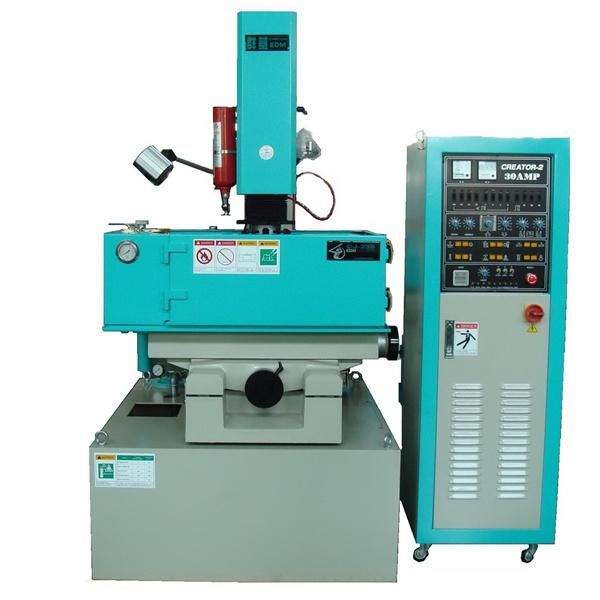

CREATOR CJ235 economic electrical discharge machiningBrief Introduction:

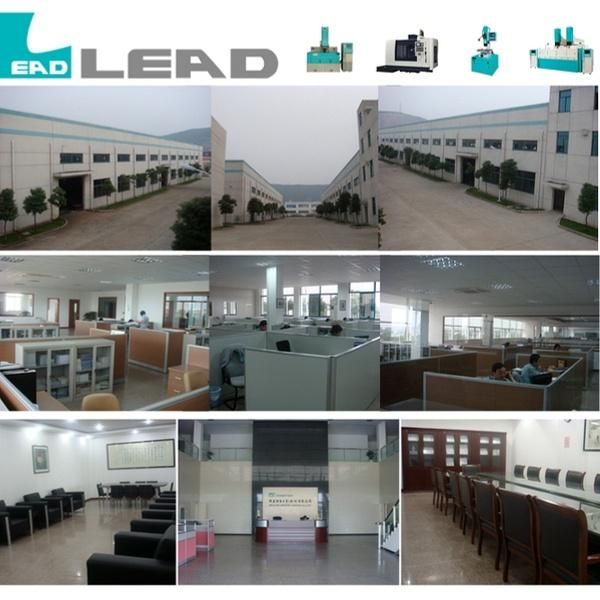

Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.

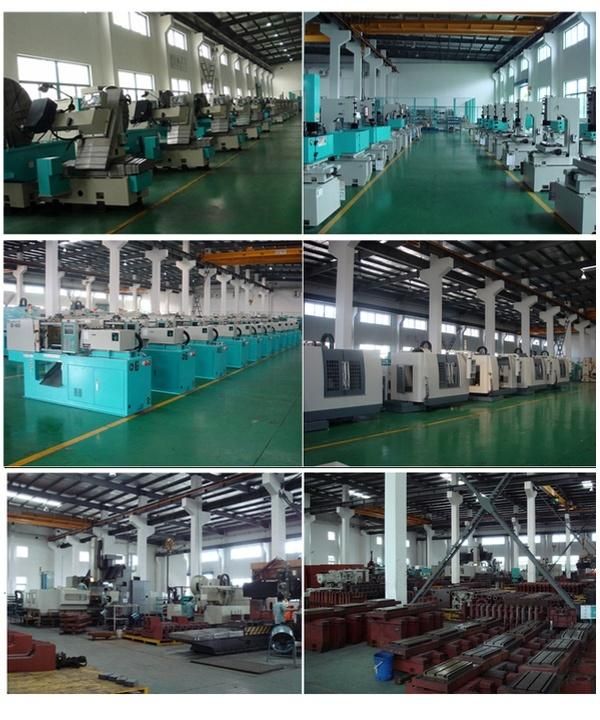

2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.
Features:
1. CAD design and high precision structure.
2. FC-30 casting made from Furan No-Bake Molding system.
3. Base, Saddle, Column and Spindle are made by synchronous boring to keep the
Highest precision.
4. "GRUNDFOS" horizontal pump made in Denmark.
5. Movement surface with TRUCITE.
6. X and Y axes are constructed with V-Shape and Flat sideways
7. High precision and strength Quill assures excellent eroding
8. Hardness heat treatment and high precision grinding worktable assures
Structure precision and life.
Standard Accessories:
1. Automatic fire extinguisher
2. Halogen lamp
3. Filters
4. Magnetic nozzles set
5. Drill Chuck
6. Tool box and kit.
Parameters:
| Model No. | CJ235 CR2 30A |
| X/Y/Z axes travel | 350/250/200mm |
| Processing head | 170mm |
| Worktable size | 600*320mm |
| Worktank inner size | 826*552*344 |
| Max capacity of oil tank | 500L |
| Max electrode weight | 50kg |
| Max workpiece weight | 500kg |
| Machine size | 1200*1400*2100 |
| Machine weight | 1000kg |
