• Model NO.：Comflex
• Forming Type：Mechanical , Hydraulic , Elastomer
• Hose Application：Natural Gas and Water Hose
• Size Range：Dn8 to 50mm
• Wall Thickness：0.15-0.3mm
• Production Speed：2.5~3.5m,Min
• Using Strip Thickness：0.18-0.3mm
• Using Strip Material：SUS304, 321 and 316L
• Power：4-7kw
• Transport Package：Wooden Box with Tray
• Specification：55-120MM
• Trademark：wuxi longterm
• Origin：China
• Production Capacity：5000set,Year

Basic Info.

Model NO. Comflex Forming Type Mechanical / Hydraulic / Elastomer Hose Application Natural Gas and Water Hose Size Range Dn8 to 50mm Wall Thickness 0.15-0.3mm Production Speed 2.5~3.5m/Min Using Strip Thickness 0.18-0.3mm Using Strip Material SUS304, 321 and 316L Power 4-7kw Transport Package Wooden Box with Tray Specification 55-120MM Trademark wuxi longterm Origin China Production Capacity 5000set/Year

Product Description

 1. Machine description
Our crimping machines can be used for 1/4'' to 12'' composite hoses, rubber/hydraulic hoses and PTFE hoses etc...

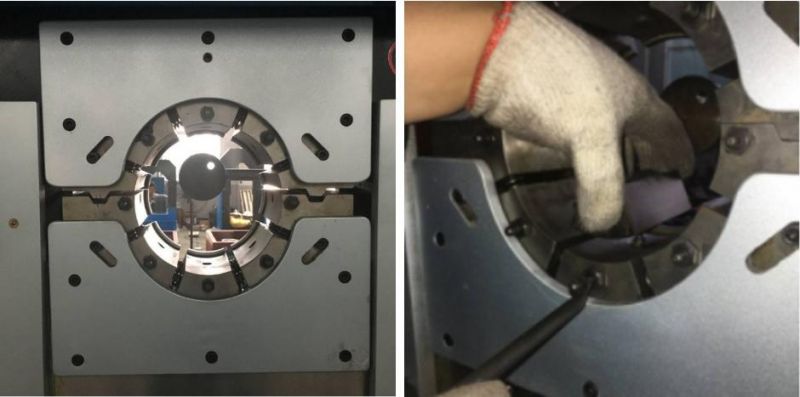

Our machines are equipped with PLC touch screen(Siemens), foot switch and quick-assembly toolings. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. This machine features are as below:
* High accuracy
* Strong force(up to 1000 tons)
* Low noise
* Easy operate with PLC and touch screen

. Machine details

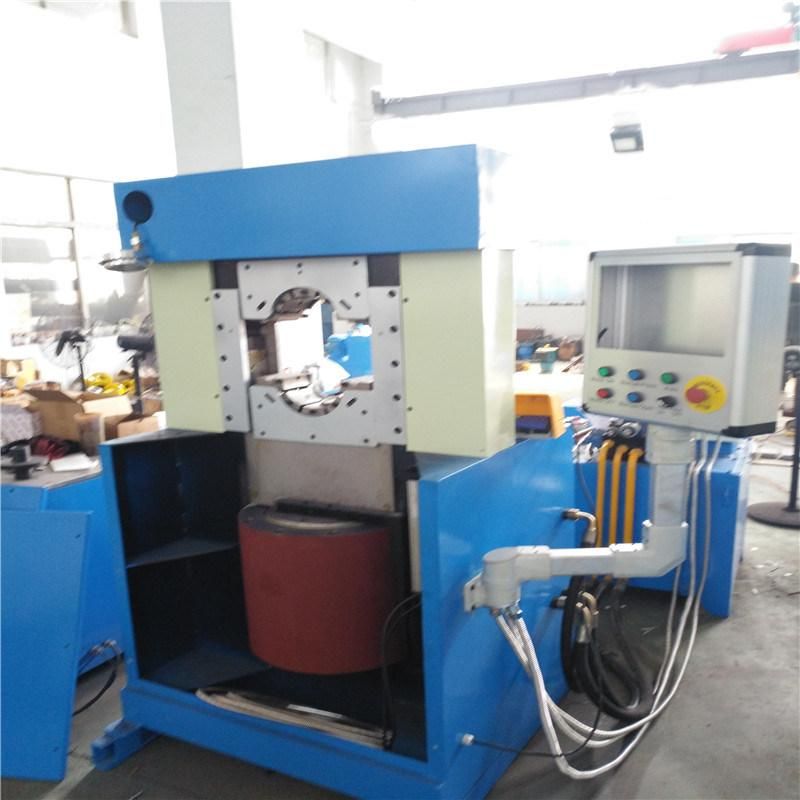

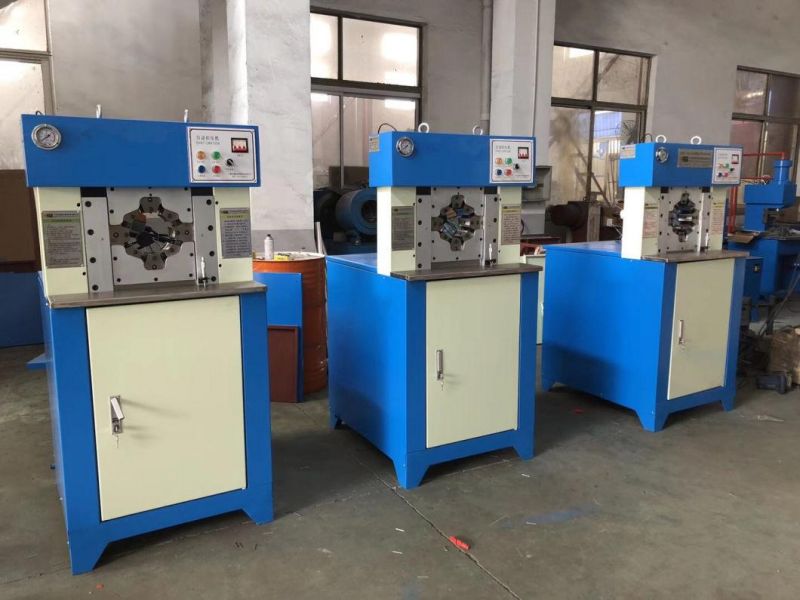

A. 1/4'' - 3'' hose crimping machine
(1) Crimping range: 4mm-116mm
(2) Max. Opening with die set: 220mm
(3) Max. Opening without die set: 260mm
(4) Max. Crimping length: 116mm
(6) Max. crimping force: 350Tons
(8) Operation type: Manual, automatic and foot switch(foot switch should connect to both manual
and auto and should be controlled by a rotary switch)
(9) Control type: 12'' movable industrial digital display, and micrometer caliper
(10) Max. oil pressure: 28Mpa
(11) Motor power: 5.5KW
(12) The machine is completely with a mould rack with clear marks of size.
(13) Weight: 2.2 Tons
(14) Estimated Dimension:(L*W*H): 1180*950*2000mm
(15) Other supporting device: Hydraulic power unit; holding pressure control; return control; water
cooling device

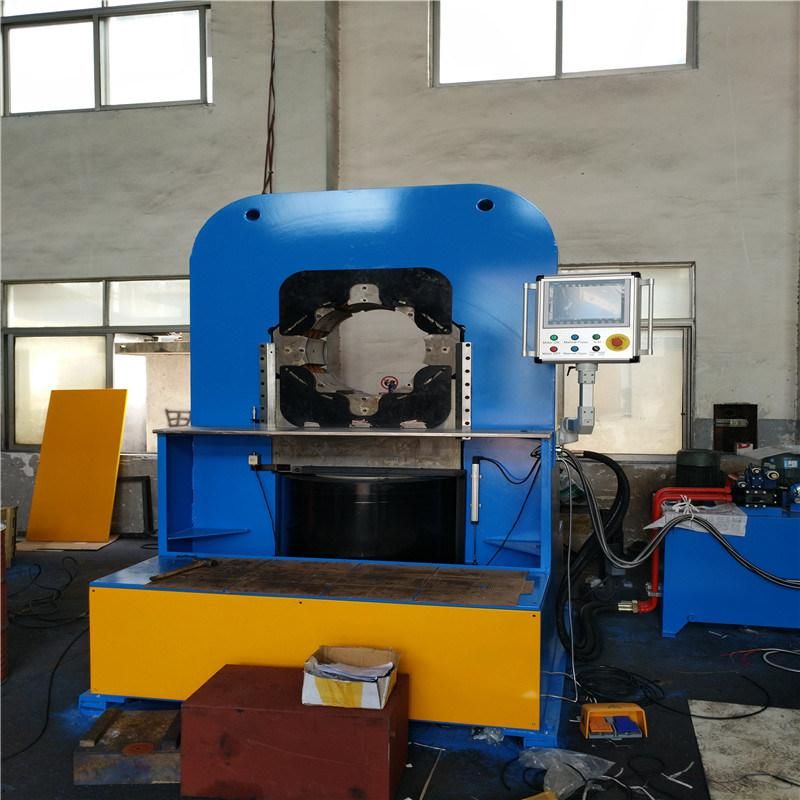

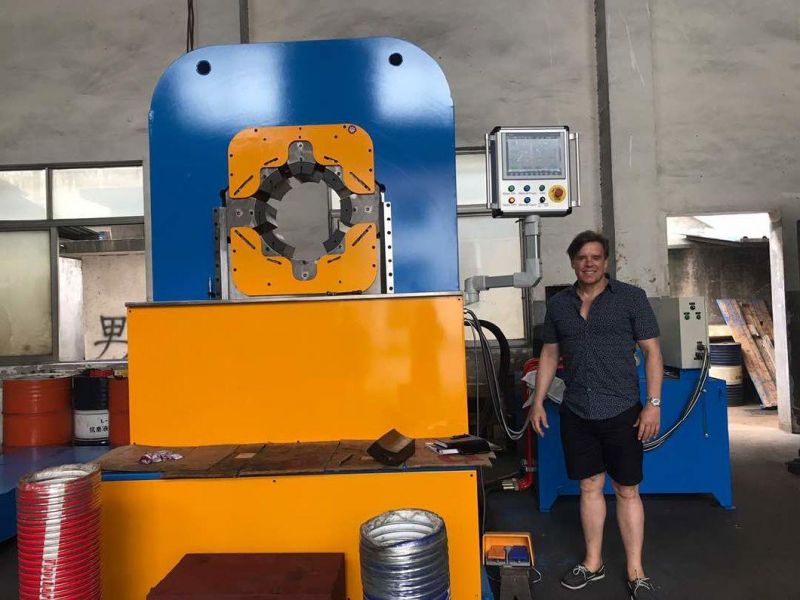

B. 3'' - 12'' hose crimping machine
(1) Crimping range: 84mm-410mm
(2) Max. Opening with die set: 500mm
(3) Max. Opening without die set: 590mm
(4) Max. Crimping length: 285mm
(6) Max. crimping force: 1000Tons
(8) Operation type: Manual, automatic and foot switch(foot switch should connect to both manual
and auto and should be controlled by a rotary switch)
(9) Control type: 12'' movable industrial digital display, and micrometer caliper
(10) Max. oil pressure: 28Mpa
(11) Motor power: 22KW
(12) The machine is completely with a mould rack with clear marks of size.
(13) Weight: Machine body: 8-9 Tons, hydraulic station 1.5 Tons
(14) Estimated Dimension:(L*W*H): 1850*1850*3080mm
(15) Other supporting device: Hydraulic power unit; holding pressure control; return control; water
cooling device



5. RFQ
Q: Why choose us?
A: We are most professional manufacturer with more than 25 years of experience.
Q: What size can you make?
A: All the sizes from 1/4'' up to 12'' can be made on different machines.
Q: What is the application for the crimping machine?
A: Composite hoses, rubber hoses, hydraulic hoses, PTFE hoses etc...

We need to know following information to quote you correct machineries:
1. Size range you want to crimp
2. The application of the hose
3. Wall thickness of the hoses
4. Information of the fittings
