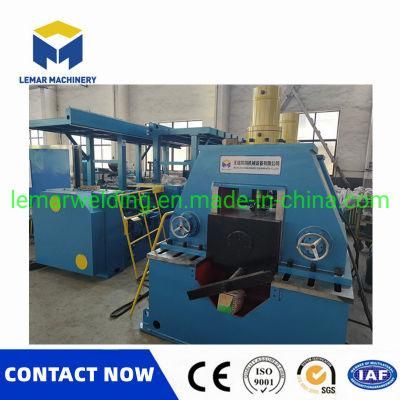

40mm Thickness Beam Steel Structure Flange Hydraulic Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Usage：H Beam Flange
- Voltage：380-440V
- Automatic Grade：Automatic
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：JZJ-40S
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic
- Max Flange Thickness：40mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-800mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：≥8.9m,Min
- Delivery：45 Days

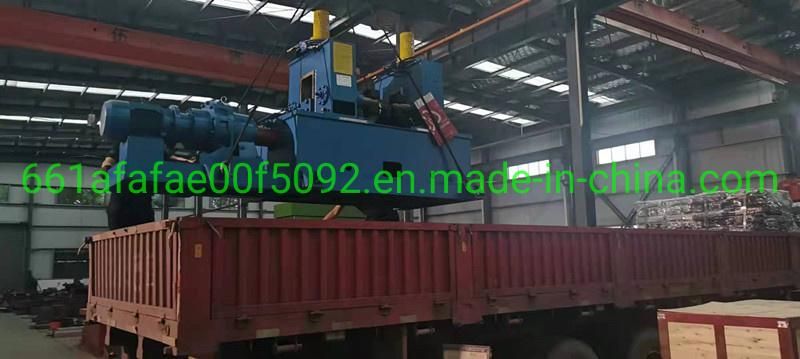

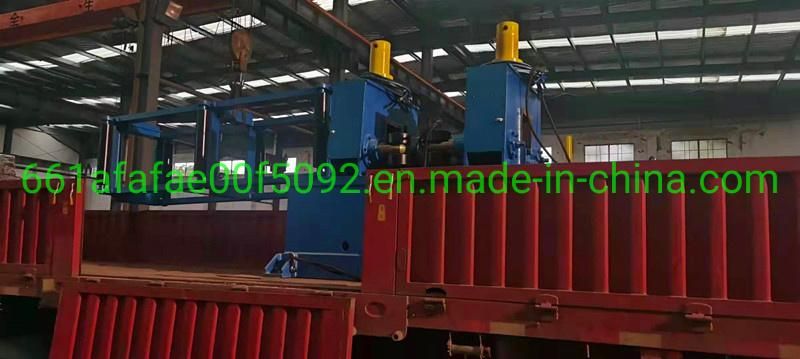

- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
H beam 40mm flange thickness straightening machine mainly corrects the welding deformation of the flange plate.

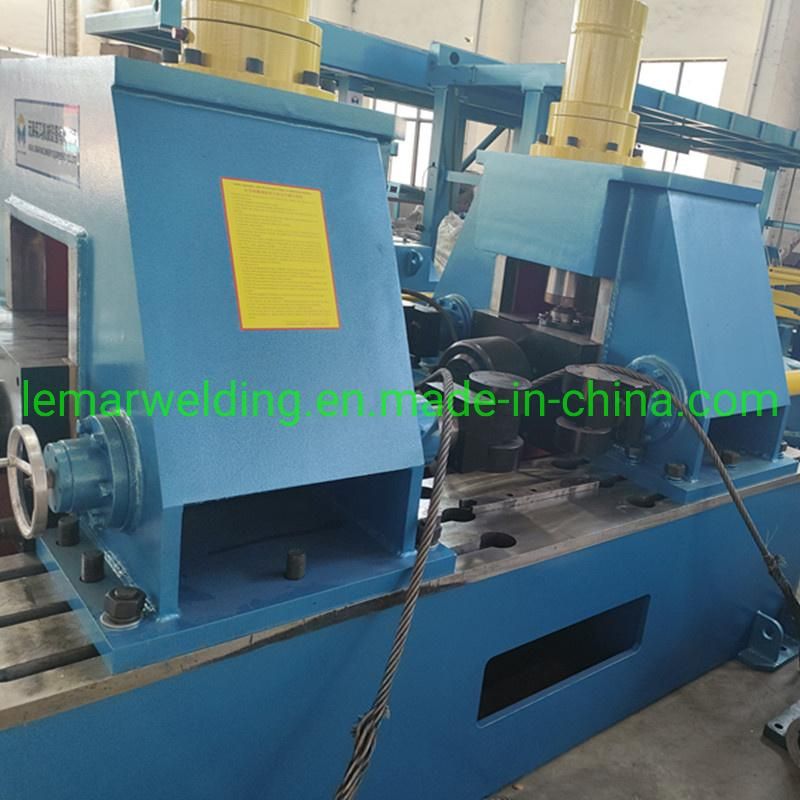

The equipment forms a correction hole by adjusting the position of the hydraulic pressure roller, and a motor reducer drives the main transmission wheel to drive the H-beam forward for hydraulic correction.
Since the deformation caused by welding is different on both sides, the two groups of hydraulic straightening rollers can be pressed down at the same time or separately, which is convenient for operation.
Specification:

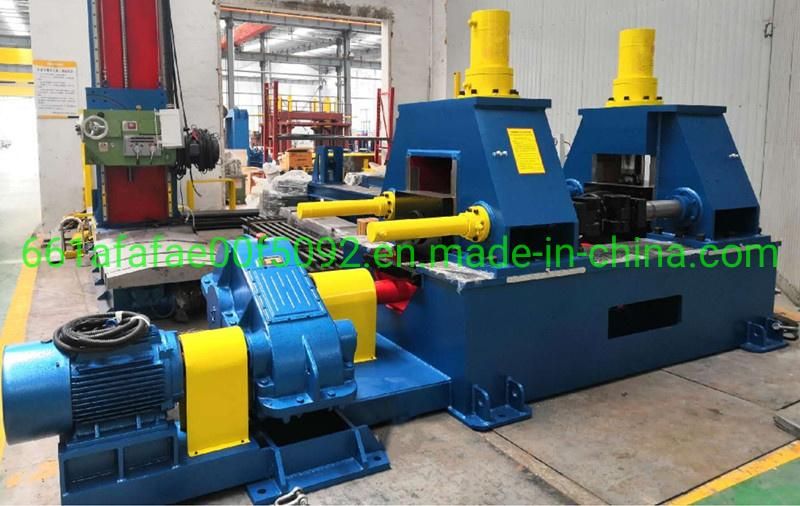

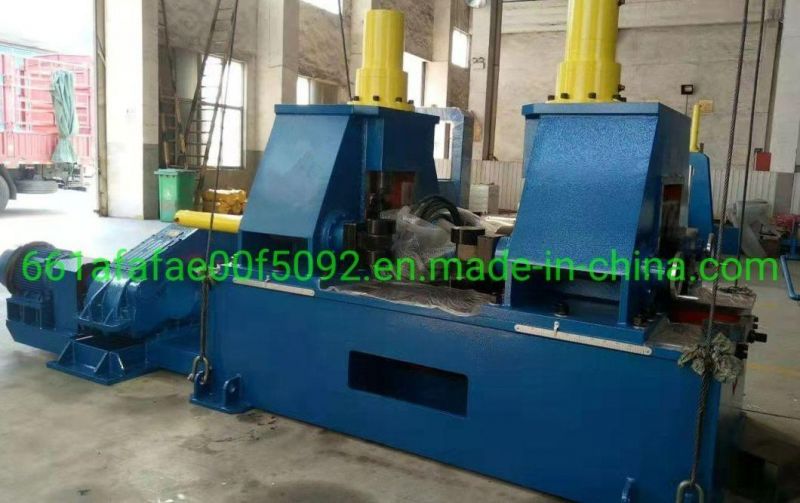

This machine is mainly composed of base, upper frame, main drive roller, drive motor reducer, input roller table, output roller table, hydraulic straightening roller device, electric control system, etc.
Why choose lemar?
1. Strong R & D and design team, professional technical guidance, let customers worry and rest assured
2. High -quality after -sales team allows you to be solved in time when encountering technical problems, which will not affect your efficiency of processing and production of H -shaped steel box beams
3. One -stop equipment supply.
4. Many years of export experience, our machine exports to UK, USA, Russia, India, Dubai, Vietnam, Malaysia, Greece, Brazil, Bulgaria, ETC.
The equipment forms a correction hole by adjusting the position of the hydraulic pressure roller, and a motor reducer drives the main transmission wheel to drive the H-beam forward for hydraulic correction.
Since the deformation caused by welding is different on both sides, the two groups of hydraulic straightening rollers can be pressed down at the same time or separately, which is convenient for operation.
Specification:This machine is mainly composed of base, upper frame, main drive roller, drive motor reducer, input roller table, output roller table, hydraulic straightening roller device, electric control system, etc.
