• Model NO.：OURS-2014-3
• Power：50kw-200kw
• Warranty：1 Year
• Size：as Per The Client
• Transport Package：Standard Container
• Specification：CE, SGS, ISO
• Trademark：jsours
• Origin：China(Mainland)
• HS Code：8424300000
• Production Capacity：6-7 Sets,Year

Basic Info.

Model NO. OURS-2014-3 Power 50kw-200kw Warranty 1 Year Size as Per The Client Transport Package Standard Container Specification CE, SGS, ISO Trademark jsours Origin China(Mainland) HS Code 8424300000 Production Capacity 6-7 Sets/Year

Product Description

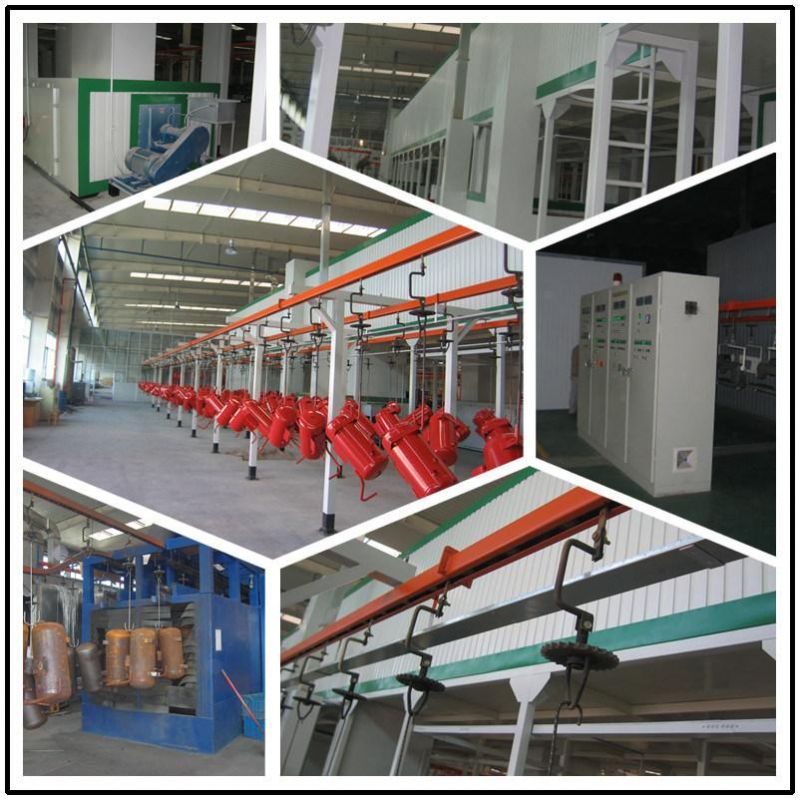

Electrostatic Fluidized Bed Powder Coating/Dipping Line
Product description:
1. Operation under normal temperature
2. Simple structure with high performance
3. Highly efficient process automation
 Operating principle: The powder on the body of fluidized bed is set of electrode connected with high voltage and negative electrode of high-voltage electrostatic generator. When the electrode connects with a certain amount of negative voltage, it will produce corona discharge. And the fluidized powder near the electrode will catch the electron to be the powder particles with negative charge which will be adsorbed on the surface of the workpiece with positive charge, afterwards those powder particles will be heated and solidified to be the uniform coating.
Main parts of the full line:
1.Pretreatment device
2.Powder coating gun
3.Electrostatic control equipment
4.Powder supplying system
5.Recovery system
6.Powder coating booth
7.Auxiliary systems


No.	Item	Description
1	Voltage	60-90 KV
2	Power	10-20μA
3	Velocity pressure	0.30-0.55 MPa
4	Atomizing pressure	0.30-0.45 MPa
5	Pressure for cleaning the gun	0.5MPa
6	Fluidization pressure of powder-supplying barrel	0.04-0.10 MPa
7	Space between the spraying mouth and the workpiece	150-330mm
8	Speed of conveying chain	4.5-5.5m/min

*Buyer Feedback:
We are professional in electrophoretic painting line project as customized. To provide you more details and quotation, would you pls let me know the following information:
1. What is the max. and min. size of workpiece? Would you pls send us some pictures?
2. What is the max. weight of  the workpiece?
3. How many workpieces will you paint per day? How many working hours is it per day?
4. What is your available space for this coating line project?
5. What is the heating source?(Natural gas, LPG, diesel oil, electricity)
6. Do you need to change colors frequently?
7. What is the curing condition (180-200ºC in 15-20mins, or 200ºC in 10mins?)
8. What kind of pretreatment system do you use (spray pretreatment or dipping type)?
If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time.
