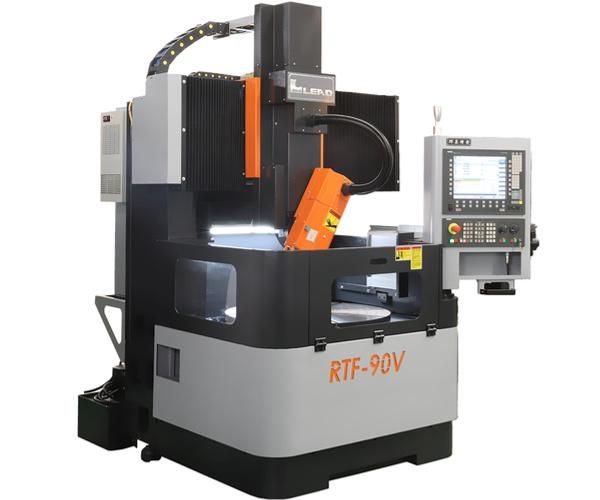

Creator Tyre Mold Making Machines
Creator Industry (Suzhou) Co., Ltd.- X Axis Stroke：600mm
- Z Axis Stroke：300mm
- C Axis Stroke：0-360 Degrees
- B Axis Stroke：±95 Degree
- Spindle：Hsk40e- 7.5kw- 30000rpm
- Worktable Size：Dia 900m
Base Info
- Model NO.：RTF90V
- T-Slot：8*18mm
- X Rapid Feed：10m,Min
- Z Rapid Feed：10m,Min
- Machine Weight：3200kg
- Transport Package：Wooden
- Specification：1780*1950*2750 mm
- Trademark：LEAD
- Origin：Suzhou
- HS Code：845710
- Production Capacity：50,Month
Description
Basic Info.
Model NO. RTF90V T-Slot 8*18mm X Rapid Feed 10m/Min Z Rapid Feed 10m/Min Machine Weight 3200kg Transport Package Wooden Specification 1780*1950*2750 mm Trademark LEAD Origin Suzhou HS Code 845710 Production Capacity 50/MonthProduct Description
CREATOR Tyre mold making machinesWHY CHOOSE US ?
1.WITH 30-YEAR HISTORY SINCE 1986 ESTABLISHED IN TAIWAN;
2.WE PRODUCE CNC MACHINE FOR SODICK
3.FANUC/MITSUBISHI/SIEMENS CONTROLLER OPTIONAL,
MACHINE CUSTOMIZABLE
ABOUT US:

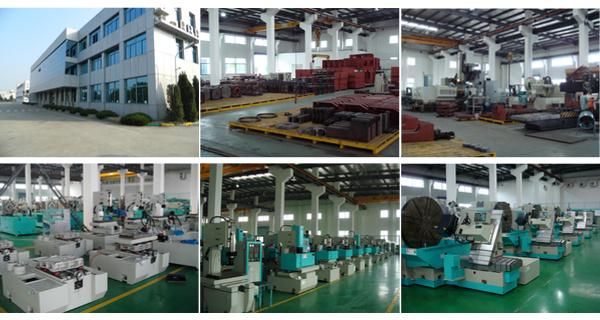

Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.
2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.
FEATURES
1: 4-AXIS SIMULTANEOUSLY
2. RTCP FUNCTION
3. ATC 12PCS
SPECIFICATION:
| Xtravel | 600mm |
| distance from spindle to worktable | 100-400 mm |
| Z travel | 300mm |
| C travel | 0°-360° |
| A travel | ±95° |
| Spindle | HSK40E-7.5kw-30000RPM |
| Worktable size | Φ900mm |
| Max loading size | Φ1000mm |
| T-slot | 8*18mm |
| Rapid feed | X:10m/min; Z:10m/min |
| Tool Magzine | ATC 12 (umbrella type) |
| Controller | Syntec 200MA/ SIEMENS 840D |
| Floor space | 1780*1950*2750 mm |
| Net Weight | 3200 kg |
