• Model NO.：round jet nozzle set 382922
• Transport Package：Carton
• Specification：1007683 powder spray gun electrode holder
• Trademark：COLO
• Origin：China
• Production Capacity：3000piece,Month

Basic Info.

Model NO. round jet nozzle set 382922 Transport Package Carton Specification 1007683 powder spray gun electrode holder Trademark COLO Origin China Production Capacity 3000piece/Month

Product Description

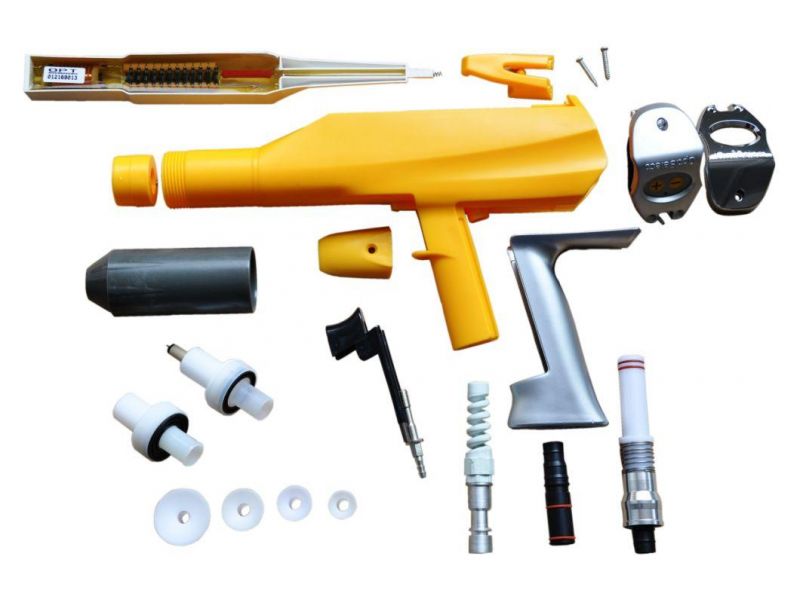

Spare parts for 1002100 powder gun

Cascade (negative polarity) - complete  1000 809
1  Gun body  1001 155
Grip - complete set (pos. 5, 6, 7 and 8)  1000 807
2  Trigger - complete (incl. pos. 3)  1001 341
3  Compression spring - 0,36x4,2x49,4 mm  1001 487
4  Trigger cover  1000 801
5  Grip  1000 806
6  Radial gasket  1000 803
7  Gun cable - L=2 m, complete  1006 096
Extension cable for gun cable - L=14m, incl. clamp  1002 162
Cable clamp for extension cable  1002 064
8  Grub screw - M3x8 mm  1000 844
10  Powder tube - complete  1001 339
10.2  O-ring - Ø 12x1.5 mm  1000 822
11  Rinsing air connection  1000 804
12  Clip ring  1000 898
13  Compression spring  1001 488
14  Hopper cover - complete  1000 617
14.1  Print holder - complete (incl. pos. 14.2)  1002 029
14.2  Radial gasket  1000 795
14.3  Gun holder plate - complete  1002 028
14.4  Cap screw - M3x8 mm (not shown)  202 363
15  Diffuser - complete (see corresponding spare parts list)
16  Mounting hook (exchangeable)  1000 877
17  Countersunk head screw - M 4x8 mm, plastic  263 516
18  PT-screw  1000 843
19  Threaded sleeve - complete  1000 948
20  Flat jet nozzle - complete  1000 047
20.1  Electrode holder - complete  1000 055
20.2  Flat jet nozzle  1000 049
Cleaning brush - Ø 12 mm  389 765
Parts set (not shown), consisting of:  1002 359
Round jet nozzle - NS02, complete  382 922
Cable clamp  303 070
Deflector - Ø 16 mm  331 341
Deflector - Ø 24 mm  331 333
Deflector - Ø 32 mm  331 325
O-ring - Ø 12x1.5 mm  1000 822
Countersunk head screw - M 4x8 mm, plastic  263 516
Powder hose - Ø 7 mm (not shown)  1005 097

Spray nozzles
Nozzle set - flat jet, NF08, pos. 1, 2  1000 047#
Nozzle set - round jet, pos. 5, 6, 9  382 922
1  Electrode holder (flat jet nozzle)  1000 055#
2  Flat jet nozzle  1000 049#
3  Threaded sleeve  1000 948
5  O-ring - Ø 5x1 mm  231 606#
6  Round jet nozzle  378 518#
7  Deflector - Ø 16 mm  331 341#
7.1  Deflector - Ø 24 mm  331 333#
7.2  Deflector - Ø 32 mm  331 325#
8  Extension - 150 mm  378 852#
8.1  Extension - 300 mm  378 860#
9  Electrode holder, incl. pos. 5 (round jet central electrode)  382 914#

Packing&Delivery
Packing: Carton
Delivery: according to quantity, uaually small order within 2days.
If you are looking for powder coating machine spare parts ,
Just contact us for further discuss!
Thank you!
