• Model NO.：828
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：828 Glazed Roof Tile Forming Machine
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：2-6m,Min
• Roll Forming Speed：8-12m,Min
• Control Systerm：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：3.2 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 828 Customized Customized Advantage Easy to Maintenance Condition New Mode 828 Glazed Roof Tile Forming Machine Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1000mm Feeding Thickness 0.25-0.7mm Thickness Production Speed 2-6m/Min Roll Forming Speed 8-12m/Min Control Systerm PLC Computer Control with Inverter Size 6500mm*1500mm*1500mm Weight 3.2 Tons Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 50 Sets Per Month

Product Description

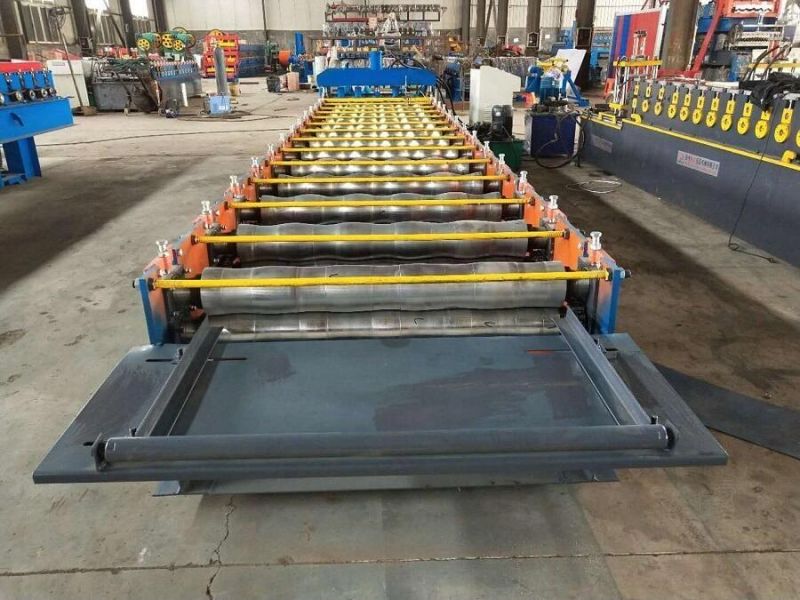

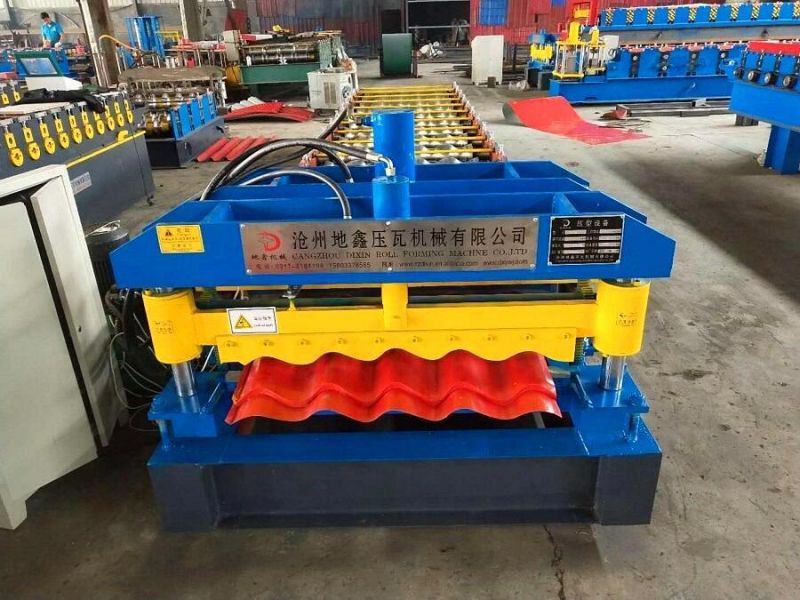

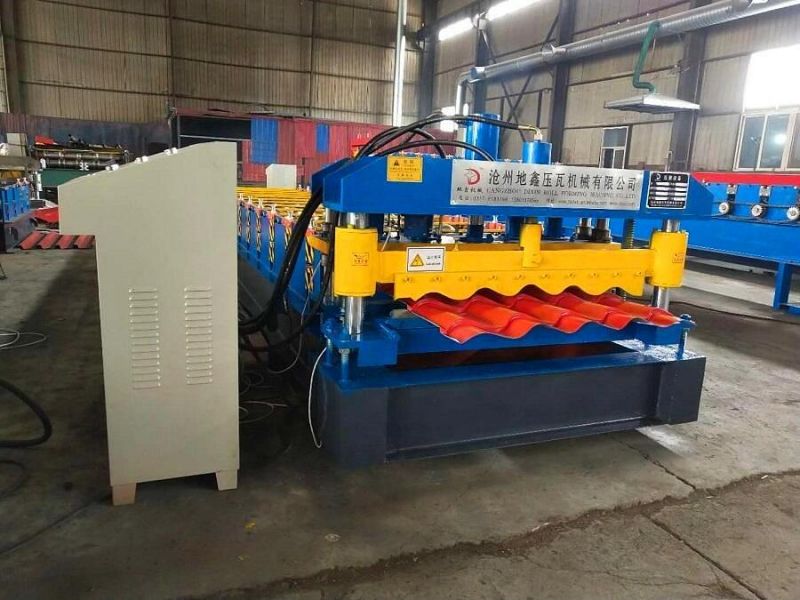

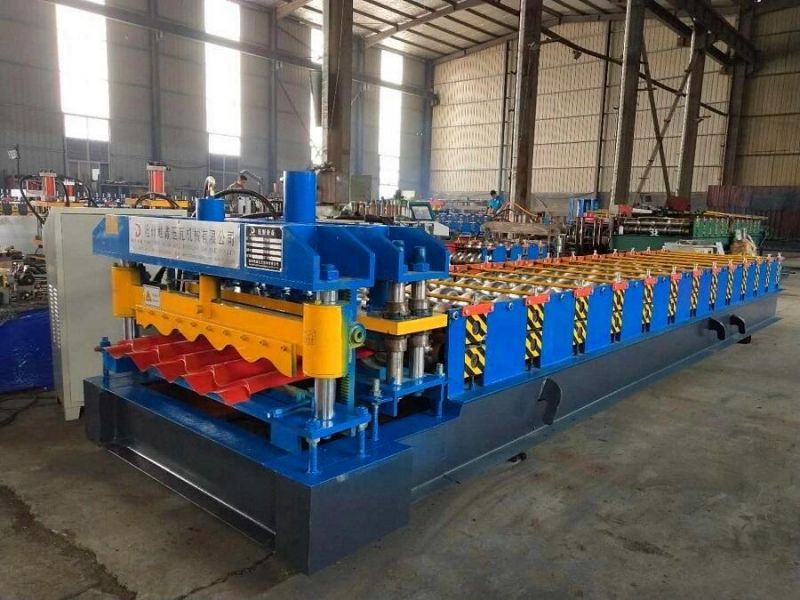

Steel Profile Glazed single-Layer Roll Forming Machine






2. Technique parameters
(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.3-0.8mm
(3) effective width: 828mm
(4) feeding width: 1000mm
(5) main motor power: 4 kw
(6) pump power: 4 kw
(7) shaft diameter: 75 mm
(8) forming steps: 11 steps
(9) roller material: 45# forged steel, with hard chrome plating
(10) main frame: 300h steel
(11) medium plate thickness: 16mm
(12) control systerm: Plc computer control with inverter
(13) power supply: 380v, 3 phase, 60hz or as your requirement
(14) 0veral sized: 6500mm*1500mm*1500mm



Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

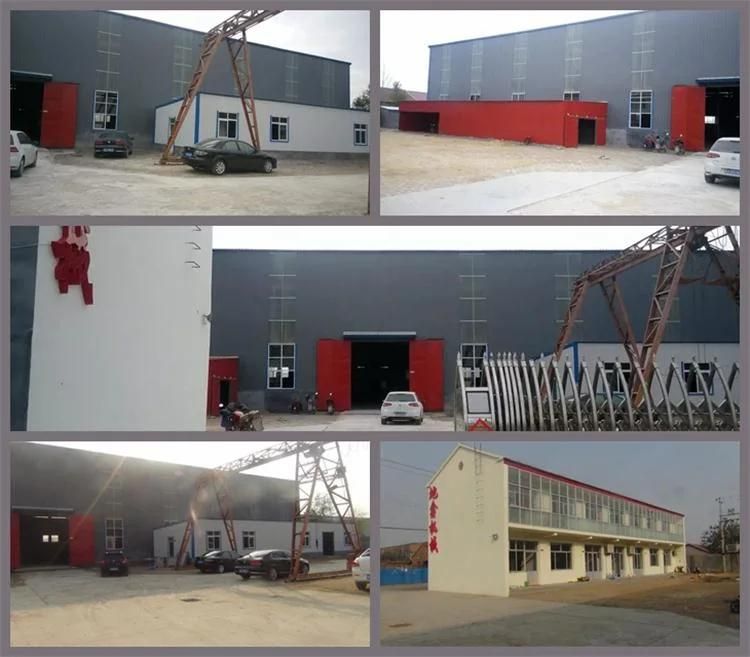

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

Engineer overseas service available

NO.	ADVANTAGE
1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use.
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic

Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.
