Corrugated Steel Sheet Roll Forming Machine
Hangzhou Santiway International Co., Ltd.- Certificate：ISO9001:2000,Ce

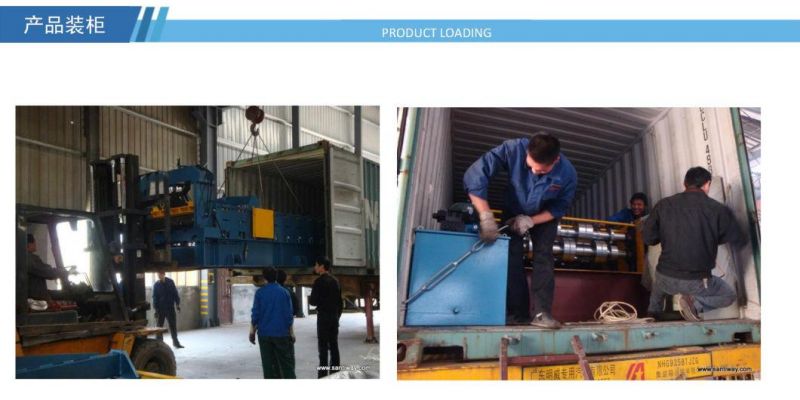

- Transport Package：Machine in 40′′gp,Other Accessories in Wooden Case
- Specification：CE
- Trademark：STW
- Origin：China
Base Info
- Model NO.：Corrugated steel sheet roll forming machine
- HS Code：84552210
- Production Capacity：10sets,Month
Description
Basic Info.
Model NO. Corrugated steel sheet roll forming machine HS Code 84552210 Production Capacity 10sets/MonthProduct Description

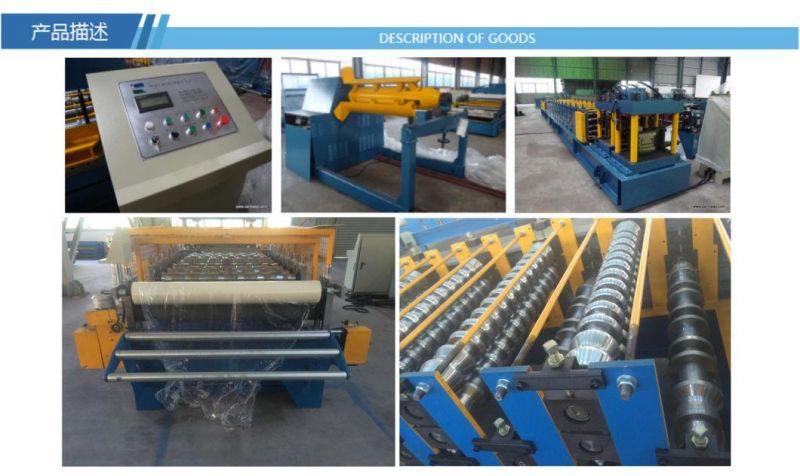

| Machine's Components: | Uncoiler, coil sheet guiding device, film covered device(optional), main roll forming system, cutting device, hydraulic, PLC control table and final product run out table. |
| Specification: | -Suitable raw material: color steel sheet; galvanized steel sheet; -Suitable thickness of raw material: 0.3-0.8mm; -Main motor power: 5.5kw(depend on finaldesign); -Hydraulic station power: 2.2kw(depend on final design); -Forming speed: about 15m-20m/min -Uncoiler's loading capacity: 5tons(can be increased to 10 tons or at buyer's requirement); -Control system: Mitsubishi PLC&converter; -Voltage:380V, 3phase, 60HZ, or at buyer's requirement; Machine's dimension: about 8m-1.5m*1.4m(depend on final design); |

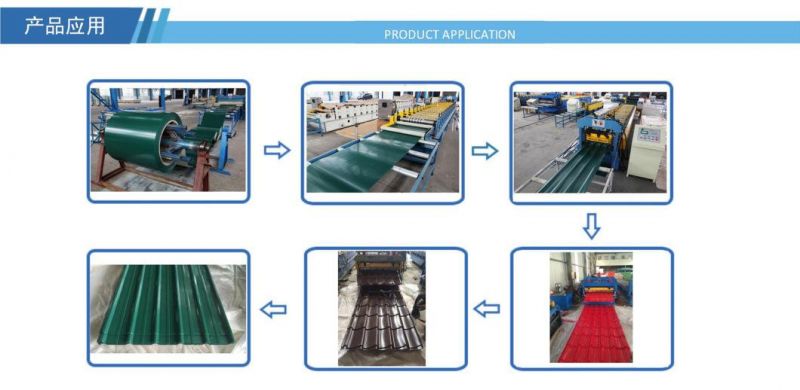

| Working flow: | Uncoiling the steel coil→ feeding and guiding the steel sheet→ film covering→ main roll forming→ cutting the panel→fianl product run out the table |
