Six Die High Speed Nut Making Machine/Cold Former/Nut Former
HARBIN RAINBOW TECHNOLOGY CO., LTD.- Type：Forging Operation
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：JXR
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Color：Green or Customized
- Transport Package：Wooden Case or Into Container
- Specification：6 FORGING STATIONS
- Trademark：Rainbow
- Origin：China
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. JXR Customized Customized Advantage Easy to Maintenance Condition New Color Green or Customized Transport Package Wooden Case or Into Container Specification 6 FORGING STATIONS Trademark Rainbow Origin China Production Capacity 1000 Sets/YearProduct Description

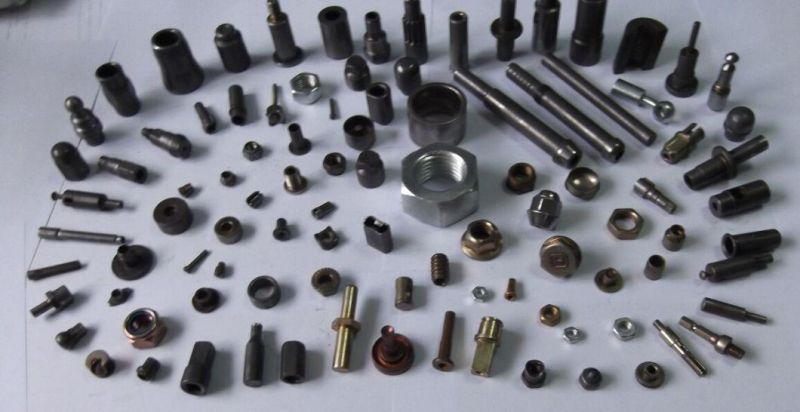

Products made by our machine

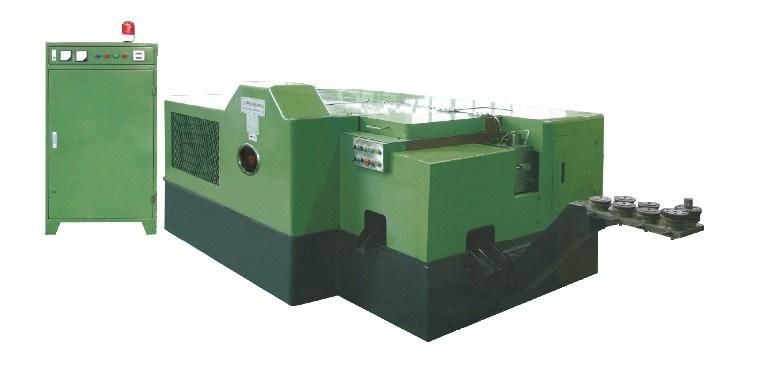

Machine photo
Nuts making machine, it can maily make the nuts, and different type nuts. It can finish the products in one time. So it is energy saving and high productivity and easy use.
Our machine in China can be say the leading machine. And best price.
Production items:
Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
Specification
| Model | JX11 B-6S | JX11 B-6S-L | JX14 B-6S | JX14 B-6S-L50 | JX14B- 6S-T50 | JX14B- 7S-L50 | JX17B- 6S | JX17B- 6S-L50 | JX19 B-6S | JX19B- 6SL-50 | JX24B- 6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
Exhibitions in 2019
If you have any question, pls feel free to contact me.
