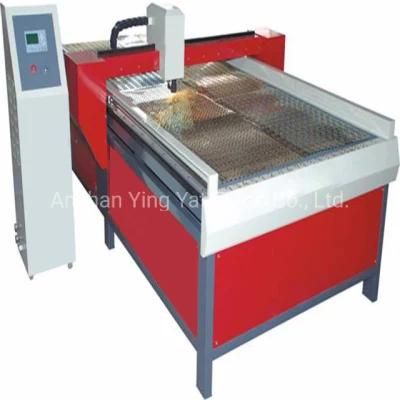

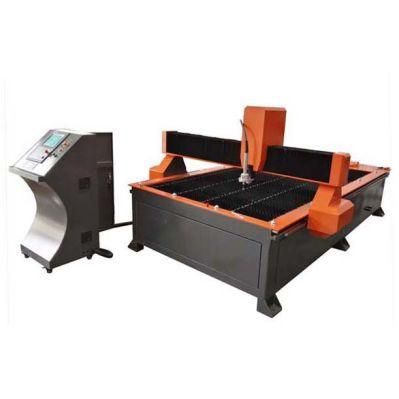

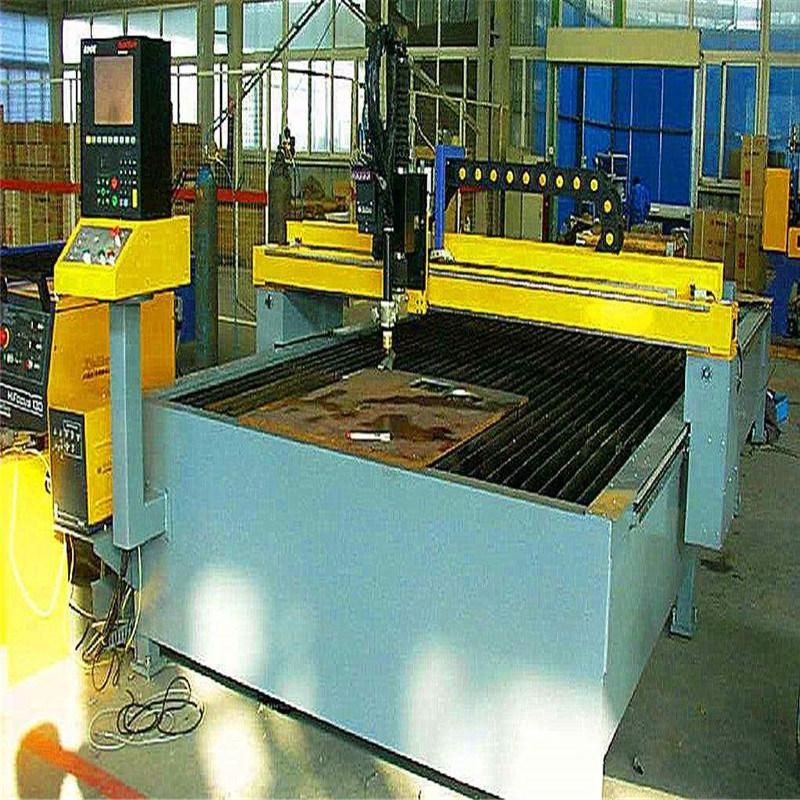

High Speed Metal Sheet CNC Plasma Cutting Machine From Molly
Anshan Ying Yat Trade Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Metal Alloy
- Automatic Grade：Semi-Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：AKP1325-R
- Transport Package：Export Standard
- Specification：Max. cutting speed: 15000mm,min
- Trademark：AccTek
- Origin：China
- HS Code：8210000000
- Production Capacity：12 Sets Per Month
Description
Industrial plasma cutting machine
Model
AKP1325
AKP1530
AKP2040
Working size
1300*2500mm
1500*3000mm
2000*4000mm
Three axes Repeat positioning accuracy
±0.05mm
Process precision
±0.35mm
Transmission system
X,Y Taiwan AMT high-precision,zero clearance increased linear guide+ rack
Z the arc voltage control
Max. cutting speed
15000mm/min
Working voltage
AC380/50HZ
Control system
Beijing START plasma cutting system
Standard high sensitivity arc voltage device
Software support
FASTCAM,AutoCAD
Instruction format
G code
Drive system
Stepper motor (Optional Taiwan AC servo motor)
Plasma power
Domestic Huayuan 60A-200A
Imported US Powermax 60A-000A
Power cutting ability
Domestic Huayuan 0.5-30mm
US Powermax series 0.5-30mm
Working pressure
0.65-0.7Mpa
