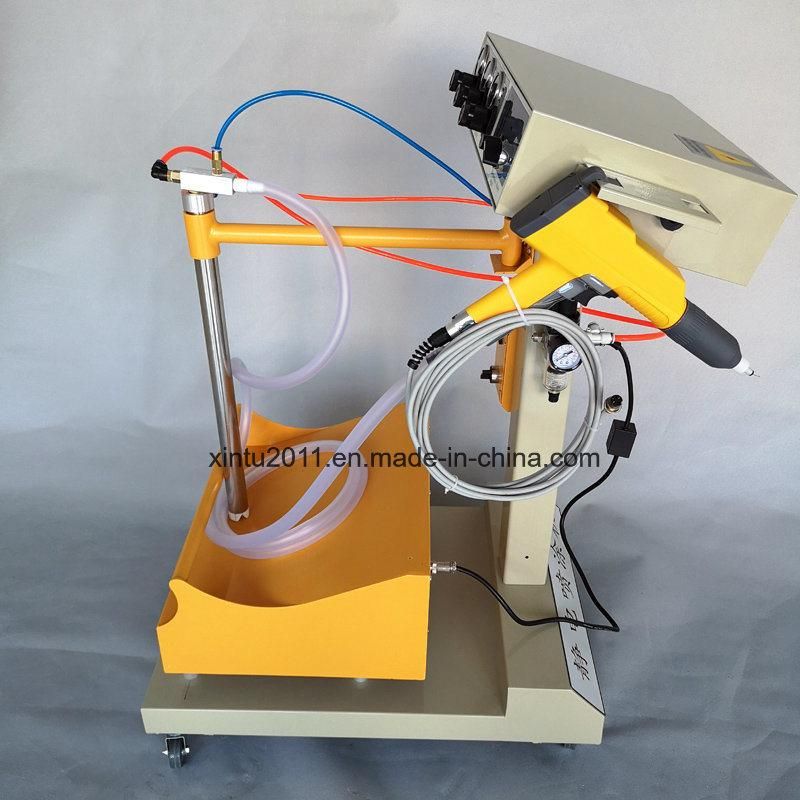

Aluminum Profiles Box Feeder Vibrating Manual Powder Coating Equipment with Powder Guns

Jiangsu Xintu Machinery Co., Ltd.
  • Type：Coating Spray Gun
  • Coating：Powder Coating
  • Substrate：Steel
  • Certification：CE, ISO, Atex, SGS
  • Condition：New
  • Model：Wx-101V

Base Info

  • Model NO.：WX-101V
  • Voltage：110V,220V
  • Power：50W
  • Dimension(L*W*H)：68.5*47.5*59cm
  • G.W.：41kg
  • Warranty：13 Months
  • Delivery Way：DHL,TNT,FedEx
  • Delivery Time：2-3days
  • Transport Package：Wooden Case,Carton
  • Specification：CE, SGS
  • Trademark：WANXIN
  • Origin：China
  • HS Code：84243000
  • Production Capacity：20 Unit ,Day

Description

Basic Info.

Model NO. WX-101V Voltage 110V/220V Power 50W Dimension(L*W*H) 68.5*47.5*59cm G.W. 41kg Warranty 13 Months Delivery Way DHL/TNT/FedEx Delivery Time 2-3days Transport Package Wooden Case/Carton Specification CE/ SGS Trademark WANXIN Origin China HS Code 84243000 Production Capacity 20 Unit /Day

Product Description

If your production requires frequent and quick color changes

Then we would recommend the WX-101V,

which is designed to use the powder manufacturer's original carton. Highest flexibility,

Minimal color change times, For direct transport from the original powder carton,

Complete emptying of the powder box thanks to the tilted vibrating base, integrated fluidization .

Aluminum Profiles Box Feeder Vibrating Manual Powder Coating Equipment with Powder Guns



Technical Data
  • Power Voltage: AC110V/AC220V
  • Frequency: 50/60Hz
  • Sprying Rate: 500g/min.
  • Input Power: 40W
  • motor power:30W
  • Electromagnetic Valve Control Power Voltage: DC 24V
  • Maximum Output Current: 150uA
  • Input Air Pressure: 0-0.6Mpa
  • Output Air Pressure: 0-0.5Mpa
  • Max. Air Consumption: 13.2m3/H
  • Output Powder Volume: Max. 550g/Min
  • Output Power Voltage: 0-100kv
  • Polarity: Negative
  • Gun Weight: 480g
  • Length Of Gun Cable: 4m
  • Powder Coating Applicable: All Kinds Of Powder Without The Metals


Packing List

Control Unit *1
Powder Coating Gun *1
Powder Injector *1
Moving trolley with vibrating table x1
Regulating Valve*1
Oil water filter *1
Powder Gun spare parts *1KIT
OPERATION MANUAL*1

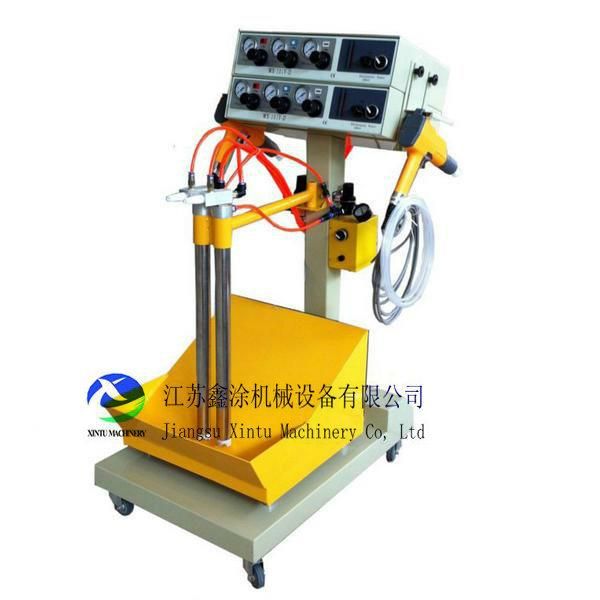

Based on this equipment,We also developed another machine which has two controller and two guns on one machine.

Be availabe to use for two operator at the same time.

Aluminum Profiles Box Feeder Vibrating Manual Powder Coating Equipment with Powder Guns


Shipping and Packing

Aluminum Profiles Box Feeder Vibrating Manual Powder Coating Equipment with Powder Guns

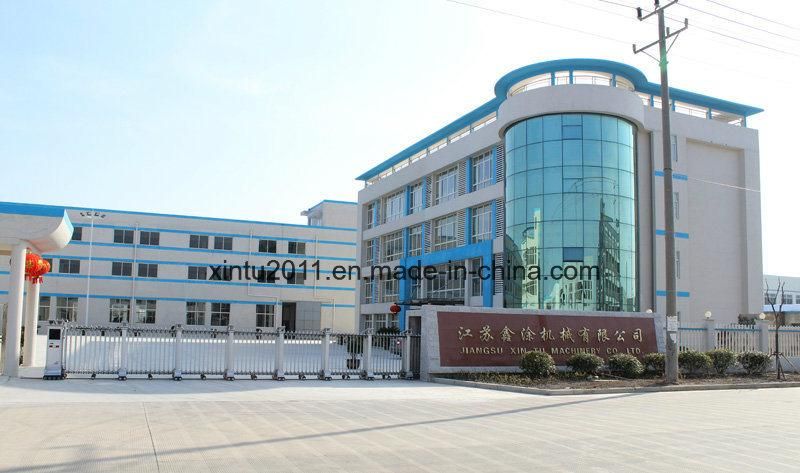

Our Factory:
Aluminum Profiles Box Feeder Vibrating Manual Powder Coating Equipment with Powder Guns
