• Certification：REACH, RoHS, ISO
• Condition：New
• Coulor：Any
• Voltage：380,415,440,220
• Drawing Material：High, Medium, Low Carbon
• Warranty：One Year
• Market：All of The World
• After Sell Service：Engineers Available to Service Outside
• Power：18.5-30kw
• Technology：Complete Program in Offer
• Drawing Speed：10-12m,S
• No of Block：According Clients Needs
• Transport Package：PE
• Specification：weight 8 ton
• Trademark：wandeshun
• Origin：Wuxi
• HS Code：8463102000
• Production Capacity：300 Set One Year

Basic Info.

Certification REACH, RoHS, ISO Condition New Coulor Any Voltage 380/415/440/220 Drawing Material High, Medium, Low Carbon Warranty One Year Market All of The World After Sell Service Engineers Available to Service Outside Power 18.5-30kw Technology Complete Program in Offer Drawing Speed 10-12m/S No of Block According Clients Needs Transport Package PE Specification weight 8 ton Trademark wandeshun Origin Wuxi HS Code 8463102000 Production Capacity 300 Set One Year

Product Description

 1.    About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

Product  Details

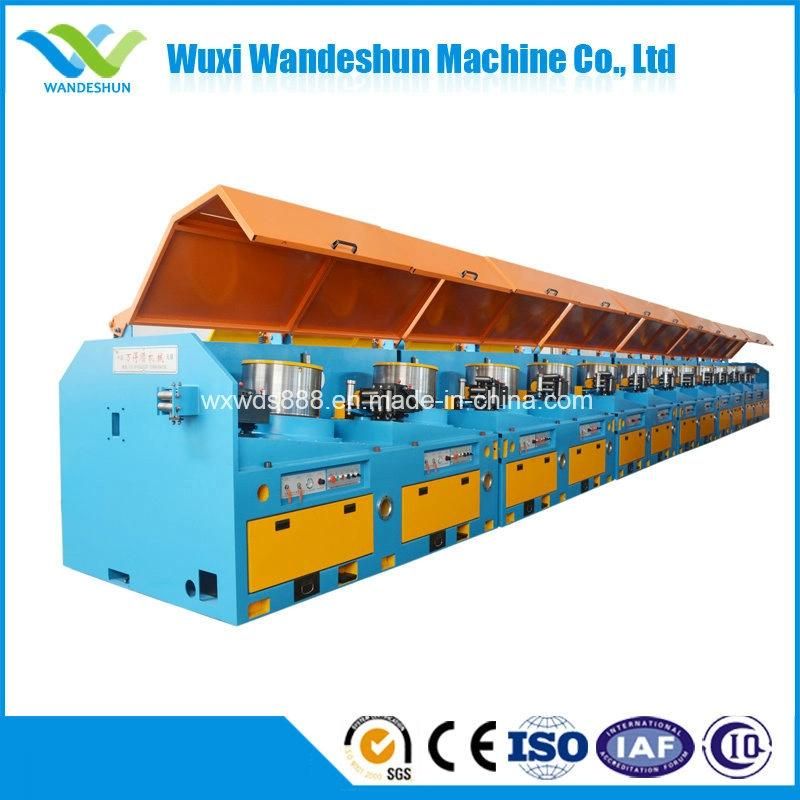

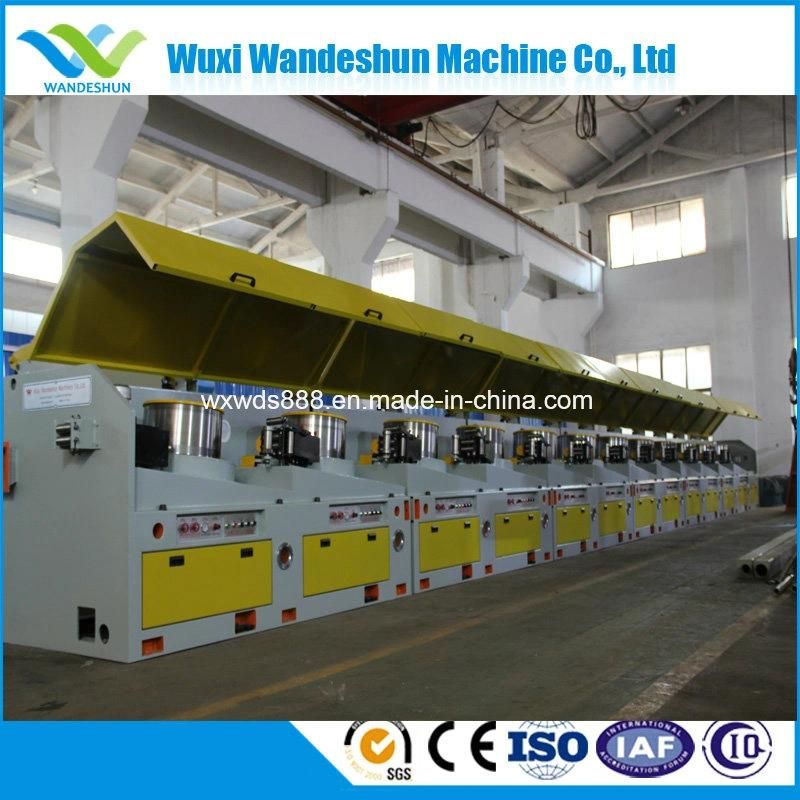

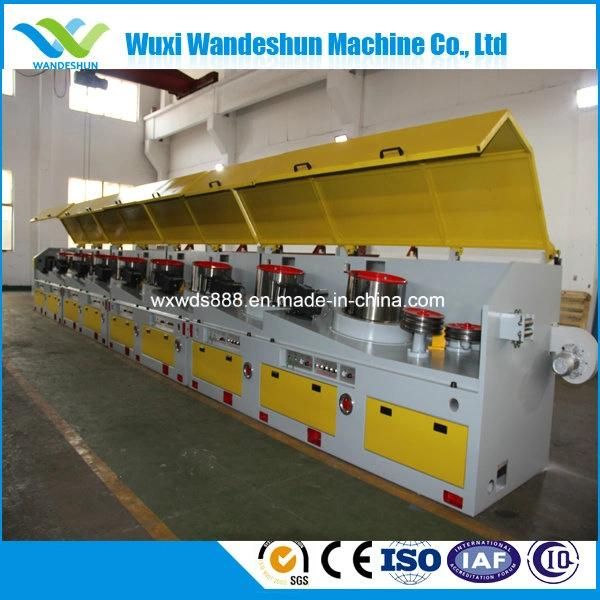

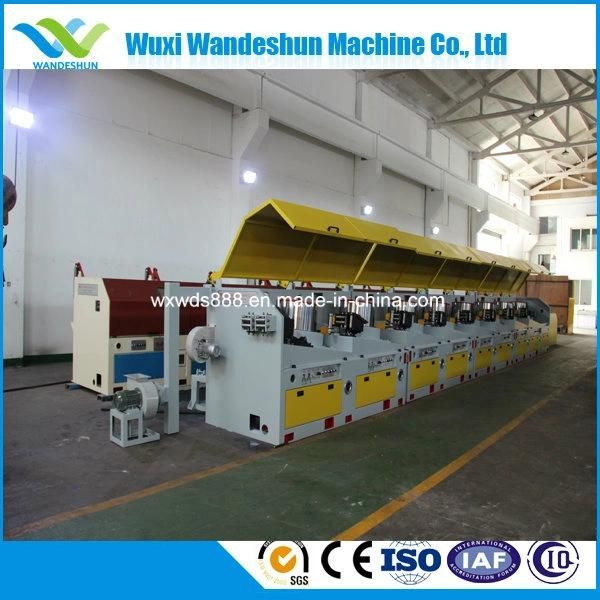

China Steel Straight Line metal  Wire Drawing Machine Pulling Mill Manufacturer

2. Straight Line Drawing Machine:

 Our straight line drawing machine applies advanced international technology, with digestion and absorption, the drawing machine is applicable for high intensity and performance demand. It mainly applied for the production of steel curtain wire, tyre steel wire, steel wire for rope, spring steel wire, stainless steel wire, gas welding wire, arc welding wire, etc. The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.
     The equipment line drawing machine contains the function of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display, etc. Its transmission structure is plane double enveloping worm wheel+ narrow V band with low noise. The capstan applies the combination of narrow water cooling and air cooling with good cooling effect. AC variable-frequency and Siemens PLC is used for speed adjustment. Generally, it is an kind of efficient and advanced drawing machine equipment with easy operation, high degree of automation and broad process scope.

Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Diameter of capstan	mm	1200-900	800	700	560(600)	400(500)
Drawing dies	time	9-12	10	9	10	10
Max diameter of inlet wire	mm	φ14-18	φ10-8	φ8-6.5	φ6.5-5.5	φ3.5-2.5
Min diameter of outlet wire	Mm	φ5-3	φ4-2.5	φ3-2.5	φ2-1.8	φ1.1-0.8
Drawing line speed	m/min	300	360	480	720	840
Loading capacity	Mpa	<=1300	<=1300	<=1300	<=1300	<=1300
Total compression rate	%	87.24-92.89	90.53-90.23	85.94-85.21	90.53-89.29	90.12
Average compression rate	%	20.45-19.58	21.00-20.75	19.58-19.13	21.00-20.02	20.5
Motor power	Kw	110-90	90-55	75-55	37-22	15-7.5

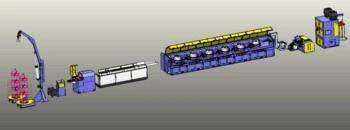

layout  of  machine
