• Model NO.：WX-601
• Pulse Features：Save Powders and Fine Coating Results
• Transport Package：Carton, Wooden Case
• Specification：68.5*47.5*59cm
• Trademark：WANXIN
• Origin：Jiangsu, China
• HS Code：84243000
• Production Capacity：1000 Sets, Year

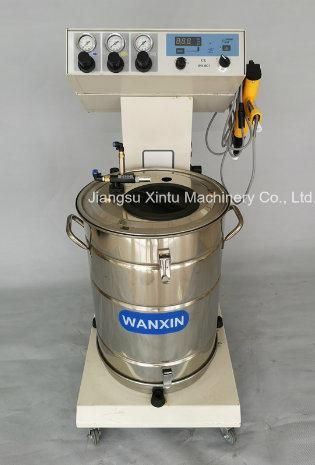

WX-601 Pulse coating system
(KCI201 replacement)




Technical Data

Gun Weight	500g	Gun Cable	5 meters
Power source	AC 220V/110V	Frequency	50~60Hz
Power	40W	Max Output Current	150μA
Input Voltage	24V	Output Voltage	100 KV
Polarity	Negative	High Pressure Mode	Built-in
Max Power Injection	550g/min	Max Air Consumption	13Nm3/h
Pulse Frequency	15~20 Clock /S	Working Temperature Range	-10 ~45°C

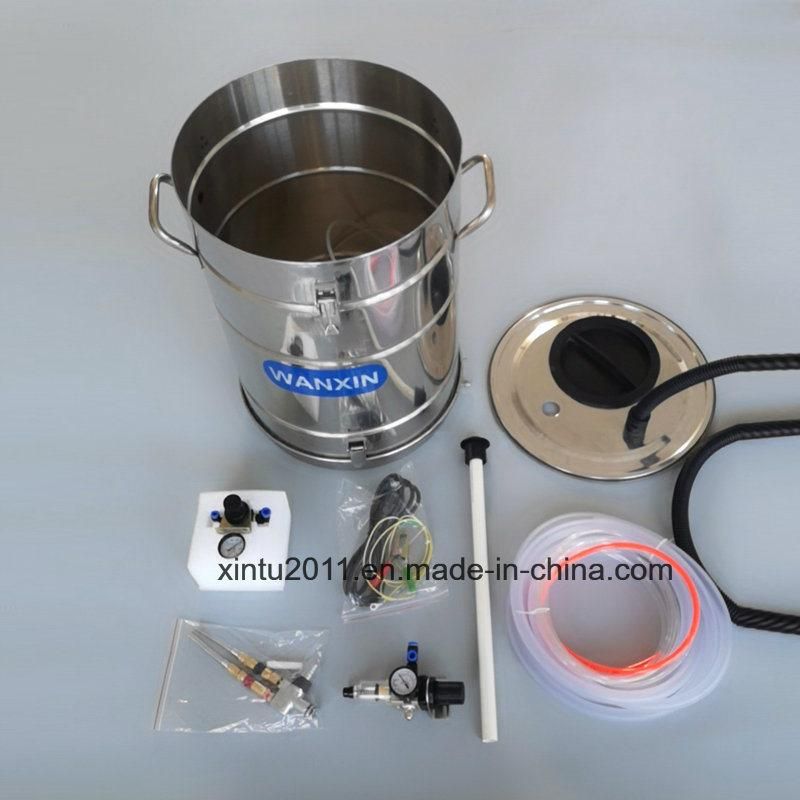

Packing List
- Control Unit *1

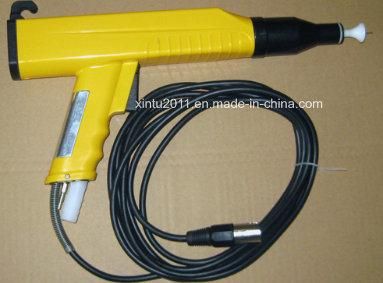

- Powder Coating Gun *1
- Powder Hopper * 1
- Powder Injector *1
- Moving trolley*1
- Regulating Valve*1
- Oil water filter *1
- Powder Gun spare parts *1KIT
- OPERATION MANUAL*1
