• Model NO.：ZYYX
• Advantage：Easy to Maintenance
• Condition：New
• Machine Weight：About 8t
• Operation Language：English or as Per Client`S Required
• Certificate：Ce
• Quality System：ISO9001

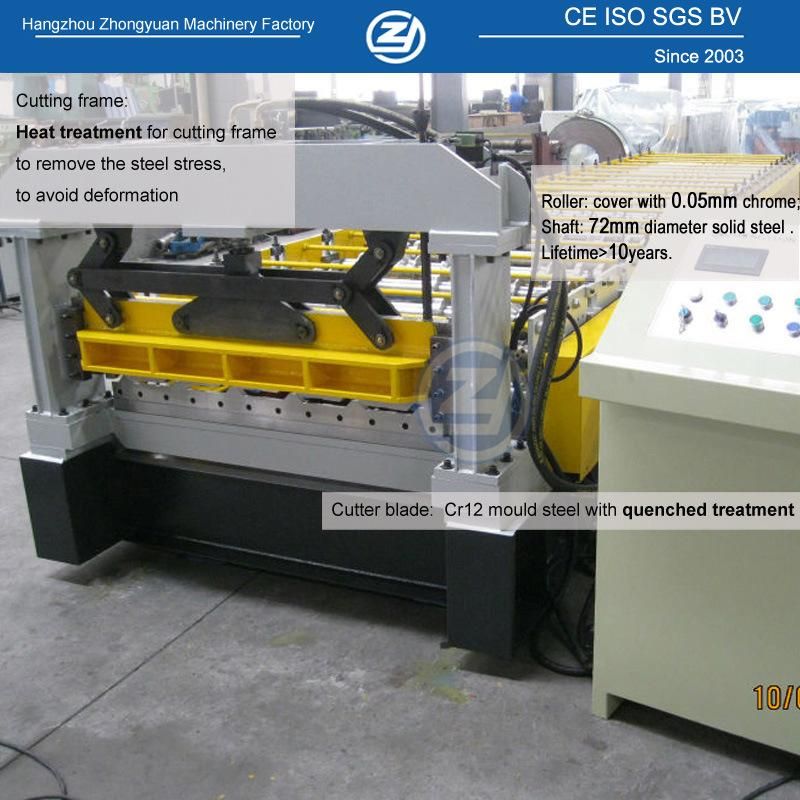

• Cutter Material：Cr12 Mould Steel Being Quenched Treatment

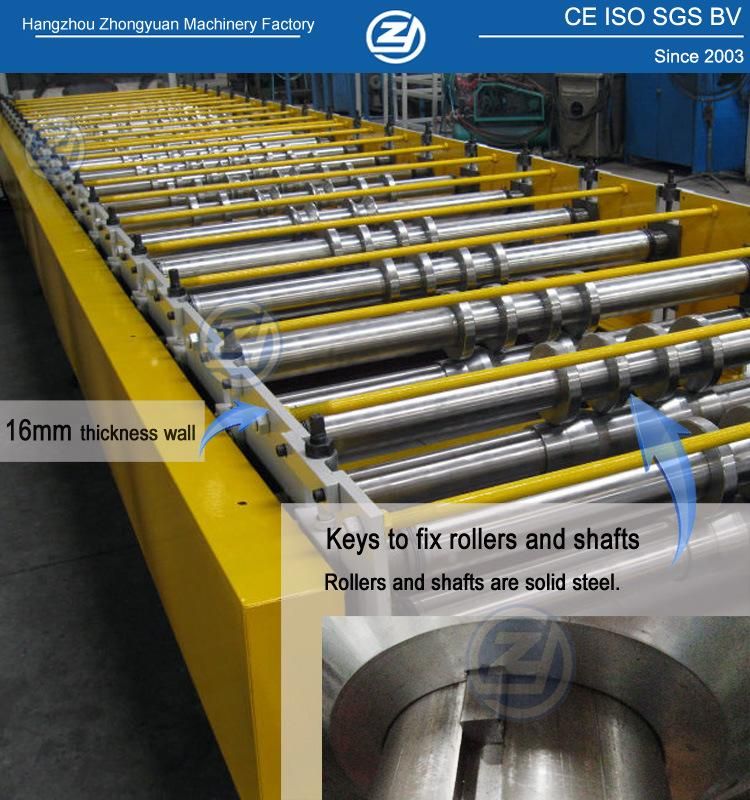

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Guarantee Time：First Year Free, Lifetime Services
• Control System：Mitsubishi PLC & Converter
• Machine Size：10*1.5*1.4 M
• Machine Type：Steel Corrugated Roll Forming Machine
• Transport Package：40gp Container
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


                                                   Soncap Steel Corrugated Roll Forming MachineItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-345Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20Output speed(m/min)About 20Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.7 KW

Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set





Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table


Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment
