• Model NO.：Double Layer Roll Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Shaft for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Controlling System：Mitsubishi PLC & Converter
• Certificate：Ce
• Guarantee Time：First Year Free, Lifetime Services
• Transport Package：1*20gp&1*40gp Container for One Machine
• Specification：CE SGS BV Soncap
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItemSpecificationRaw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with
 cylindrical grinderForming speed(m/min)About 25Output speed(m/min)About 20Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KW Total power(kw)9.7KW Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Company Information

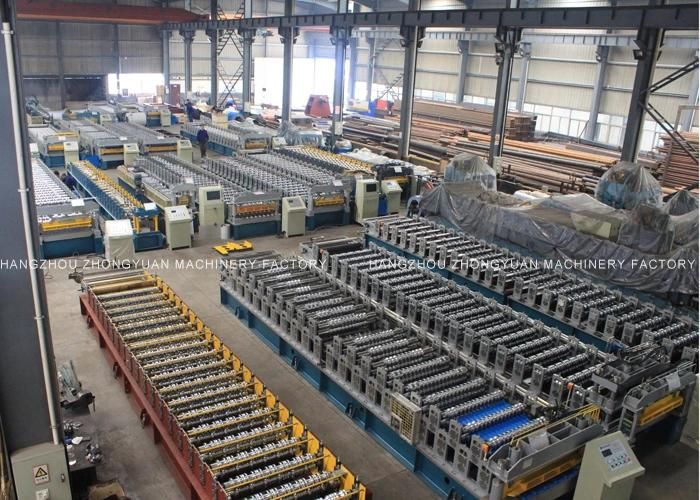

Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

We are"All-in-house source" - from raw material to the final high-precision forming machine. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.

Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.

Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Russia, Azerbaijan and Kazakhstan.

We have rich experience for metal forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
