• Model NO.：QC12Y-6x2500
• product name：shear machine (QC12Y-6X2500) Hydraulic Swing Beam
• model：QC12Y-6X2500
• Max. Shearing Thickness：6
• Max. Width：2500
• Strength of sheet：450
• Shear angle：1.5
• Max. rear stop stroke：600
• Fuel tank volume：280
• Main motor power：7.5
• warranty：12 months
• Transport Package：Plywwood Case
• Specification：Max. Shearing Thickness 6
• Trademark：Luzhong
• Origin：China
• HS Code：8000
• Production Capacity：200 Pieces,Months

Basic Info.

Model NO. QC12Y-6x2500 product name shear machine (QC12Y-6X2500) Hydraulic Swing Beam model QC12Y-6X2500 Max. Shearing Thickness 6 Max. Width 2500 Strength of sheet 450 Shear angle 1.5 Max. rear stop stroke 600 Fuel tank volume 280 Main motor power 7.5 warranty 12 months Transport Package Plywwood Case Specification Max. Shearing Thickness 6 Trademark Luzhong Origin China HS Code 8000 Production Capacity 200 Pieces/Months

Product Description

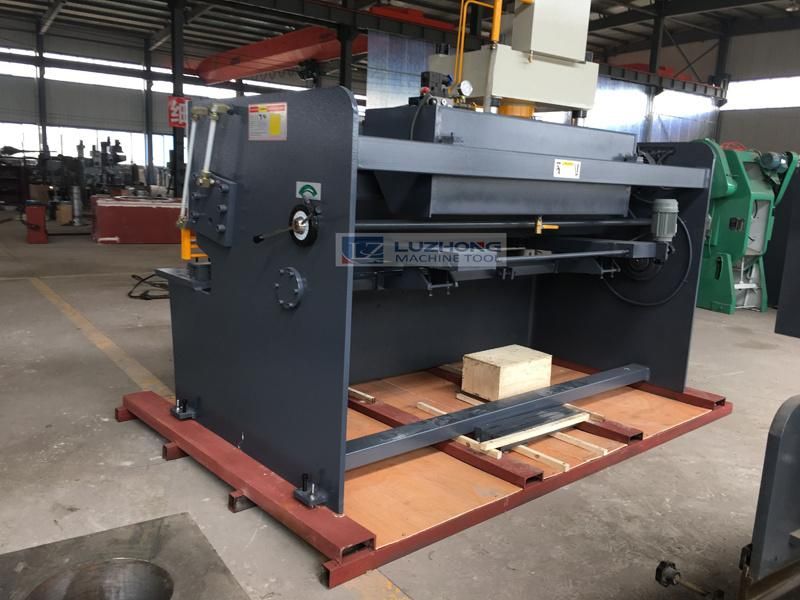

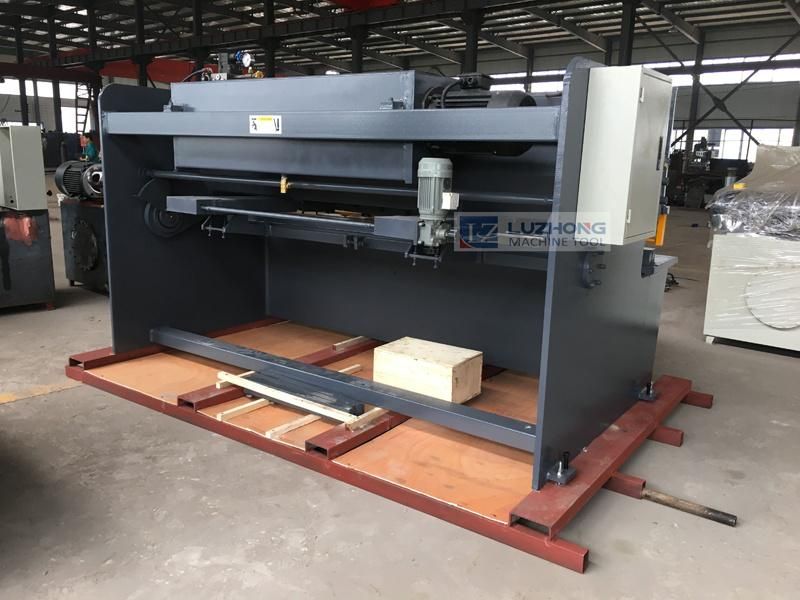

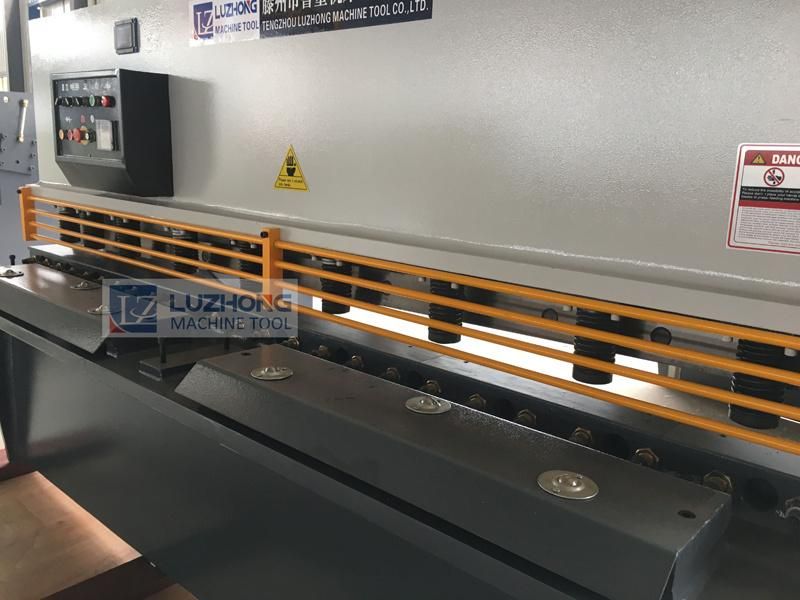

shear machine (QC12Y-6x2500) Hydraulic Swing Beam Shear machine



 The main performance characteristics:

1 Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .
2 Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .
3 Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .
4 Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.
5The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

Application:

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Product main technical parameters:


Specification parameter	Company	6x2500
Max. shear plate thickness	mm	6
Max. cutting width	mm	2500
Shear plate strength	N/m²	450
shear angle	deg	1.5
Max. rear stop stroke	mm	600
Fuel tank volume	L	280
Main motor power	K w	7.5
machine length	mm	3200
Machine width	mm	1800
Machine height	mm	1650
Machine weight	Kg	7000
