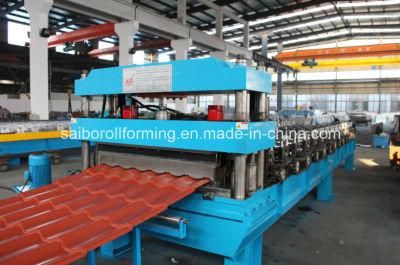

Roofing Tile Double Layer Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Wall Panel and Tile Double Layer Roll Forming Mach
- Color：Blue and Yellow
- Transport Package：Sea Packing
- Specification：CE SGS
- Trademark：Saibo
- Origin：Jiangsu
- HS Code：84552210
- Production Capacity：300sets,Year
Description
Specification of the material1
Suitable Material Colored Steel plate, Galvanized steel 2
Width of the raw material Base on profile 3 Thickness 0.4mm-0.6mm for tile
0.3-0.8mm for roofing
2.Machine Detailed Parameters:
3. The Chart of Process Flow
4. Packing & Delivery
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
0.3-0.8mm for roofing
2.Machine Detailed Parameters:
| 1 | Machine structure | Guide pillar structure |
| 2 | Total power | Motor power-7.5kw Hydraulic power-5.5kw |
| 3 | Roller stations | Up about 17 stations Down about 20 stations |
| 4 | Productivity | 2-4m/minfor tile 0-15m/minfor roofing |
| 5 | Drive system | By chain |
| 6 | Diameter of shaft | ¢70mm solid shaft |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
| 8 | Container need | 1X40GP container |
4. Packing & Delivery
- Deliver time: take goods after receive deposit 60 days
- Packing: suitable of ocean transportation
- Warranty: 1 year warranty from date of shipment
- Guarantee:
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
