Automatic Electrostatic Powder Coat Painting Spray Systems for Door
Colo International Corporation Group Ltd.- Type:Coating Production Line
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE
- Condition:New
- Brand Name:Colo
Base Info
- Model NO.:colo-2000D
- Stroke:1.5m, 1.8m.2m.2.5m
- Extra Services:Painting , Powder Coating
- Automation:Automatic
- Weight:300kg
- Voltage:220V,110V
- Power(W):2.5kw
- Warrenty:1 Year
- Transport Package:Wodden Case
- Specification:CE
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:3000PCS
Description
Basic Info.
Model NO. colo-2000D Stroke 1.5m, 1.8m.2m.2.5m Extra Services Painting / Powder Coating Automation Automatic Weight 300kg Voltage 220V/110V Power(W) 2.5kw Warrenty 1 Year Transport Package Wodden Case Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 3000PCSProduct Description
Automatic Electrostatic Powder Coat Painting Spray Systems for DoorAutomatic powder Coating machine is up and down back and forth by a variable speed motor automatic spraying equipment, high-speed rail, automatic drive positioner systems composed. Automatic spray gun mounted on the end portion of the fixing bracket (2-8 branched gun may be installed) while spraying process according to pre-programmed reciprocating spray.
Move to a new level of powder coating efficiency with the Reciprocator.
Summary of Benefits:
Increased Uniformity Advanced digital control.
Smooth, Swift and Precise movement for speedy and uniform coating.
Reduce powder consumption.
Quick Job Change Pre-programmable preset settings for automatic selection of stroke and speed.
User-friendly touch screen control to control speed and stroke length.
Adjustable counterbalance weights allow perfectly balanced gun movement.
And could match automatic spraying control cabinet
for 4 ~ 10 sets electrostatic powder coating spray equipments.
Techinial data:
Nominal input voltage | 170-264VAC single phase |
Tolerance | +10%/-10% |
frequency | 50/60hz |
Fuse | 10.0AT |
Power consumption | 2.5kw |
Maximum available programs | 80 |
Max stoke height | 2.8m |
Maximum speed | 0.8m/s |
Minimum speed | 0.08m/s |
acceleration | 0.1m/s2 |
width | 0.7M |
Depth | 0.7M |
Height(1.5M/2M/2.5M) | 2.4/2.9/3.4M |
weight | 150kgs |

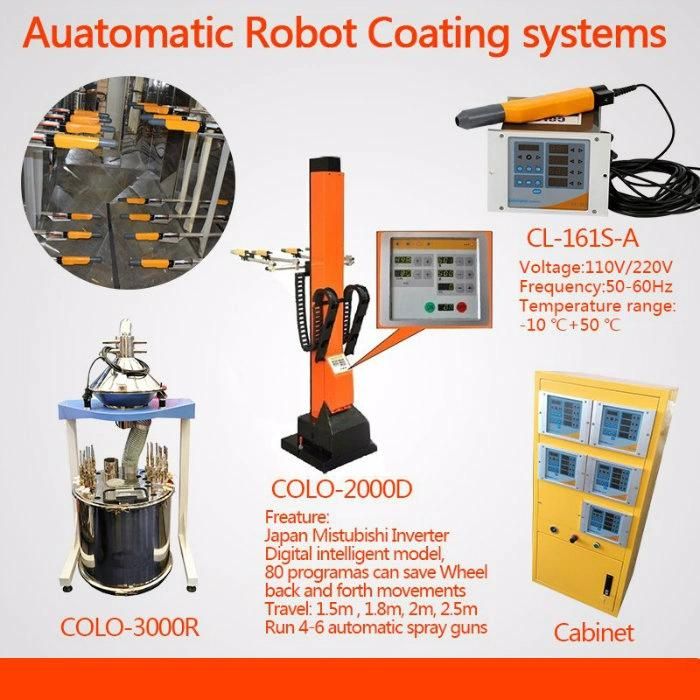

Automatic Systems :

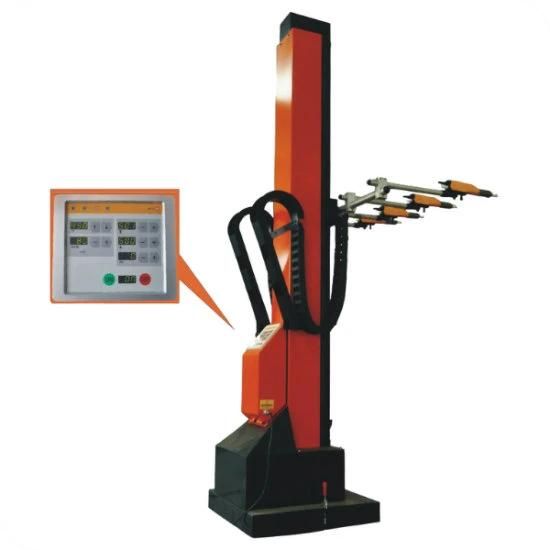

Reciprocator :

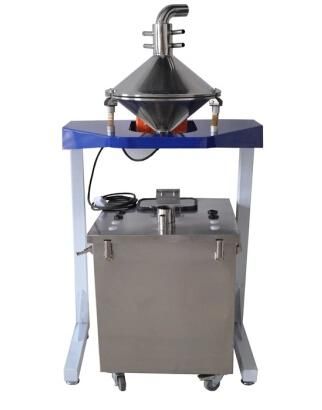

Sieving Machine:

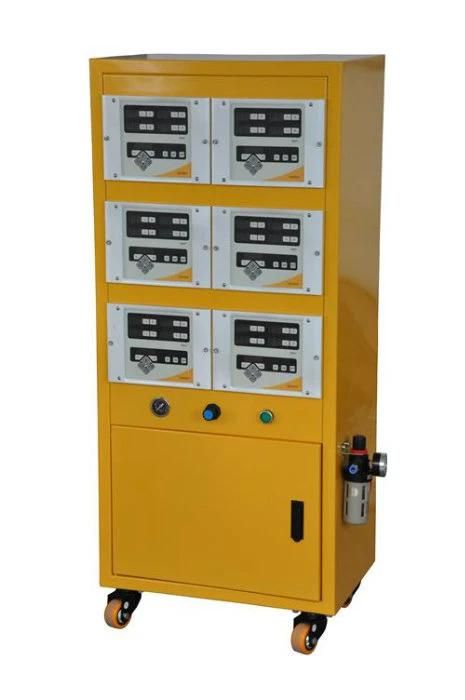

Cabinet of control unit:
Please Contact Diana for more Information:
