• Model NO.：CNCXG1250- 5axis
• Cutting Thickness(mm)：Flame:5-120mm, Plasma:1-60mm
• Pipe Chuck：3 Jaws Concentric Chuck
• Gearbox：Sew Gearbox
• Nc Controller：Advantech
• Plasma Power：Thermadyne, Kjellberg, Hypertherm
• Type：Pipe and Tube Bending Machine
• Application：Machinery & Hardware
• Type for Cutting Machine：CNC Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Type for Pipe and Tube Bending Machine：Horizontal Hydraulic Pipe Bender
• Transport Package：The Export Package, Custom Suffocating Free
• Specification：ISO9001
• Trademark：TAYOR
• Origin：China, Shanghai
• HS Code：8456901000
• Production Capacity：5000PCS,Year

Cutting Technical DataModelCNCXGCutting Pipe Diameter (mm)60-63060-800100-1000200-1250Pipe length(mm)1000-120001000-120001000-120001000-12000Max pipe loading( Kg)2000350040005000Cutting Speed (mm/min)80-1800Cutting Thickness(mm)Flame:5-120mm,Plasma:1-60mmPlasma max beveling angle≤45°Flame max beveling angle≤60°Basic components Pipe Chuck3 jaws concentric chuckCutting ModeFlame and PlasmaNumber of Control Axes2,3,4,5,6Driving MotorPanasonic, MitsubishiGearboxSEW gearboxNC ControllerAdvantechPlasma PowerThermadyne, Kjellberg, HyperthermOther SpecificationsWorking temperature- 10°C -45°CHumidity<90%, no condensationSurroundingsVentilation, no big shakePower voltage3×380V±10% or up by user's local conditionOperation languageEnglish or ChineseOptionsOption ItemHeating and cooling systems,Programming softwareintegration dust extraction
Cutting Sample

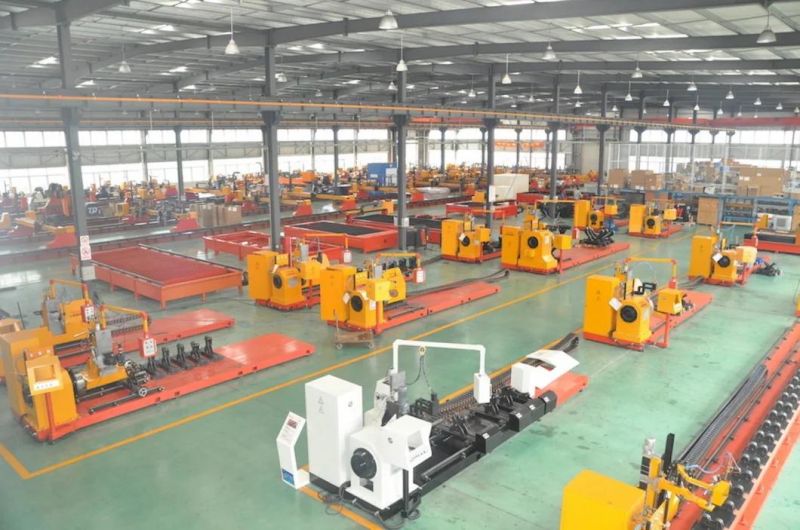

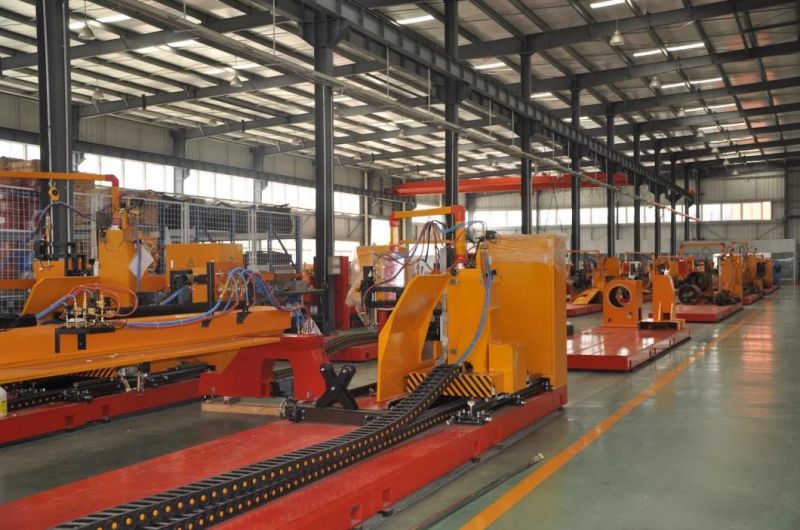

Workshop



Packing and Delivery

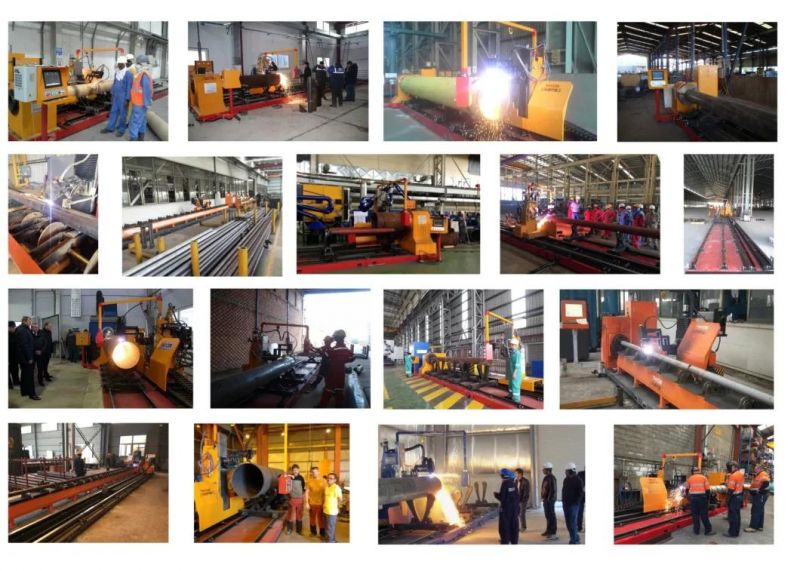

User's Site
