CNC Pipe Plasma Cutting Machine
Shanghai Tayor Heavy Industry (Group) Co., Ltd.- Customized:Customized
- Layout:Horizontal
- Cutting Material:Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade:Automatic
- Power Source:Electric
- Cutting Mode:Plasma Cutting
Base Info
- Model NO.:CNCXG-1200V
- Driving Motor:Panasonic, Mitsubishi
- Cutting Thickness(mm):Flame:5-120mm, Plasma:1-60mm
- Pipe Chuck:3 Jaws Concentric Chuck
- Gearbox:Sew Gearbox
- Nc Controller:Advantech
- Plasma Power:Thermadyne, Kjellberg, Hypertherm
- Type:Pipe and Tube Bending Machine
- Application:Machinery & Hardware
- Type for Cutting Machine:CNC Cutting Machine
- Type for Fold-Bending Machine:CNC Fold-Bend Machine
- Type for Pipe and Tube Bending Machine:Horizontal Hydraulic Pipe Bender
- Transport Package:The Export Package, Custom Suffocating Free
- Specification:ISO9001
- Trademark:TAYOR
- Origin:China, Shanghai
- HS Code:8456901000
- Production Capacity:5000PCS,Year
Description

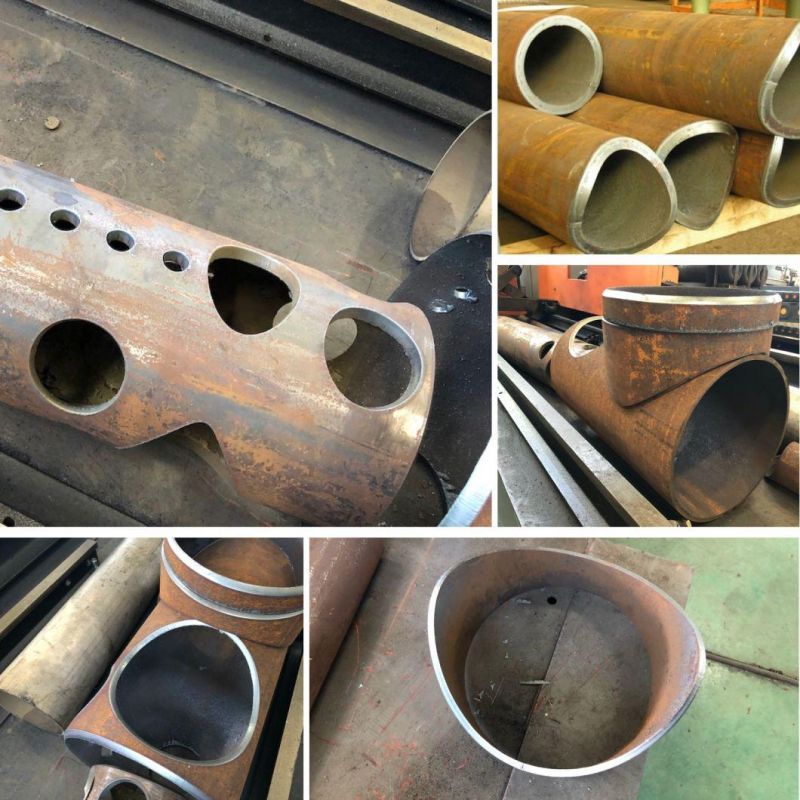

Cutting Technical DataModel CNCXG Cutting Pipe Diameter (mm) 60-630 60-800 100-1000 200-1250 Pipe length(mm) 1000-12000 1000-12000 1000-12000 1000-12000 Max pipe loading( Kg) 2000 3500 4000 5000 Cutting Speed (mm/min) 80-1800 Cutting Thickness(mm) Flame:5-120mm,Plasma:1-60mm Plasma max beveling angle ≤45° Flame max beveling angle ≤60° Basic components Pipe Chuck 3 jaws concentric chuck Cutting Mode Flame and Plasma Number of Control Axes 2,3,4,5,6 Driving Motor Panasonic, Mitsubishi Gearbox SEW gearbox NC Controller Advantech Plasma Power Thermadyne, Kjellberg, Hypertherm Other Specifications Working temperature - 10°C -45°C Humidity <90%, no condensation Surroundings Ventilation, no big shake Power voltage 3×380V±10% or up by user's local condition Operation language English or Chinese Options Option Item Heating and cooling systems, Programming software integration dust extraction Cutting Sample

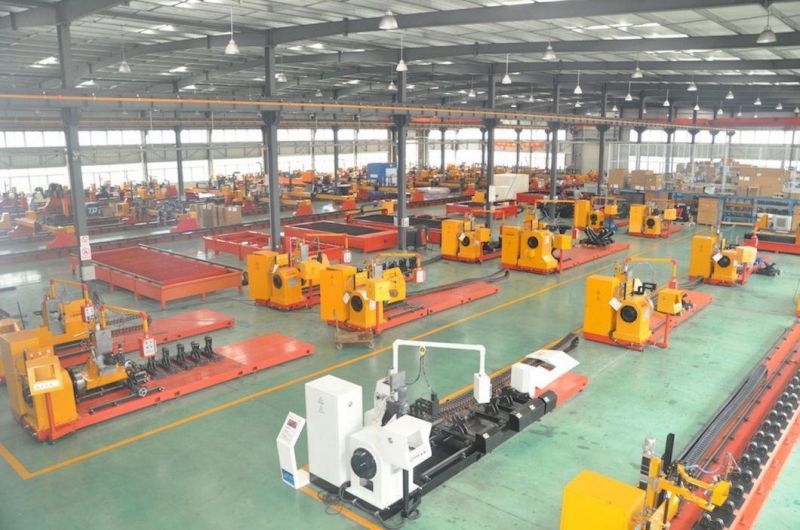

Workshop
Packing and Delivery
User's Site
Workshop
Packing and Delivery
User's Site
