• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Operation Language：English or as Per Client`S Required
• Main Motor：18.5kw
• Brand Name：Zhongyuan
• Guarantee Time：First Year Free, Lifetime Services
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Shaft Diameter：82mm Solid Steel
• Quality System：ISO
• Controlling System：Mitsubishi PLC & Converter
• Machine Weight：About 16t
• Certificate：CE
• Transport Package：40gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：6 Sets,Month

ItermSpecificationMaterialTypeColor steel sheet or galvanized steel sheetThickness(mm)0. 8 -1.2Yield strength(mpa)235 -345Forming speed(m/min)About 12-15m/min Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingLength measurementEncoderControl modeMitsubishi  PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)18.5KW   (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Uncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 15*1.8*1.6m  (Depend on final design)Machine weightAbout 16000kgs

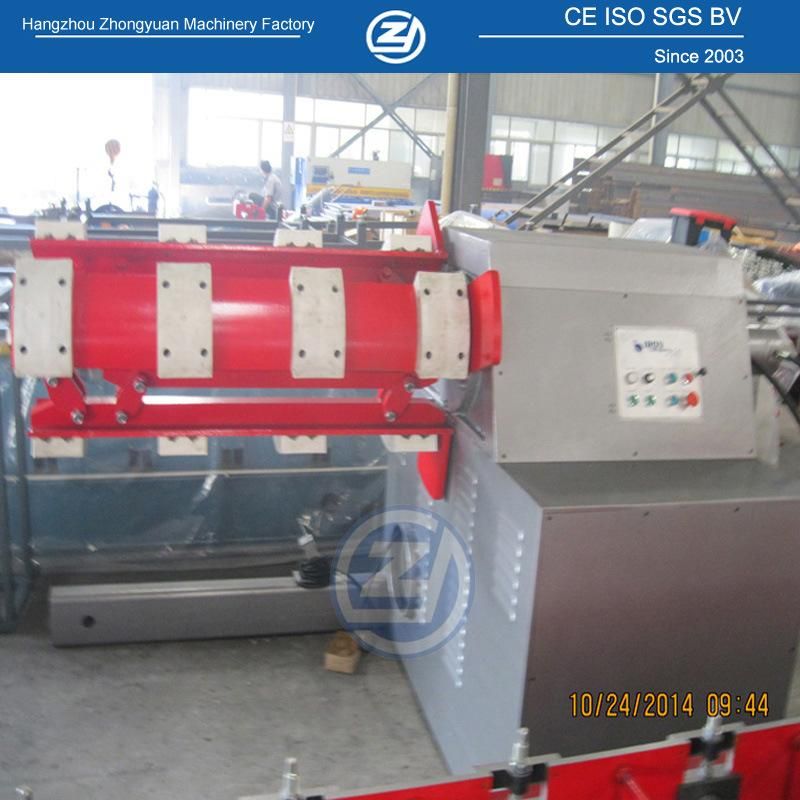

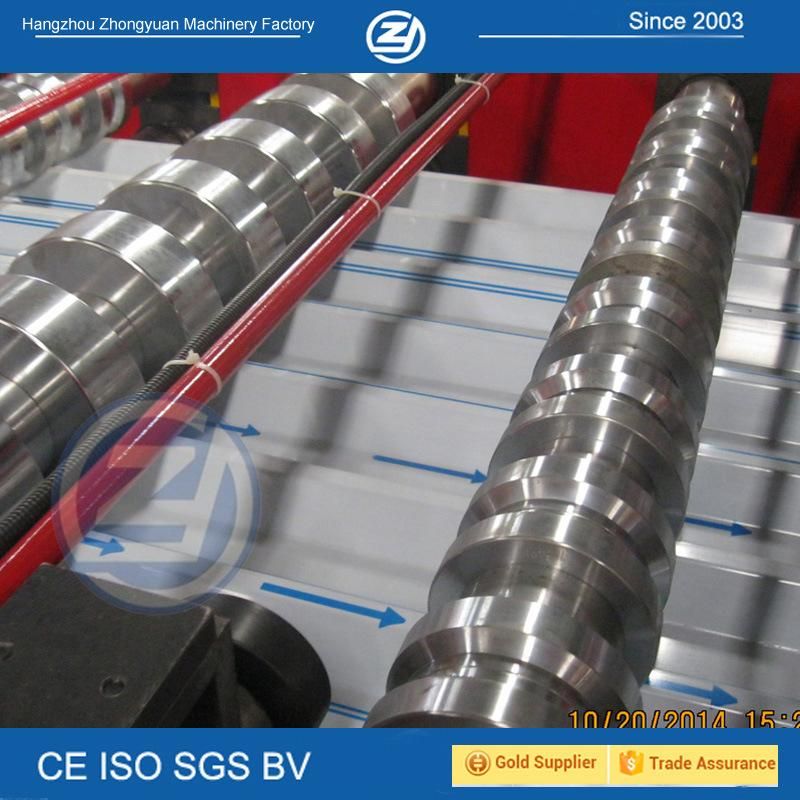

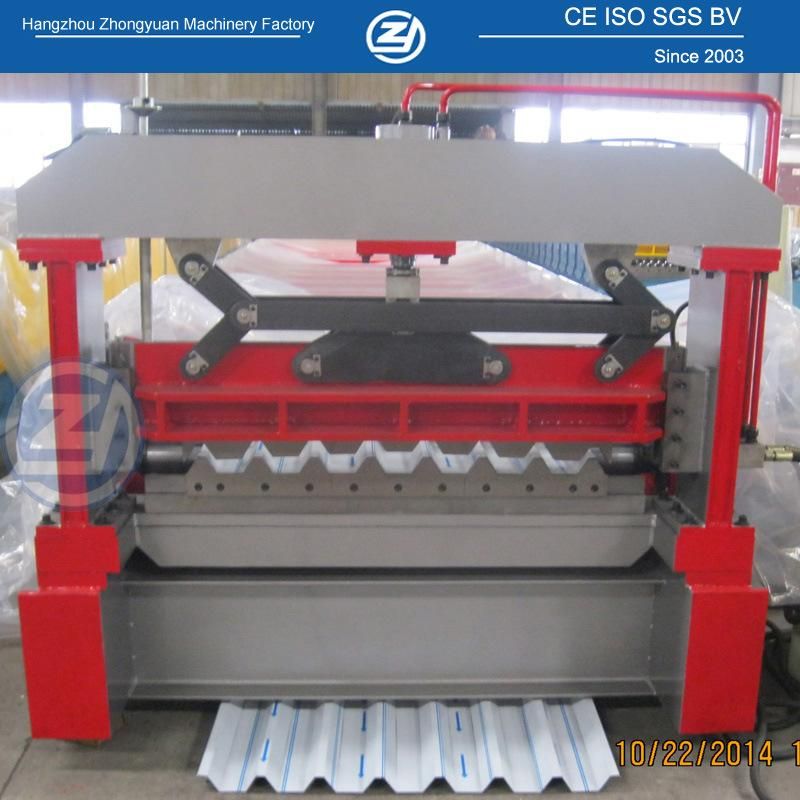

Decoiler1set   Feeding & guiding device1setPressing system1setMain roll forming machine1setCutting device1setHydraulic cutting system1setPLC Controlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table







About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Please feel free to contact us for more information!
