• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Operation Language：English or as Per Client`S Required

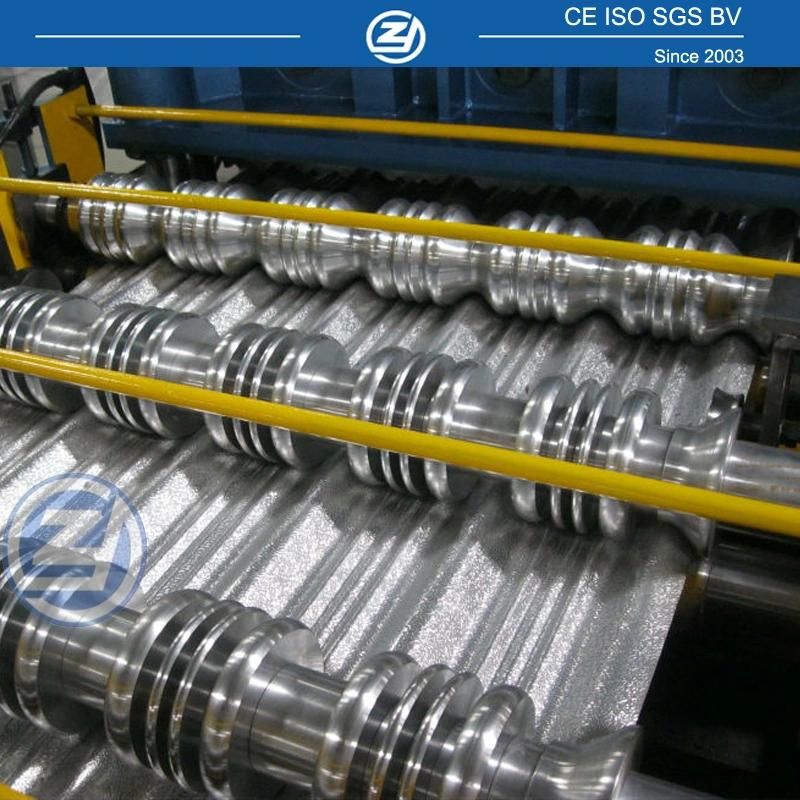

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Type：Cut to Length
• Guarantee Time：First Year Free, Lifetime Services
• Quality Warranty：ISO
• Controlling System：Mitsubishi PLC & Converter
• Shaft Diameter：72mm Solid Steel
• Main Motor：7.5kw
• Machine Weight：About 10t

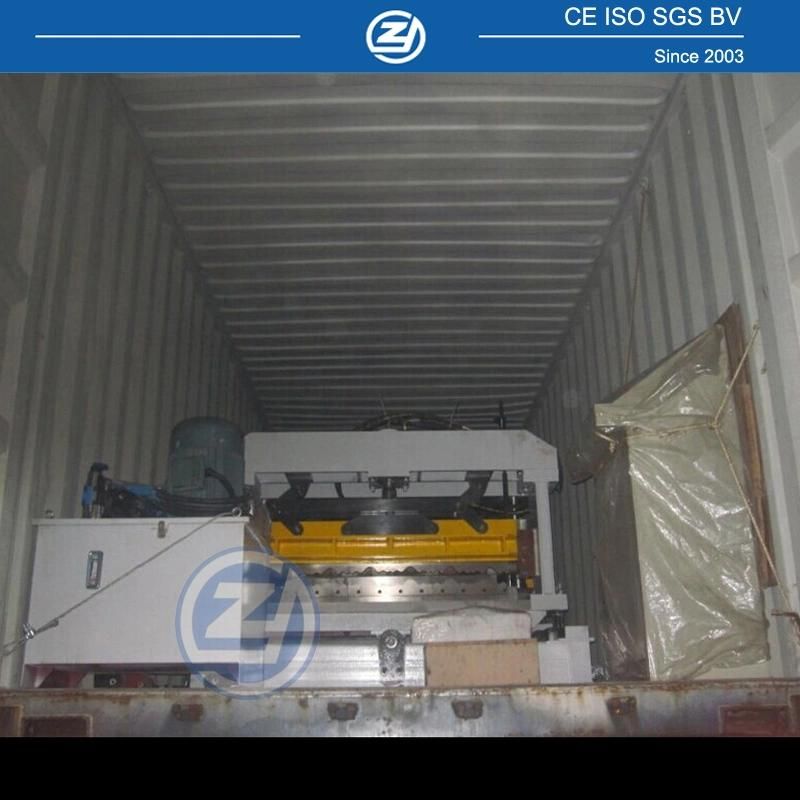

• Transport Package：1*40ft Container
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15sets,Month

ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Forming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingLength measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)7.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)13KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)

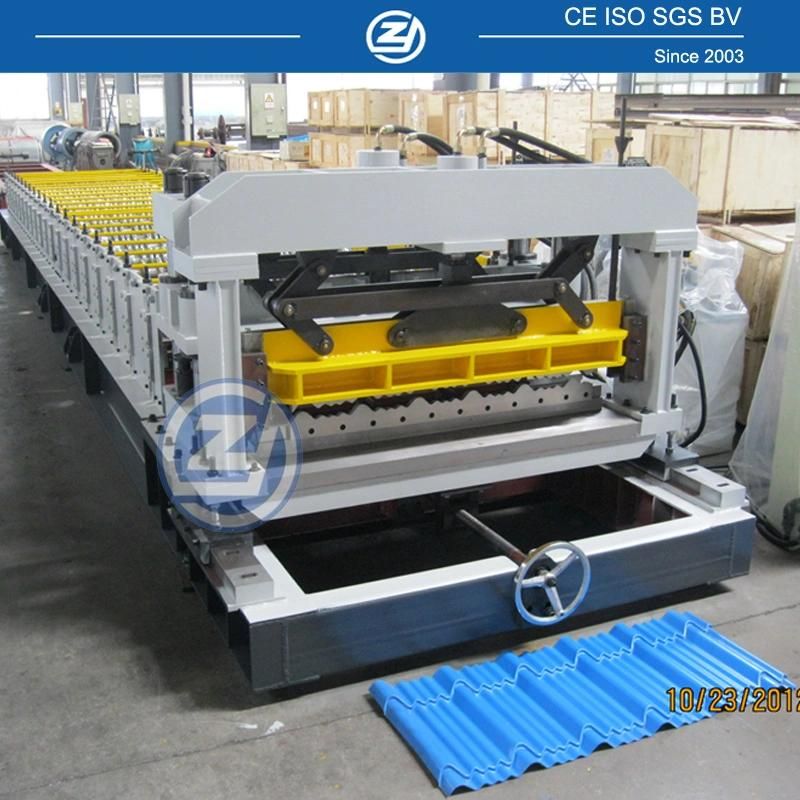

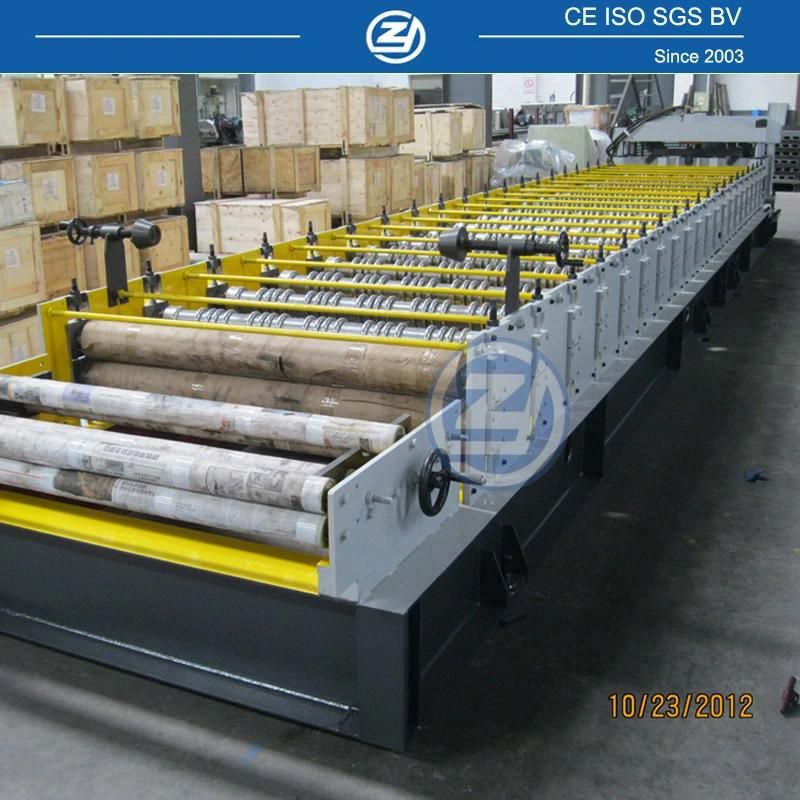

Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set







Why us?

1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.

Please feel free to contact us for more information!
