Factory Customized PPGI/PPGL Galvanized Steel Tile Metal Sheet Iron Roof Panel Color Steel Roll Forming Machine Price with ISO9001/Ce/SGS/Soncap
Hangzhou Zhongyuan Machinery Factory- Type：Mechanical Press, Tile Forming Machine
- Forging Forming Method：Roll Forming Machine
- Power Source：Electric
- Feature：Automation
- Certification：ISO9001, CE, SGS, BV, CE, ISO
- Warranty：12 Months
Base Info
- Model NO.：ZYYX Series
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Brand Name：Zhongyuan
- Model Number：Zyyx27-190-950
- Power：5.5kw
- Tile Thickness：0.4-0.6mm
- Working Speed：About 1500-2000mm,Min or 4-5m,Min. for Option
- Controlling System：Mitsubishi PLC & Converter
- Machines Weight：About 9000kgs
- Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
- Transport Package：Suitable for Sea Transport
- Specification：CE SGS BV
- Trademark：Zhongyuan
- Origin：China
- HS Code：84552210
- Production Capacity：15 Sets,Month
Description
ItemSpecification
Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.5-0.6 Yield strength(mpa) Roller material 45#Chrome steel Forming speed(m/min) About 15-20 Output speed(m/min) 5-6 Speed adjusting mode AC Frequency Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 5.5KW Total power(kw) 11KW

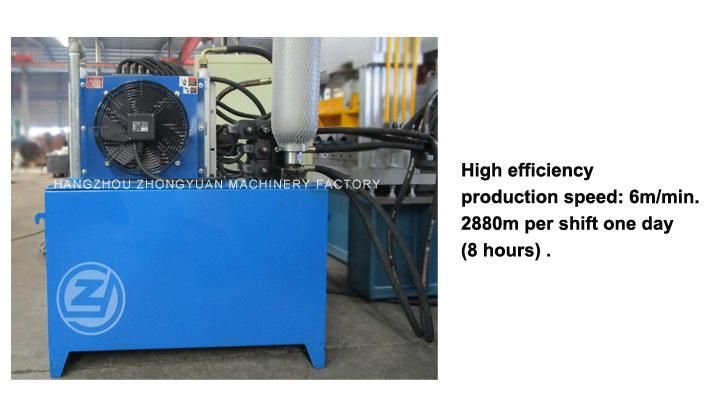

Components of machine Decoiler 1set Feeding & guiding device 1set Main roll forming machine 1set Hydraulic pressing system 1set Hydraulic cutting system 1set Controlling system 1set Run out table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table
Why choose this machine?
1. Lifetime seivices

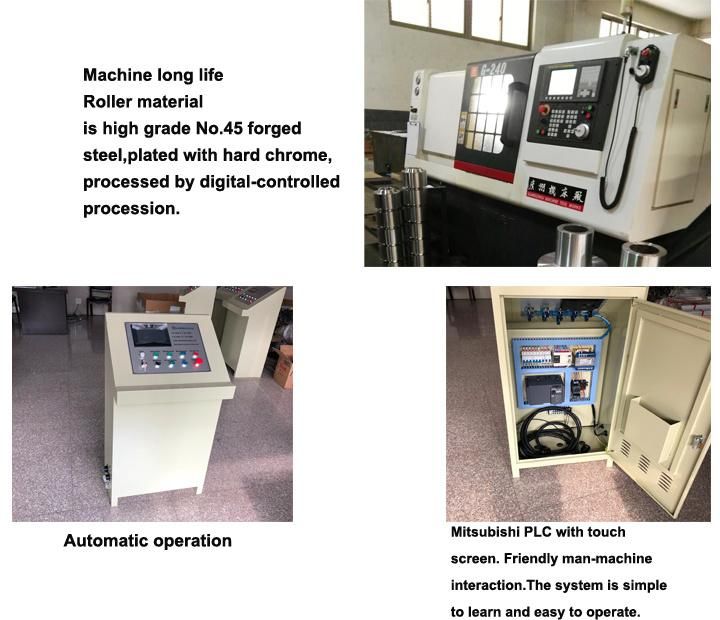

2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
Certificate:
Customer Visit:
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Contact Us:
TEL:+86-0571-82172966
+86-13867521382
Website:cnzhongyuan.en.made-in-china.com
Factory Address:No. 228 Yongli, Nanyang Street, Xiaoshan District, Hangzhou, Zhejiang, China
