AC Pipe Flaring Machine/AC Pipe Swaging Machine

Guangzhou DuroWelder Limited
  • Structure：Horizontal
  • Spinning Strength：General Spinning
  • Pressure Supply Type：Atmospheric Pressure
  • Spinning Direction：Forward
  • Metal Material：Copper
  • Riveting Principle：Orbital Models (BM Series)

Base Info

  • Model NO.：ST-EFM
  • Spinning Deformation Condition：Cold Spinning
  • Spinning Belt Wheel Type：Rolling V Type Belt Wheel
  • Finished Product：Pipe
  • Transport Package：Standard Export Package
  • HS Code：8457102000

Description

Basic Info.

Model NO. ST-EFM Spinning Deformation Condition Cold Spinning Spinning Belt Wheel Type Rolling V Type Belt Wheel Finished Product Pipe Transport Package Standard Export Package HS Code 8457102000

Product Description

AC pipe flaring machine/AC pipe swaging machine

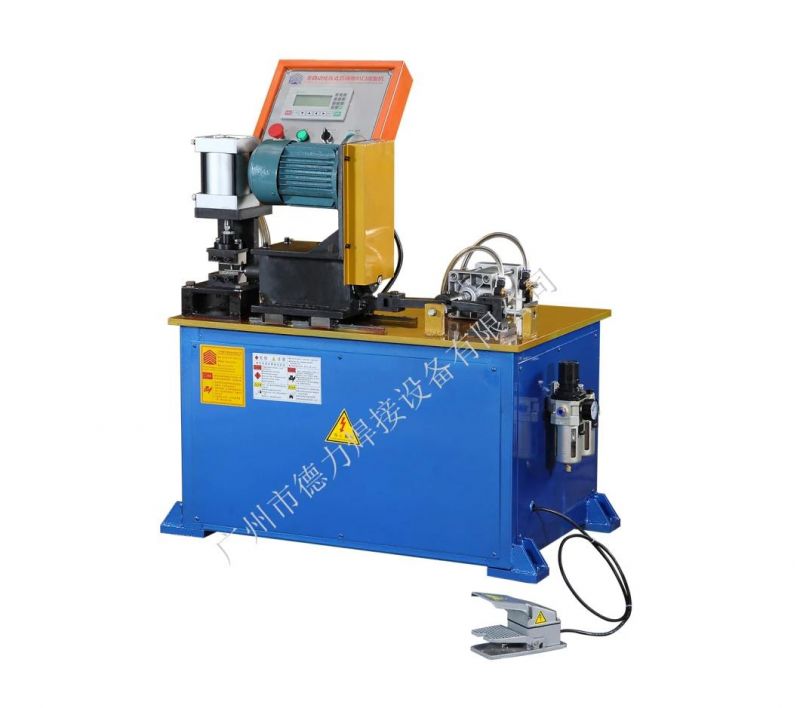

AC Pipe Flaring Machine/AC Pipe Swaging Machine
AC Pipe Flaring Machine/AC Pipe Swaging Machine

Main Characteristics and Applications

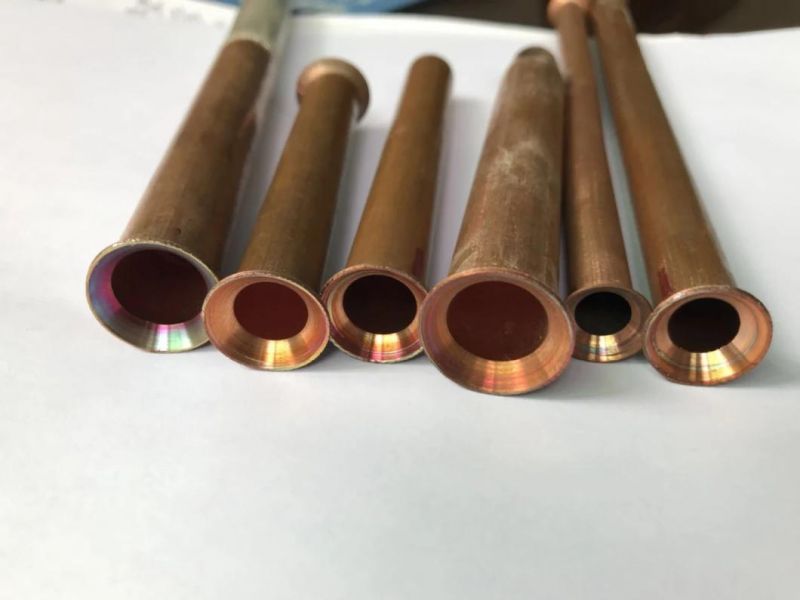

Trumpet Tube End is often used in the pipe connecting and welding of the condenser and evaporator.
As to the flaring shape, the size should be proper, too big size will cause crack, too small size leads to insufficient contact area, it should be uniform, smooth, no scratches, no burr.
Automatic Pipe End Flaring Machine is mainly used for machining the copper or aluminum pipe end into flaring shape by high speed spinning and pressing way, compared with the mechanical forging way, the tube end will be much more smooth, flat, no rupture.

Main Technical Parameters
Copper & Al Pipe Diameter3-35MM
Copper & Al Pipe Length≥100MM
Driving ModePneumatic or Electrical
Processing ModeCold-forging+Spinning
Producing and Processing Efficiency1-5Seconds/PC
Input Voltage220V / 380V / 440V / 480V, 50/60Hz
Machine Weight350KG
