High Quality Low Price  Wire Drawing Machine for Making Nails

Wuxi Shenda Nail Machinery Factory
  • Usage：Draw Raw Steel Wire
  • Transport Package：Plywood Box or Customized
  • Specification：1700x1150x1750mm
  • Trademark：Shenyida
  • Origin：China

Base Info

  • Production Capacity：100sets, Month

Description

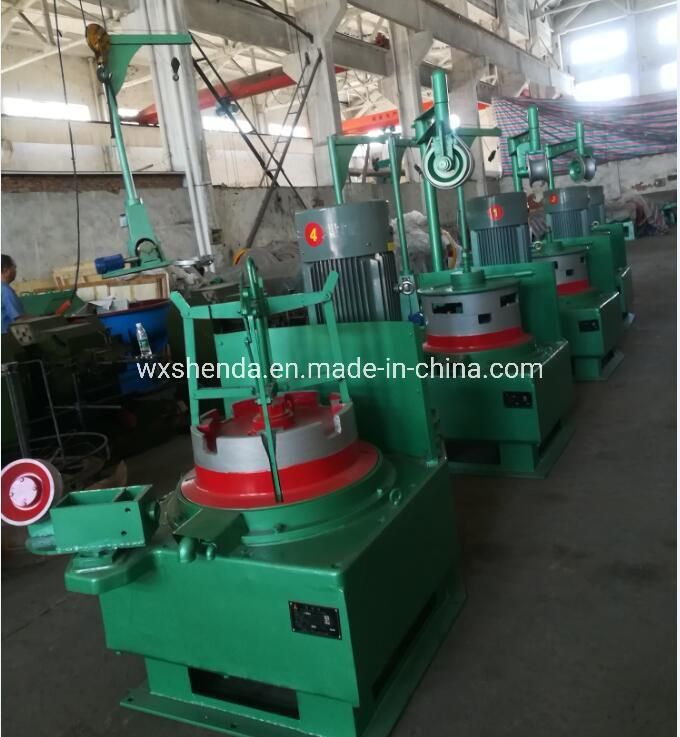

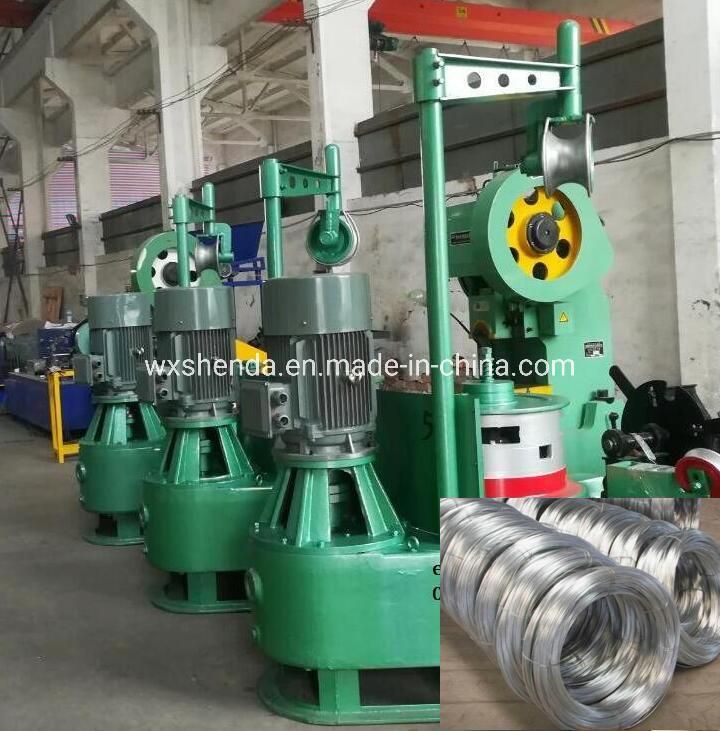

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm

High Quality Low Price  Wire Drawing Machine for Making Nails
High Quality Low Price  Wire Drawing Machine for Making Nails
High Quality Low Price  Wire Drawing Machine for Making Nails

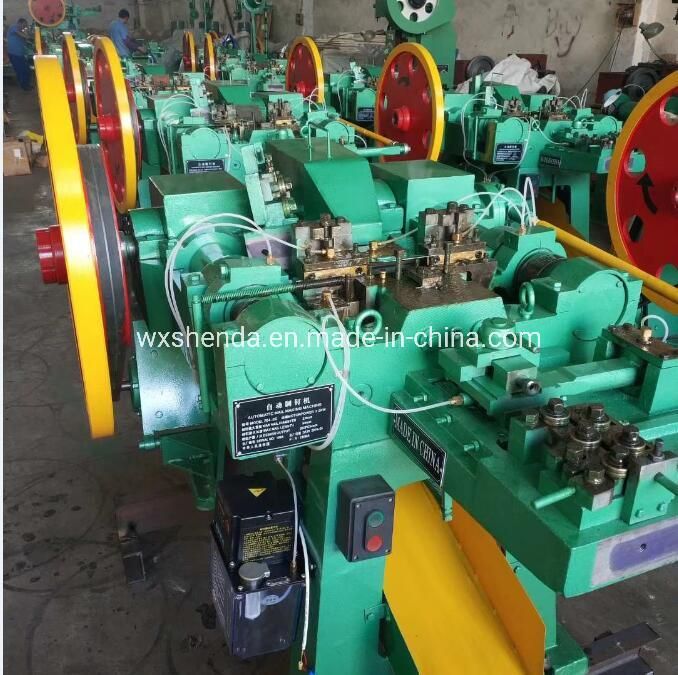

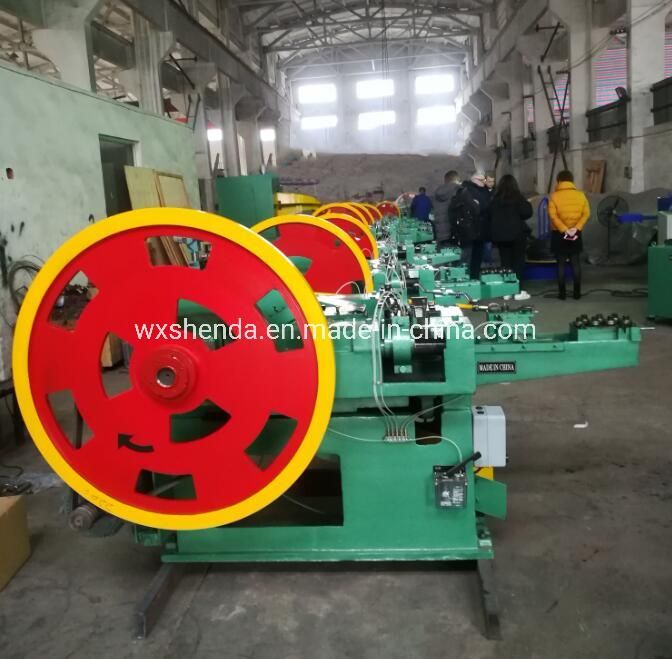

Nail Making Machines

This machine adopts plunger type stricture so as to ensure the features such as high

speed,low noise and less impact . Especially , it can make the high quality of oil rivet nail, roofing nails, U nails and double-head nails.

Each model machine could make different kinds size nail,the nail length could adjust on machine and nail diameter need feed with related diameter coil wire.

Each nail making machine supply related nail mould ,nail knife and punch pin ect spare parts.

ModelZ94-1CZ94-2CZ94-3CZ94-4CZ94-5.5CZ94-6.5CMax. dia. of nail1.6mm2.8mm3.5mm4.5mm5.5mm6.5mmMin. dia.of nail0.9mm1.2mm1.8mm2.8mm3.1mm4.5mmMax. Length of nail25mm50mm75mm100mm150mm200mmMin. length of nail9mm16mm30mm50mm80mm100mmMotor power1.5kw2.2kw3kw4kw5.5kw11kwNail making speed450pcs/min350pcs/min320pcs/min260pcs/min200pcs/min180pcs/minL*W*H1.5*1.3*1.2m1.7*1.3*1.4m2.0*1.4*1.4m2.2*1.6*1.65m2.5*1.6*1.5m3.5*1.9*1.8Weight1.2tons1.45tons1.8tons2tons2.3tons5.5ton

High Quality Low Price  Wire Drawing Machine for Making Nails
High Quality Low Price  Wire Drawing Machine for Making Nails
High Quality Low Price  Wire Drawing Machine for Making Nails

Our company services
All produts purchased in our company are one year guarranty(except spare parts).
If quality problems happen within guarantee period, our company will repair for free.

To insure machine in good condition, we will 100% test and adjust the machine before delivery, so you
can use directly when you get it. Also production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is
available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.

Also we promise;

a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
