Second Hand Used Wire Nail Making Machine in India
Wuxi Shenda Nail Machinery Factory- Usage：Making Kinds of Nails
- Advantage：New Techonology New Generation
- Transport Package：Plywood Box or Customized
- Specification：different size different weight
- Trademark：Shenda
- Origin：China
Base Info
- Production Capacity：100sets, Set
Description

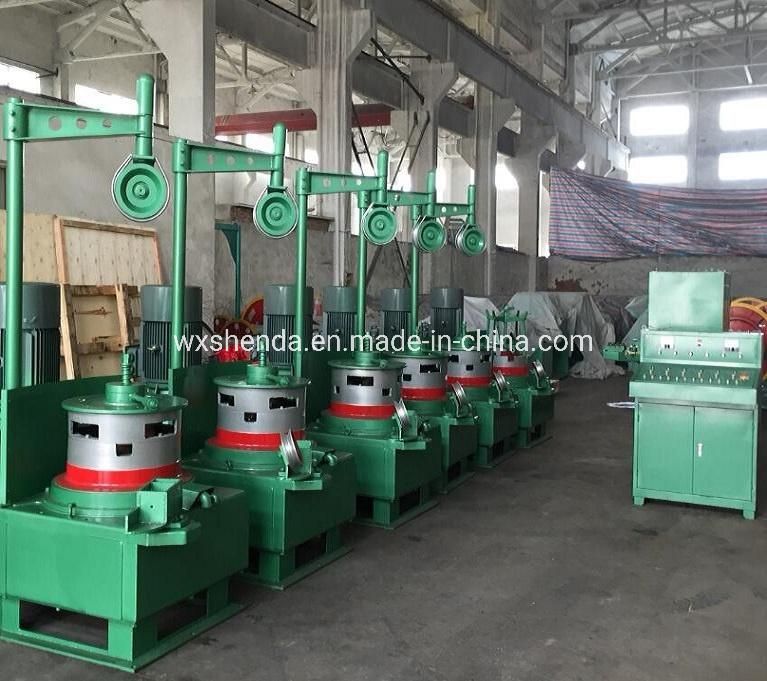

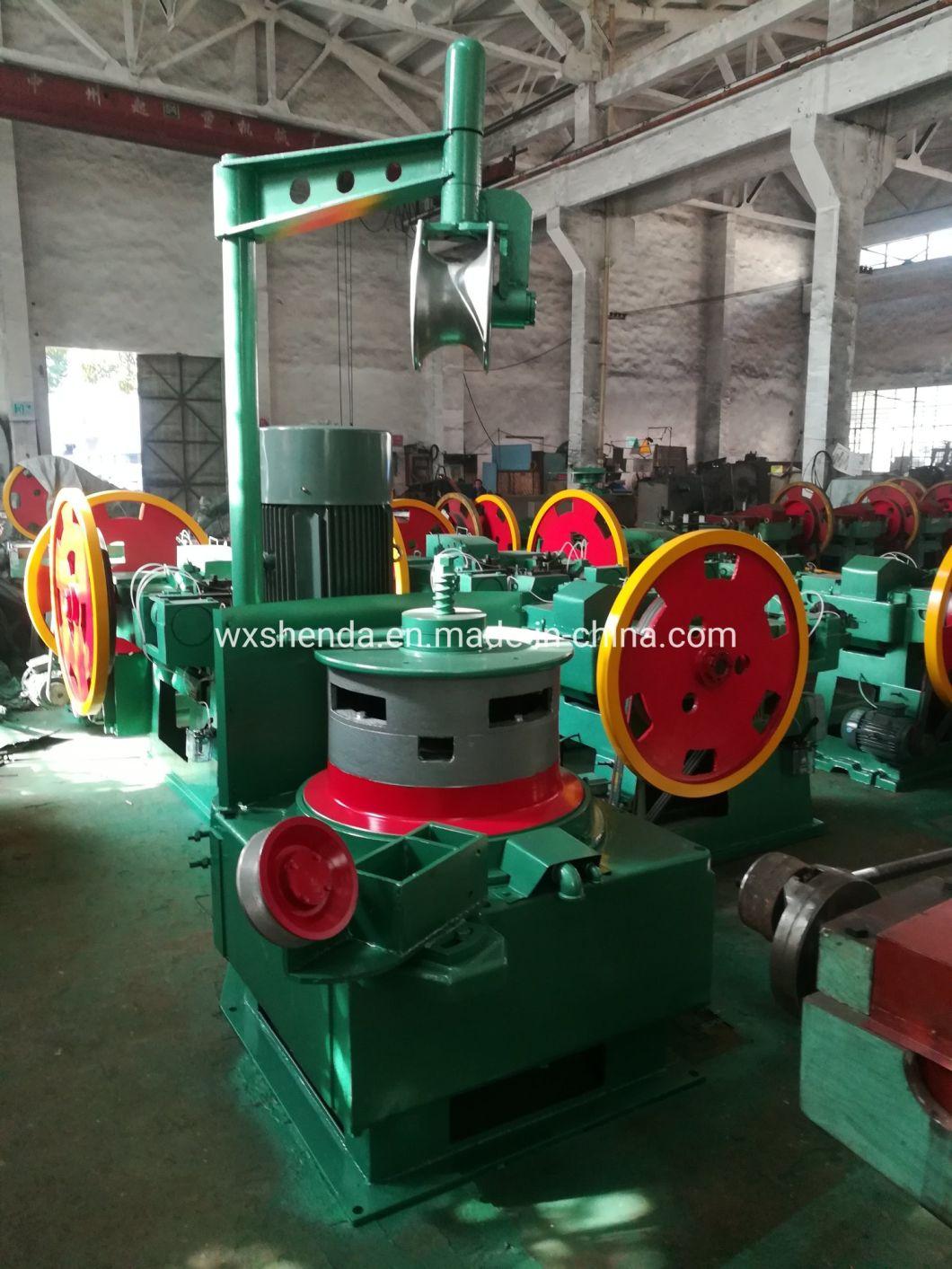

Continuous Multi-block Type
Model
LW- 1-6/ 560
LW-1-7/450
LW-1-6/350
Tensile strength of wire rod
110kg/mm2
128/mm2
140/mm2
Max. dia. of wire rod
6.5mm
3.4mm
2.5mm
Min. dia. of wire wire
2.5mm
1mm
0.75mm
Typical configuration
LW1- 6/560
LW1-7/450
LW1-6/350
Max. average reduction
30%
20%
21%
Designed total reduction
78-88.5%
78%
Max. speed of block
245 m/min
346.9 m/min
200 m/min
Total power
18.5-30kw
7.5-11kw
7.5-11kw
Weight
2000
1500
1000
Overall dimensions(LxWxH)
170x115x175cm
152x81x170cm
140x80x150cm

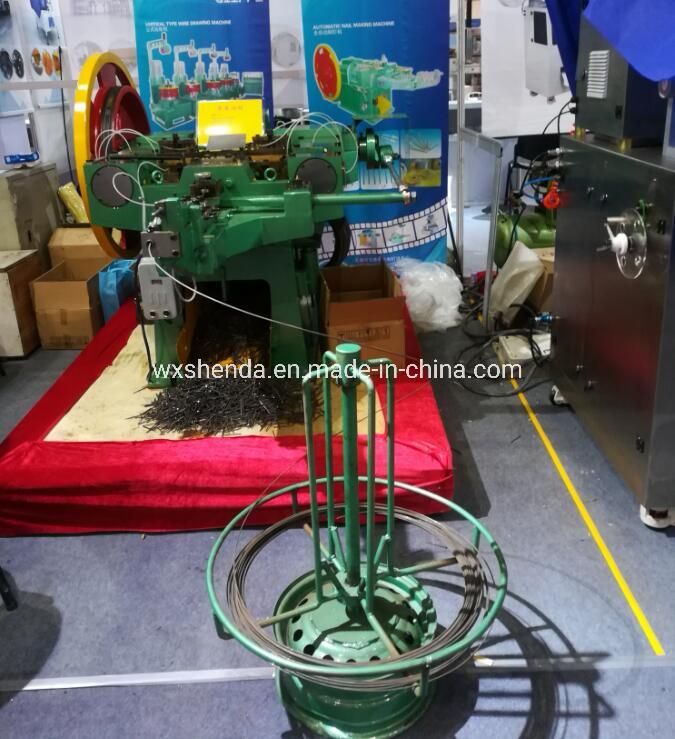

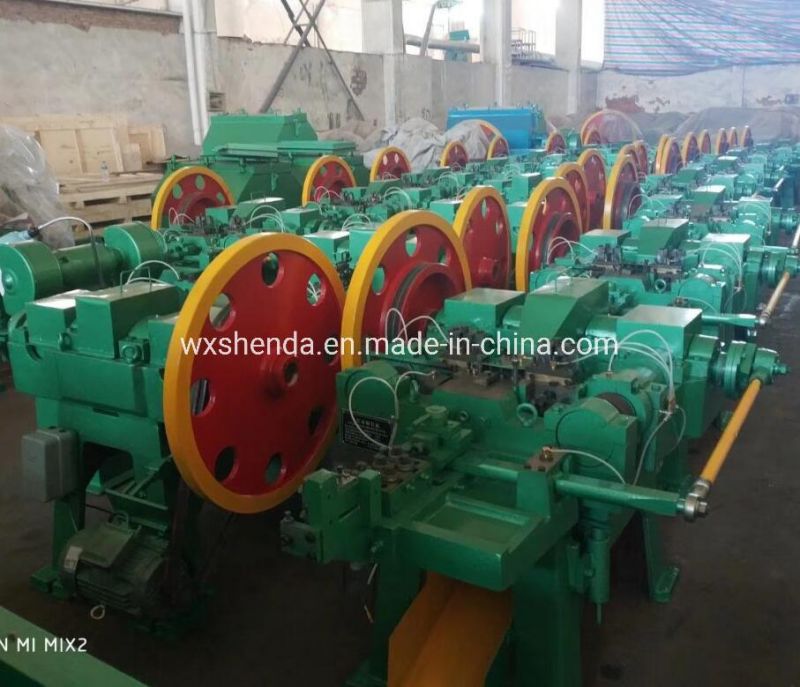

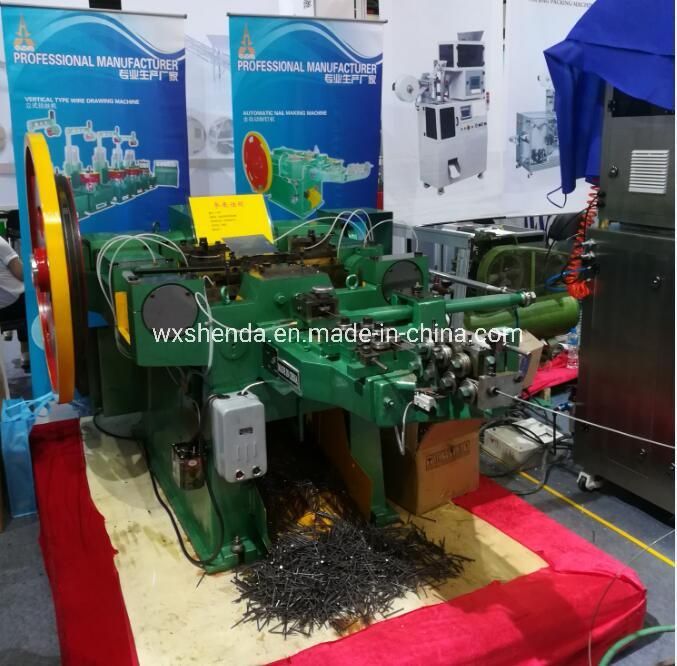

Fourth, nail making machine is used to make all kinds of nails. we just need to put the fine dia
wire into the entrance of the nail making machine. It will make nail making fully automatically.
| Model | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C | Z94-6.5C |
| Max. dia. of nail | 1.6mm | 2.8mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm |
| Min. dia. of nail | 0.9mm | 1.2mm | 1.8mm | 2.8mm | 3.1mm | 4.5mm |
| Max. Length of nail | 25mm | 50mm | 75mm | 100mm | 150mm | 200mm |
| Min. length of nail | 9mm | 16mm | 30mm | 50mm | 80mm | 100mm |
| Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 11kw |
| Nail making speed | 450pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min | 180pcs/min |
| L*W*H(m) | 1.5*1.3*1.2 | 1.7*1.3*1.4 | 2.0*1.4*1.4 | 2.2*1.6*1.65 | 2.5*1.6*1.5 | 3.5*1.9*1.8 |
| Weight | 1.2tons | 1.45tons | 1.8tons | 2tons | 2.3tons | 5.5ton |

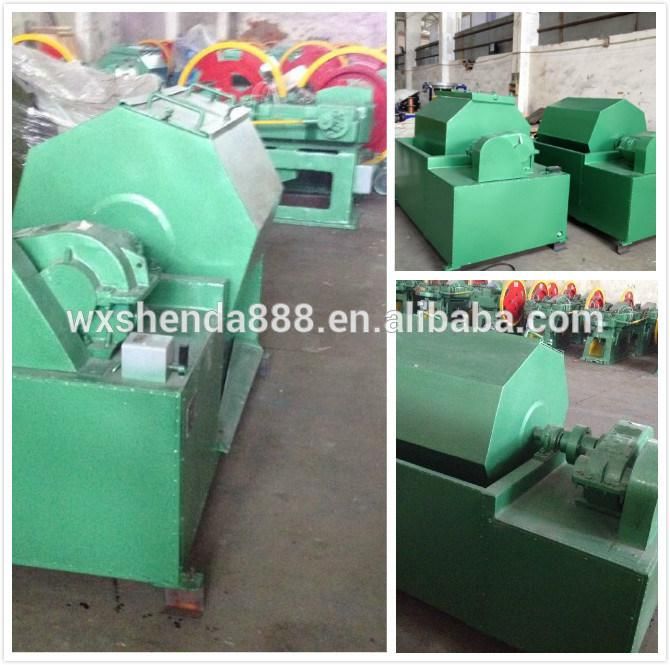

Fifth, nail polihsing machine is used to make the nail brighening and clean.
Our Overseas Customer
Customers from South Arica~Ethiopia~Algeria~Bennin~Zimbabwe~Nigeria~Tanzania~UAE~Egyp~Morocco~Thailand~Vietman~India-Chile~Brazil......
Why Choose Us
~ISO&CE manufacturer since 1995
~professional team & professional service 7x24hours
~strict inspection and 100% testing for machine producing
~engineers available overseas if you need any help
~refund to you if any problem caused by machine quality itself
~Customer first and good quality as our factory lifeblood
How to Contact us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
