• Model NO.：HX6020
• Design System：Auto-CAD, Caxa
• Nesting Software：Fastcam
• Power Supply：USA Hypertherm or China Huayuan
• Control System：Starfire, Flmc-F2300A
• File Transmission：USB
• Voltage：380V,220V
• Product Name：Plasma Cutting Machine
• Transport Package：Packing:Plywood Case After Packed by Wrapping Film
• Specification：6000mm*400mm
• Trademark：HUAXIA
• Origin：Shandong, China (Mainland)
• HS Code：8456401000
• Production Capacity：30sets,Mouth

Basic Info.

Model NO. HX6020 Design System Auto-CAD, Caxa Nesting Software Fastcam Power Supply USA Hypertherm or China Huayuan Control System Starfire, Flmc-F2300A File Transmission USB Voltage 380V/220V Product Name Plasma Cutting Machine Transport Package Packing:Plywood Case After Packed by Wrapping Film Specification 6000mm*400mm Trademark HUAXIA Origin Shandong, China (Mainland) HS Code 8456401000 Production Capacity 30sets/Mouth

Product Description

Product introduction:

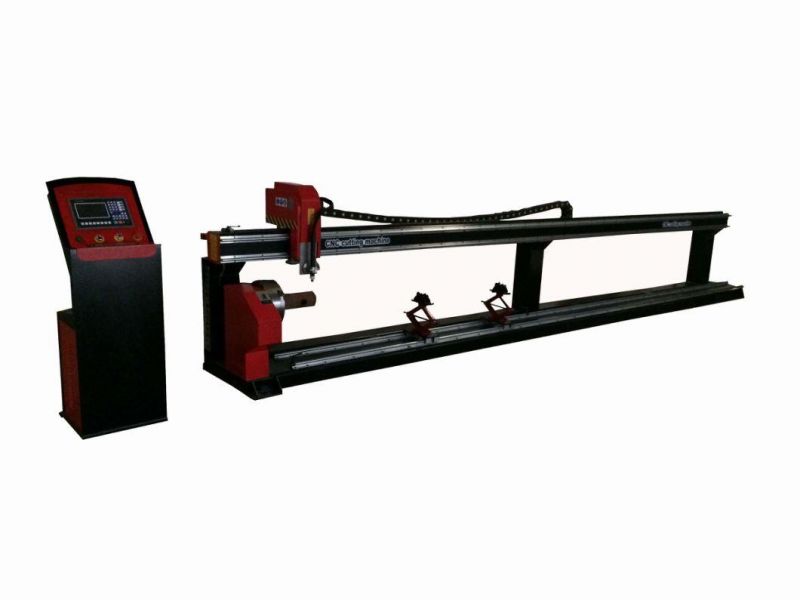

CNC plasma cutting machine
CNC plasma cutting machine can used for tube plate of carbon steel, stainless steel, copper, aluminum and other metal plane graph cut, also can be used for circular tube cut, can cut all kinds of graphics on the circular pipe .
With a high degree of automation, high precision, fast cutting speed, good cutting effect, low cost, widely used in petroleum, chemical, lighting, machinery, pressure vessels, aerospace etc.

Parameters

Cutting graphics	All kinds of plane figure
Cutting speed	0-4000mm/min
Round tube speed	0-4000mm/min
Cutting method	Plasma /flame
Cutting area	X:1500mm,Y:2500mm/3000mm
Cutting thickness	Flame :6-200mm, Plasma :1.5-20mm(according to the plasma power supply)
Thickness of circular tube	Flame :6-80mm,plasma1-20mm (according to the plasma power supply)
Max tube diameter	0-250mm(can be customized )
Cutting length	According to different machine size
Cutting precision	±0.5mm
NC programming	Support AUTOCAD/TYPE3/CAXA/SOLIDWORKS etc.
File transfer	U disk
Power supply voltage	220V 50HZ /plasma:380V
Work environment temperature	temperature:-10ºCto +60ºC, relative humidity:0-95%No condensation

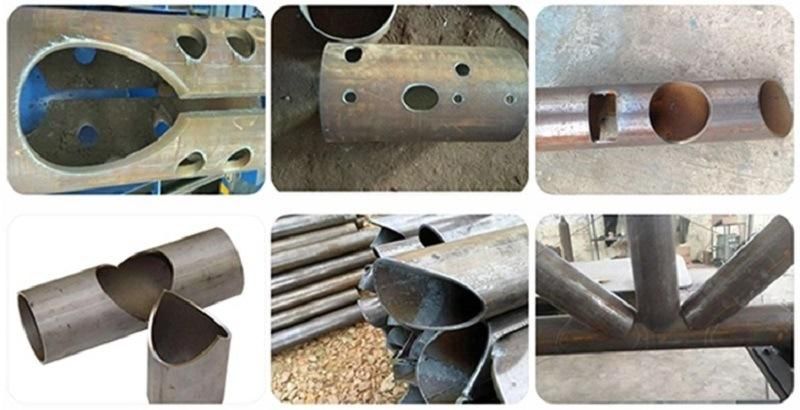

Application

What is a CNC plasma round tube cutting machine used for?

1. Suitable materials: Iron round tubes, Aluminum round tubes, Galvanized round tubes, Stainless round tubes, Titanium plates, etc.

2. Application industries: Case shell of mechanical and electrical products processing, advertising signages, process decoration, black smith gardens, automobile, shipbuilding, electrical accessories cutting and processing, welding industry, etc.
