• Model NO.：580T
• Y Axis Resolution：0.001mm
• C-Axis Resolution：0.001°
• Worktank Inner Dimensions：1264*764*427
• Oil Tank Dimensions：2450*800*440
• Transport Package：Wooden Case
• Specification：CE and SGS
• Trademark：Lead
• Origin：China
• Production Capacity：50 Sets a Month

Basic Info.

Model NO. 580T Y Axis Resolution 0.001mm C-Axis Resolution 0.001° Worktank Inner Dimensions 1264*764*427 Oil Tank Dimensions 2450*800*440 Transport Package Wooden Case Specification CE and SGS Trademark Lead Origin China Production Capacity 50 Sets a Month

Product Description

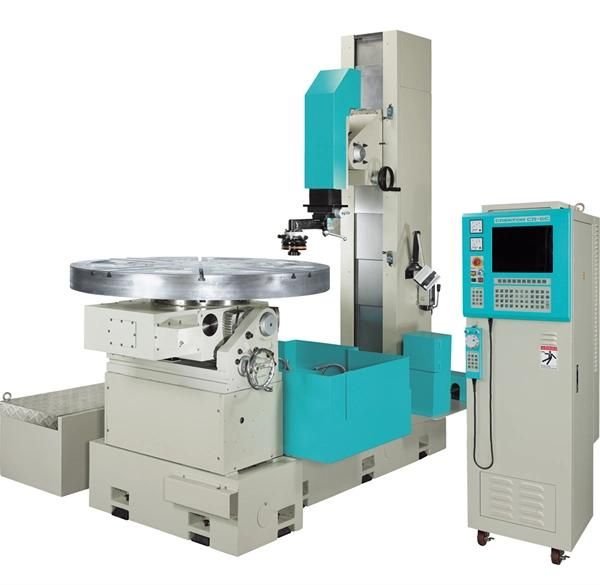

 CREATOR 580T high precision tire mold engraving machine
Main Unit Features:1. Designed for radial segmented parting tire molds.
2. The worktable equipped with encoders can ensure positioning accuracy.
3. The worktable can be rotated and tilted to meet the machining requirement for side patterns of radial parting mold and stamping steel plate.
4. Z axis permits tilting for efficient residue exhaust, while upgrading machining stability and efficiency.
5. Micrometer adjustment on X1 and Y axis for ease of electrode setup.
6. The work head can be moved to the side for convenient mold setup.

Encoder:
The table tilting mechanism is equipped with an encoder, ensuring high positioning accuracy of mold.

Tilting Table:
The table can be tilted 0-90° , allowing for convenient mold setup.

Controller:
Features of CNC Control:
The control employs INTEL PENTIUM industrial grade master board.
15" TFT LCD monitor.
Conversational operation interface.
Automatic table type editing for 10-step machining programs creation.
Tungsten steel, extra hard and special material eroding circuit.
Graphite machining circuit is ideal for machining bronze and graphite.
MPG handwheel for micrometric positioning adjustment. (Optional)
Unlimited machining programs fully meet flexible machining requirements such as various angles and patterns of tire molds.
Relative coordinate, absolute coordinate and constant indexing function make the machine suitable for machining any tire mold.
Random home position function. Machining home position can be set as desired.
Specially designed protection function to prevent electrode from bumping against the mold.
Indexing accuracy 0.001° .
Allows for inconsistent indexing machining.

Standard Accessories:
1. Tool box
2. Halogen lamp
3. Remote controller
4. Filter
5. Magnetic nozzle
6. Optical scale
7. Extended electrode holder
8. Operation manual

Optional Accessories:
1.4-jaw chuck
2. Erowa or 3R chuck
3. Oil cooler
4. Automatic fire extinguisher
5. MPG handwheel box
6. Jigs for tire mold
7. Grease gun.

Specifications:

CNC600T
X-axis turning angle	degree	0-90
Table travel (X1-axis)	mm	70
Table travel (Y-axis)	mm	480
Table travel (Z-axis)	mm	180
Quill travel (Z1-axis)	mm	890
Worktable dimension	mm	1300
C-axis angle	degree	360
W-axis(Z-axis F/B) revolving angle	degree	Front 40° /Back 40°
W1-axis(Z-axis L/R) revolving angle		Left 30° /Right 30°
X-axis resolution	mm	0.05
Y-axis resolution	mm	0.001
Z-axis resolution	mm	0.001
C-axis resolution	degree	0.001
Control type (C-axis)		semi-closed loop
Max. Electrode weight	kg	40
Max. workpiece weight	kg	800
Max. workpiece diameter	mm	1200
Max. workpiece thickness	mm	470( with jigs)
Work tank inner dimensions (WxDxH)	mm	1264x764x427
Oil tank dimensions (WxDxH)	mm	2450x800x440
Max. Capacity of dielectric fluid	liter	800
Machine unit weight( including indexing table)	kg	4500
