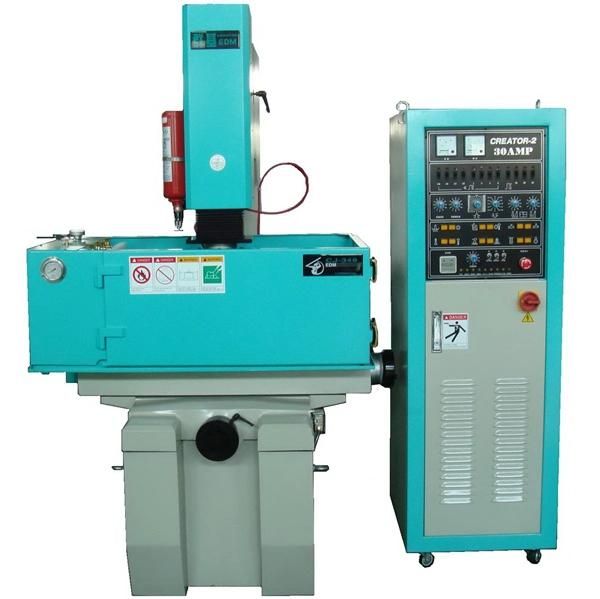

Creator Economic Electric Discharge Machining
Creator Industry (Suzhou) Co., Ltd.- Table Travel(X Axis) Mm 400：400mm
- Table Travel(Y Axis) Mm 300：300mm
- Quill Travel(Z1 Axis)：220mm
- Work Head Travel(Z2 Axis)：210mm
- Work Table Dimensions(Lxw)：700*360mm
- Work Tank Inner Dimensions(Wxdxh)：926*576*394mm
Base Info
- Model NO.：cj340 cr2
- Max. Capacity of Dielectric Fluid：380litre
- Max. Electrode Weight：75kg
- Max. Workpiece Weight：900kg
- Machine Unit Weight Kg 1100：1100kg
- Transport Package：Wooden Case
- Specification：CE,SGS,ISO9001
- Trademark：LEAD
- Origin：China
- Production Capacity：30 Sets,Month
Description
3 V220.346 220.346 220.346 220.346 220.346 220.346 220.346 220.346 220.346 380.415 380.415 380.415 380.415 380.415 380.415 380.415 380.415 380.415 Input power KVA 3 5 8 10 7 10 15 20 30 Working voltage(No load) V 100 100 100 100 100 100 100 150 250 High voltage V 210 150 or 270 150 or 270 150 or 270 140 or 250 140 or 250 140 or 250 140 or 250 140 or 250 Min. ON time µ S 2 1 1 1 1 1 1 1 1 Min. OFF time µ S 2 1 1 1 1 1 1 1 1 Max. Cutting speed mm3/min 220 480 720 1050 480 720 1050 1500 2500 Best surface finish µ mRa. 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 Min. Electrode wear rate % 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 Weight kg 170 200 230 350 210 248 360 490 700
Specification of Machine:
Specification of Machine:
| Model | CJ340 | |
| Table travel(X axis) | mm | 400 |
| Table travel(Y axis) | mm | 300 |
| Quill travel(Z1 axis) | mm | 220 |
| Work head travel(Z2 axis) | mm | 210 |
| Work table dimensions(LxW) | mm | 700x360 |
| Work tank inner dimensions(WxDxH) | mm | 926x576x394 |
| Max. capacity of dielectric fluid | Liter | 380 |
| Max. electrode weight | kg | 75 |
| Max. workpiece weight | kg | 900 |
| Machine unit dimensions(WxDxH) | mm | 1200x1300x2150 |
| Machine unit weight | kg | 1100 |
