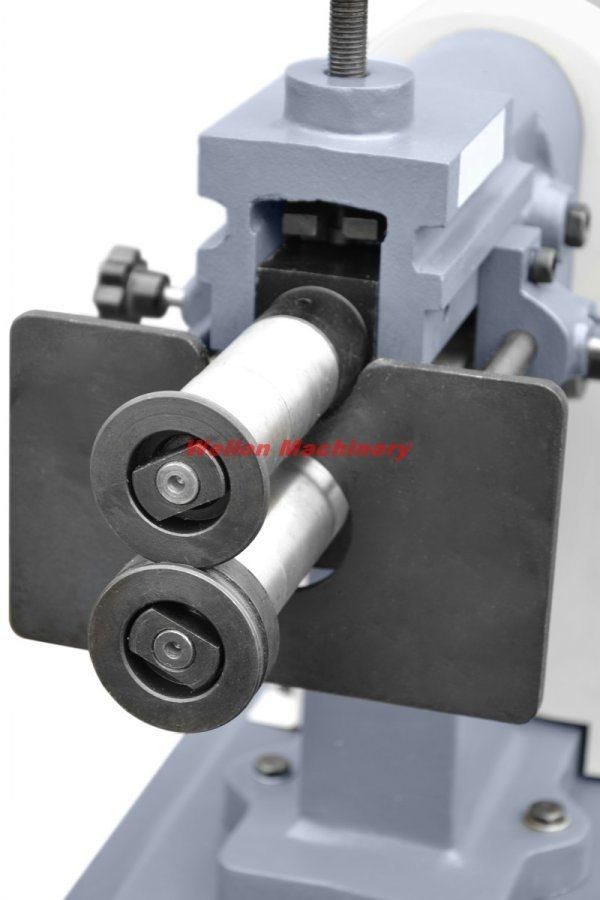

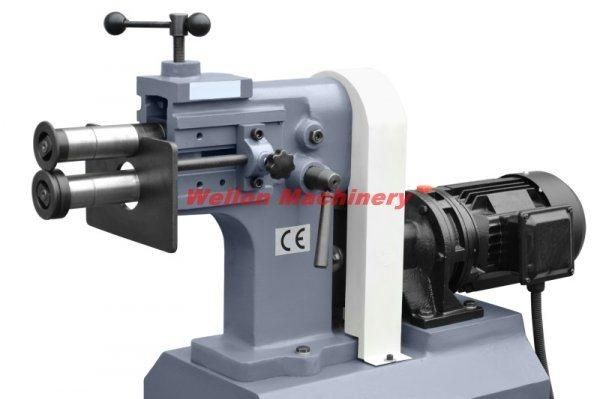

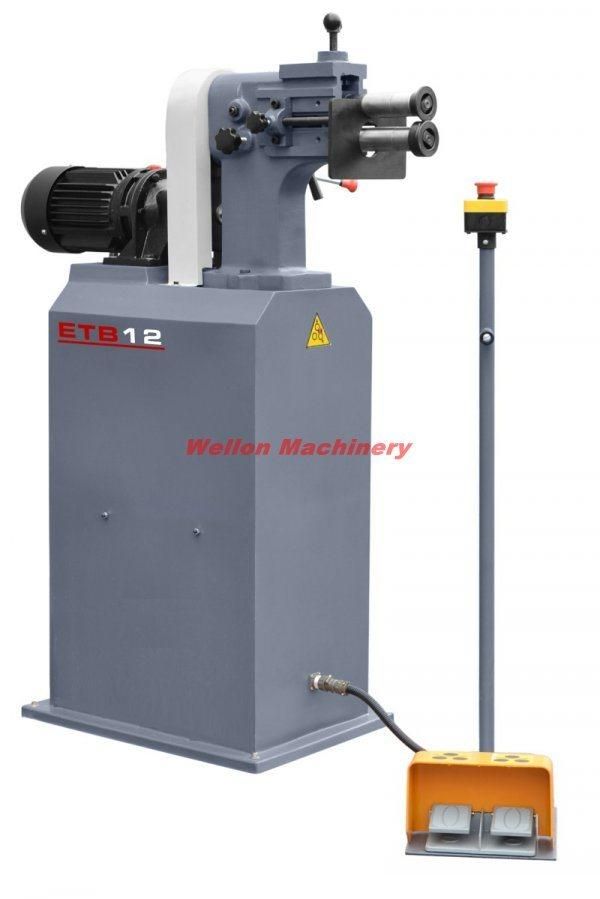

Automatic Bead Bending Machine, Sheet Metal Beading Machine (ETB-12) Electric Bead Bender Roller
Tengzhou Wellon Machinery Co., Ltd.- Type：Bead Bender
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：ETB-12
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Thickness(mm)：1.2
- Cylinder Length：140
- Transport Package：Wood Case
- Specification：CE ISO9001 Rohs
- Trademark：WELLON
- Origin：Tengzhou, China
- HS Code：84623990
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. ETB-12 Customized Customized Advantage Easy to Maintenance Condition New Thickness(mm) 1.2 Cylinder Length 140 Transport Package Wood Case Specification CE ISO9001 Rohs Trademark WELLON Origin Tengzhou, China HS Code 84623990 Production Capacity 50 PCS/MonthProduct Description
Performence Features: 1. The Bead bending machine makes swagged plate, connection and so on of circular pipes,
which refer to crushing the thin plates into the ribs in certain shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3. Heavy and solid cast iron construction
4. Special steel adjustable bottom spindle
5. Self braking motor with subframe
6. Easy to operate with foot pedal control
7. 4 sets standard rollerTechnical Parameter:
| Model | ETB-12 |
| Max. thickness | 1.2mm/18Ga |
| Cylinder length | 140mm/5-1/2´´ |
| Throat depth | 200mm/8´´ |
| Cylinder speed | 32rpm |
| Motor power | 0.75kw/1 hp |
| Net weight | 120KG/265 lb |
| Packing size | 1100×480×1480 mm |
