Intermediate Small Copper Wire and Cable Drawing Machine

HOOHA Co., LIMITED
  • After-sales Service:Online Service
  • Warranty:12 Months
  • Type:LW Pulley Type Metal Drawing Machine
  • Usage:Wire, Prestressed Steel Wire
  • Metal Material:Copper
  • Outlet Diameter:0.1-1.2mm

Base Info

  • Model NO.:HH-17DHT
  • Max.Inlet Wire Dia.:8mm
  • Block Dia.:500mm
  • Max. Number of Block:21
  • Certification:REACH, RoHS, ISO
  • Condition:New
  • Certificate:ISO
  • Motor:Germany-Siemens
  • Bearing:Japan-NSK
  • Inverter:Siemens
  • Electric Element:Siemens and Omron
  • Control Box:International Standard
  • Transport Package:Plastic Package
  • Specification:CE ISO SGS
  • Trademark:HOOHA
  • Origin:Dongguan
  • HS Code:8479400000
  • Production Capacity:3 Sets,Month

Description


Type
17DHT
Power control
Dual-inverter
Input wire
Φ0.8-Φ1.5mm
Output wire
Φ0.2-Φ0.5mm
Maximum line speed
1800M/min
Maximum number of dies
17
Mechanical elongation
15%+8.7%
Construction of the machine body
Casting +steel plate welding
Final capstan
Φ206
Take-up reel
Φ300, Φ400
Traverse
Flat belt
Drawing/take-up motor
AC 15kW/AC 4kW
Drive
Imported advanced flat belt drive
Correction system
PIDAutomatic control of take-up by PID
Tension adjustment
Weight type tension pulley
Maximum copper load
50kg
Power supply
380V, 50/60HZ
Annealing capacity
25KVA
Brake
Magnetic brake
Volume of lubricant
40L/min
Lubrication of wire drawing
Spraying
DimensionsL×W×H
1650×1100×2050mm
Weight
ca.3000kg
Intermediate Small Copper Wire and Cable Drawing Machine

Spare Parts Brands:

Motor: Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Intermediate Small Copper Wire and Cable Drawing Machine

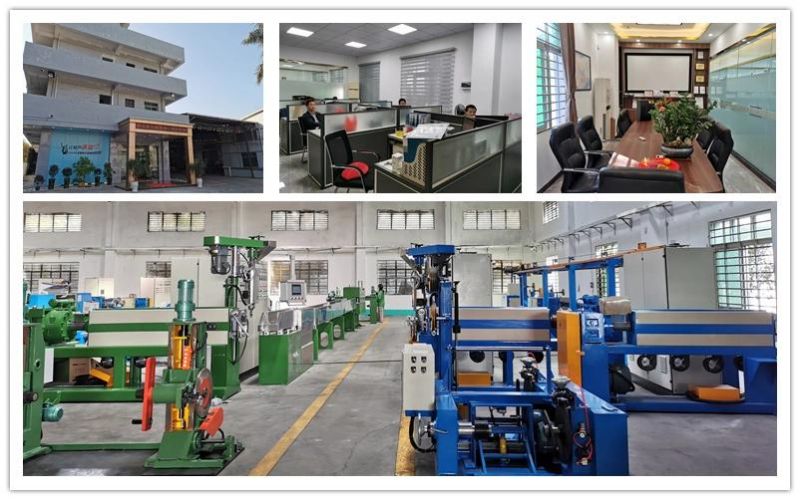

Factory & Workshop & Warehouse
Intermediate Small Copper Wire and Cable Drawing Machine
Intermediate Small Copper Wire and Cable Drawing Machine


After Service:

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online


Contact us:
Jack Young


Facebook: https://hoohaco.en.made-in-china.com
hoohaco.en.made-in-china.com

Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.
Intermediate Small Copper Wire and Cable Drawing Machine

Why Choose Us?


1.We are the cable equipment manufacturer.
2.Professional engineer,long term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
7. Every product with be with tailor-made sketch and drawing.

Welcome to our company have a visiting and establishing cooperation business.Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history
