• Model NO.：JLCG-10KW
• Frequency：200-500kHz
• Input Voltage：3 Phase 380V
• Current：15A
• Color：White
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Key Word：Induction Annealing Heat Treatment Machine
• Important Word：Induction Annealing Heat Treatment Machine
• Transport Package：Plywood Case
• Specification：JLCG-10KW
• Trademark：JIN LAI
• Origin：Guangdong, China(Mainland)
• HS Code：8514400090
• Production Capacity：5000 Sets , Month
• Package size per unit product：145.00cm * 70.00cm * 134.00cm
• Gross weight per unit product：141.000kg

Basic Info.

Model NO. JLCG-10KW Frequency 200-500kHz Input Voltage 3 Phase 380V Current 15A Color White After-Sales Service Provided Engineers Available to Service Machinery Overseas Key Word Induction Annealing Heat Treatment Machine Important Word Induction Annealing Heat Treatment Machine Transport Package Plywood Case Specification JLCG-10KW Trademark JIN LAI Origin Guangdong, China(Mainland) HS Code 8514400090 Production Capacity 5000 Sets / Month

Packaging & Delivery

Package size per unit product 145.00cm * 70.00cm * 134.00cm Gross weight per unit product 141.000kg

Product Description

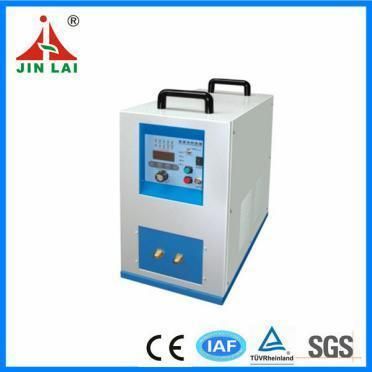

Automatic Copper Induction Annealing Machine Induction Heat Treatment Machine (JLCG-10KW)



Main Feature
1. UHF series have high frequency, able to heat materials of 0.1mm.
2. Resonant conversion of frequency technology: High efficiency, the power consumption is only 20%-50% of consumption of vacuum tube induction heating equipment.
3. MOSFET technology based, high frequency, light weight and small size.
4. Simple design: Easy installation, there is no need for regulation and convenient using.
5. Safe and Reliable: The equipment has no high voltage, operating safely.
6. Application: Heating, Welding, Melting, Quenching etc.

Technical Parametes

Model	JLCG-10KW
Input power desire	3 phase 380V  50/60HZ
Oscillate power max	10KW
Max input current	20A
Oscillate frequency	200-500KHZ
Cooling water desire	>0.2MPa  2-6L/Min
Duty cycle	100% 40°C
Dimensions(L*W*H)	620*300*530mm
Net weight	30kg
Cable length	2-6(Meters)

List Of Accessories In The Package

Item	Name of machine or parts	Specification	Amount
1	JLCG-10KW Generator	-	1 pc
2	Foot switch	3 core	1 pc
3	Induction Coils	-	2 sets
4	Coil connect pole	-	2 sets
5	Instruction Manual	-	1
6	Packing list and receipt	-	1
7	Guarantee card	-	1
8	Products certificate	-	1

Main Parts Introduction 1. Germany SIEMENS INFINEON IGBT Module.  40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2.

Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

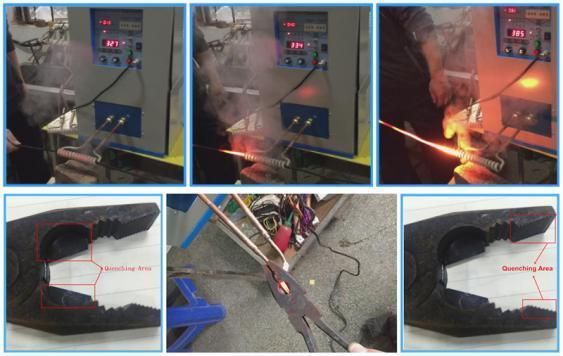

Machine Photos For Reference


Packaging&Shipping



Company Information

 Our Service
Pre-sale service
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
