• Model NO.：GC02 grooving machine
• Customized：Customized
• Advantage：Work Flexible
• Condition：Used
• Product Name：6" Roll Grooving Machine ,Hydraulic Roll Groover
• Roll Set：1 1,4"-6"
• Grooving Capacity：Sch10 1 1,4"-6", Sch40 1 1,4"-3"
• Transport Package：Carton Case
• Specification：74*30*23 CM
• Trademark：Hongli
• Origin：Zhengjiang China
• HS Code：8462490000
• Production Capacity：1000

Basic Info.

Model NO. GC02 grooving machine Customized Customized Advantage Work Flexible Condition Used Product Name 6" Roll Grooving Machine /Hydraulic Roll Groover Roll Set 1 1/4"-6" Grooving Capacity Sch10 1 1/4"-6", Sch40 1 1/4"-3" Transport Package Carton Case Specification 74*30*23 CM Trademark Hongli Origin Zhengjiang China HS Code 8462490000 Production Capacity 1000

Product Description

Product Description

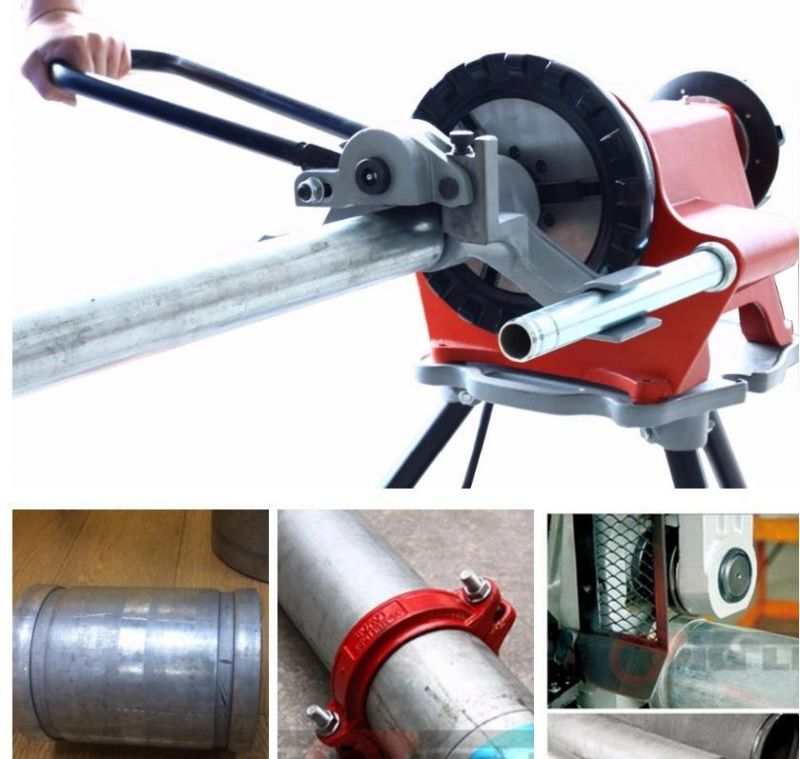

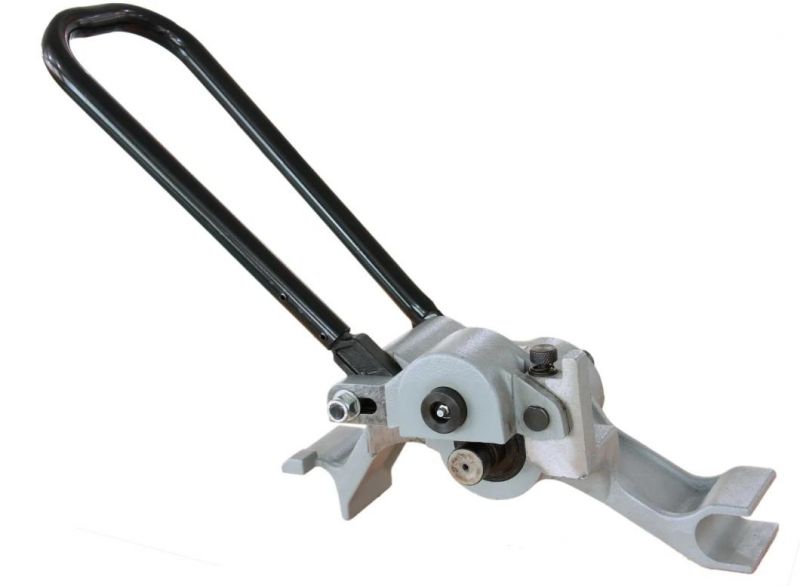

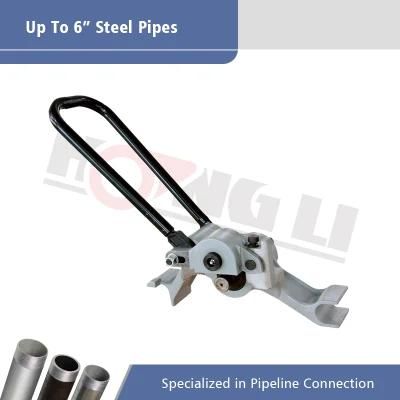

Product Application Hongli GC02 Electric Roll Groover Part For Max 6" Steel Pipes Interchangeable With Ridgid 916 Roll Groover

Features:
Cam-type feed actuation -- translated into minimum operator effort to form roll grooves.
Durable cast-iron housing withstands extensive field use.
Light weight, only 17kg. Integral feed handle is part of overall unit, no extra
tools required.
Easy serviceability - drive and groove rolls are easy to change.

Standard Equipment:
*One 1¼"-6" Roll Groove Set for steel. (1¼"-6" Sch. 10,1¼"-3" Sch. 40)

Specifications:
Capacity: 1¼"-6" Sch. 10 steel, stainless steel.
1¼"-3" Sch. 40 steel, stainless steel.
Weight: 17 kg

HS Code of GC0 Electric Roll Groover Part: 8462490000

GC02 (916)Roll groover with SQ50D(300) power drive:



Ordering Information:


Catalog.No.	Model No.	Description	N.W.:(KG)
70200	GC02	Roll groover with standard 1 1/4"-6" roll set only	17
	GC02+SQ50D	Roll groover with SQ50D power drive 110V/60HZ
	GC02+SQ50D	Roll groover with SQ50D power drive 2200V/50HZ

Accessories:

Catalog No.	Model No.	Description
	---	Roll Set for 1¼"-6"

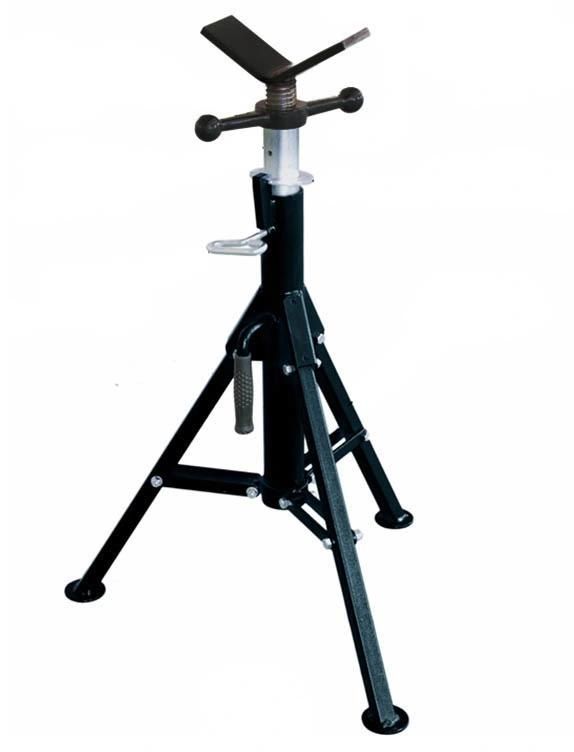

	1107	Pipe support stand (optional)

Standard Equipment:

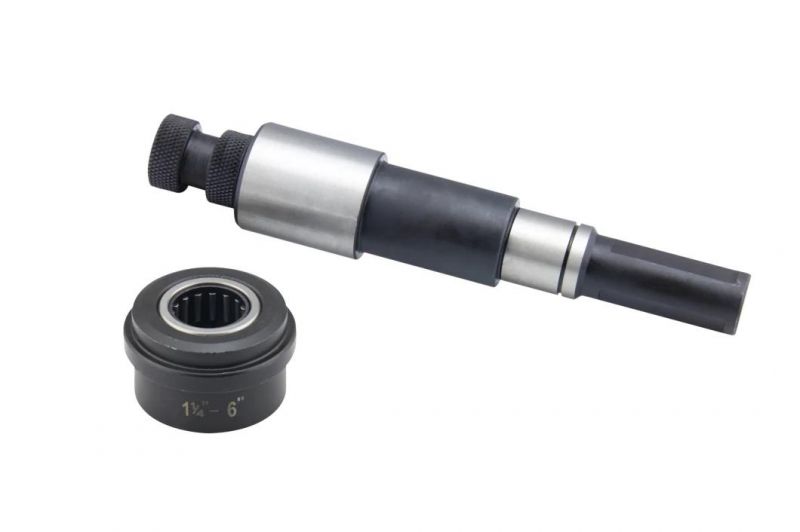

One 1¼"-6" Roll Groove Set (Roller and Shaft) for steel. (1¼"-6" Sch. 10,1¼"-3" Sch. 40)





Model 1107 Pipe Support Stand for Roll Groovers for optional

Packing & Delivery

Model No.	G.W	N.W.	Packing
GC02 Roll groover part	21.5kgs	17kgs	74*30*23 CM.
