• Model NO.：SH
• Trademark：shenghua
• Origin：Anping China
• HS Code：84633000
• Production Capacity：10000pieces, days

Basic Info.

Model NO. SH Trademark shenghua Origin Anping China HS Code 84633000 Production Capacity 10000pieces/ days

Product Description

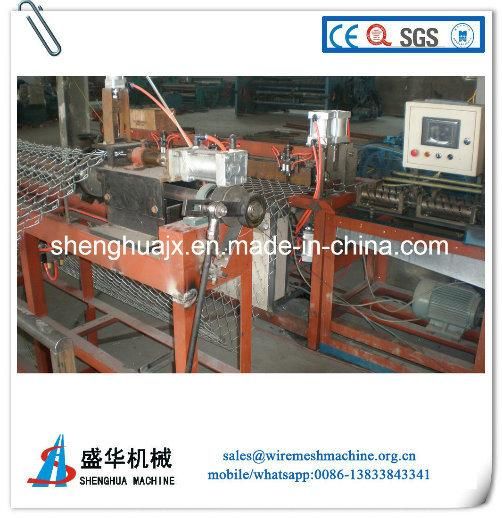

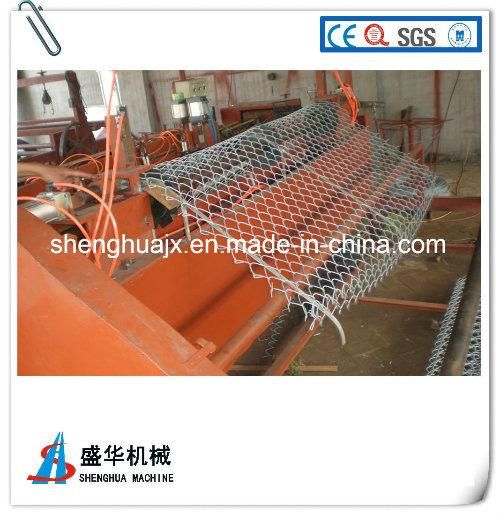

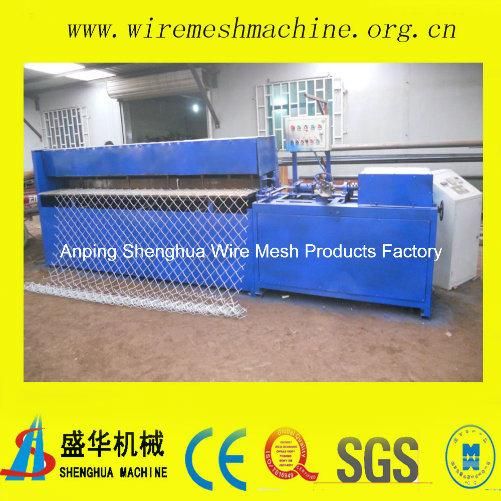

Full automatic chain link fence machine

   Full Automatic Chain Link Fence Machine is a new automatic type machine for Chain Link Mesh. It is develops on the basis of semiautomatic mechanical and the mechanical and electrical completely automatic machine, It is a comprehensive model machine, that gather the machinery and pneumatic. And its structure is very simple, the weight is light, and take less place. And it adopt the new Frequency and electronically controlled clutch, can operated convenient and maintenance simply. The general knowledge is very easy to hold, onespecialized worker can operated several sets machine,the output is high, it is the best choice for the Business, factories,and  individual.
Technical detail:
Wire diameter:1.6-4.0mm
Maximum width: 3000mm
Mesh size:25*25mm-100*100mm
Motor: 3.0KW one set, 1.5kw one set, 0.75kw two sets, 0.12KW one set
Output : 120m2/hour
Weight of machine: 3200kgs
Outsides of machine: 5800*1500*2300mm
The side cut wire and bending or twisted is automatically, The machine automatically stops as soon as it reaches the length production setting.,The machine can produce chain link fence with both Galvanized Wire and PVC Coated wire.

Parts detail: wire pay-off two sets, wire forming parts one sets, wire weaving parts one set, mesh roller one sets, mesh compact machine one set.

Terms:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training: we will send one engineer to install and training the machine for the customer, and the salary is USD 85 per day, the customer also need to pay for the tickets, hotel and foods.
Delivery time: 40days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery.
Packing: waterproof material,control box: wooden case

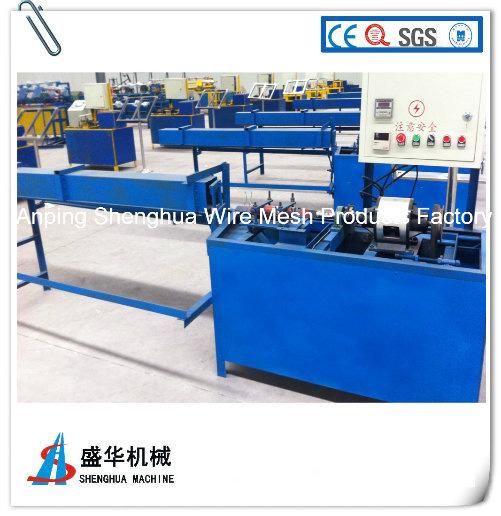

Semiautomatic chain link fence machine

The machine are operated simple, the technical can control easily, it adopt the cutting wire artificially, border closing. The surface of panel is smooth, the function is reliable, services conveniently, and it is suitable for the small enterprise.
Main technical parameter
1, outside size length: 2400mm width: 4400mm height: 2500mm
2, the biggest workplace: 8000mm the biggest breadth: 8000mm
3, the max aperture of weaving: 200*200mm
4, the max wire diameter of weaving: 4.5mm the min wire diameter of weaving: 1.0mm
5, power: 3KW/set 0.12KW/set
6, production efficiency: 20--40m2/hour
7, gross weight: 1.5T

wire diameter	1.0--4.0mm
width	1--4m
mesh size	30*30--200* 200
bending sides	automatically
speed	60--90m2/hours
