• Model NO.：SH-P
• Transport Package：waterproof and dampproof material or wooden case
• Specification：ISO9001
• Trademark：SHENGHUA
• Origin：China
• HS Code：84521090
• Production Capacity：10-12 sets,month

Specification

OLT-65

OLT-70

OLT-80

Pay-off wire spool

PN1250

PN1250

PN1250

Screw diameter

65mm

70mm

80mm

Screw L/D

25:1

25:1

25:1

Extrusion capacity

100kg/h

130kg/h

150kg/h

Host motor power

15HP

22HP

30HP

Diameter specification

0.8-3.5mm

0.8-5.0mm

1.5-6.5mm

Temperature control

4+1

4+1

5+1

1. Machine is fully automatic machine that could produce PVC coating on Nail Wire or Galvanized Wire.

2. The machine is able to produce PVC Coating using wire sizes from1.0--6.0mm,

and the coated thickness is according the mould, we can do the mould according your need.

3. The wire produced is top quality were the bonding between the iron wire and the PVC should be strong and the PVC coating should be glued to the iron wire and will not be loose

4. Machine production capacity is 70 to 100kg per house.

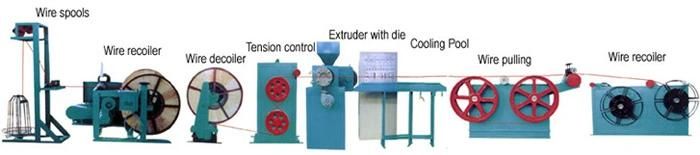

5. The machine will be supplied with all components including the wire stand, the extruder, wire cooling unit, PVC mixing unit, motor, wire rolling unit etc.  Where the machine should be ready for producing PVC Coated Wire without needing any additional machines.

6. The machine can also coated PE, PU on the wire

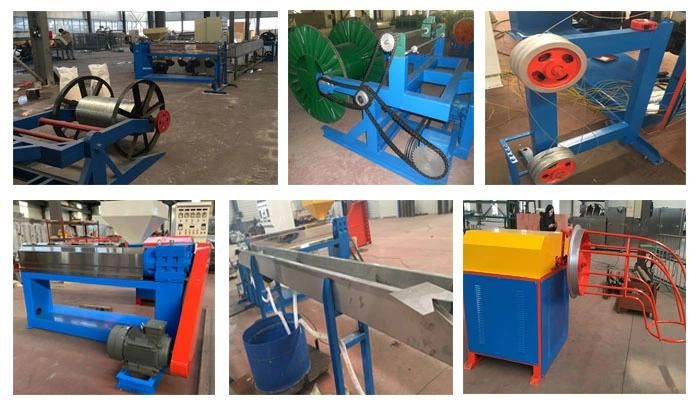

Detail pictures

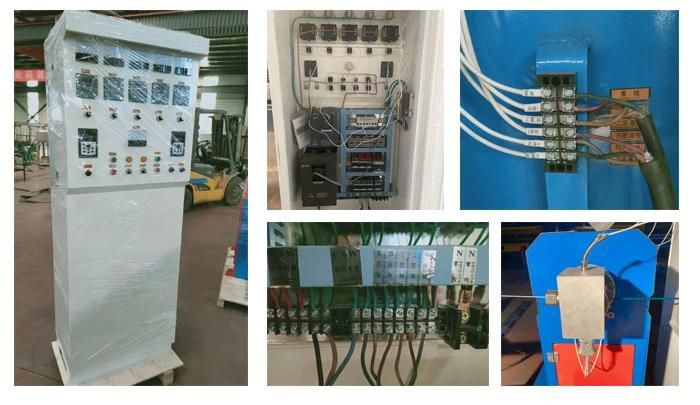

Cabinet

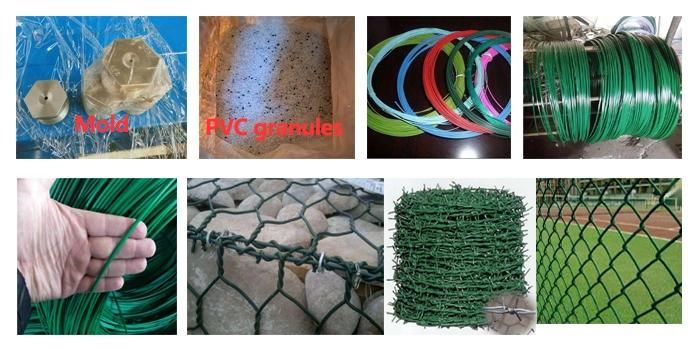

mesh,grassland fence,barbed wire fence,gabion box,etc.

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.

Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment

Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.

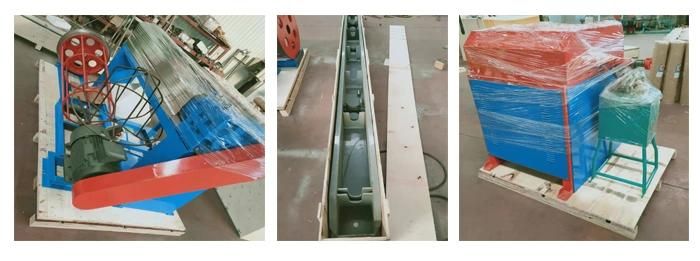

Packing: The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also

Company information

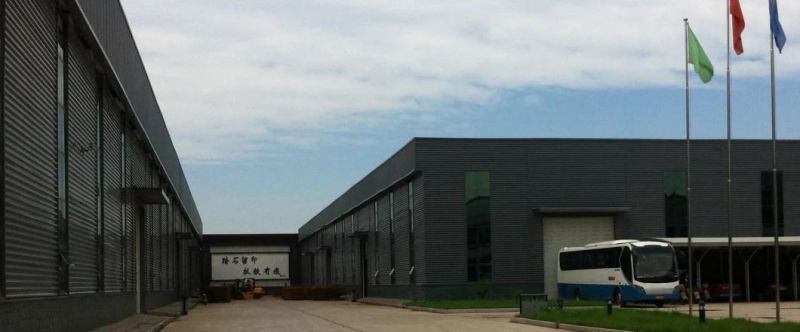

1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.

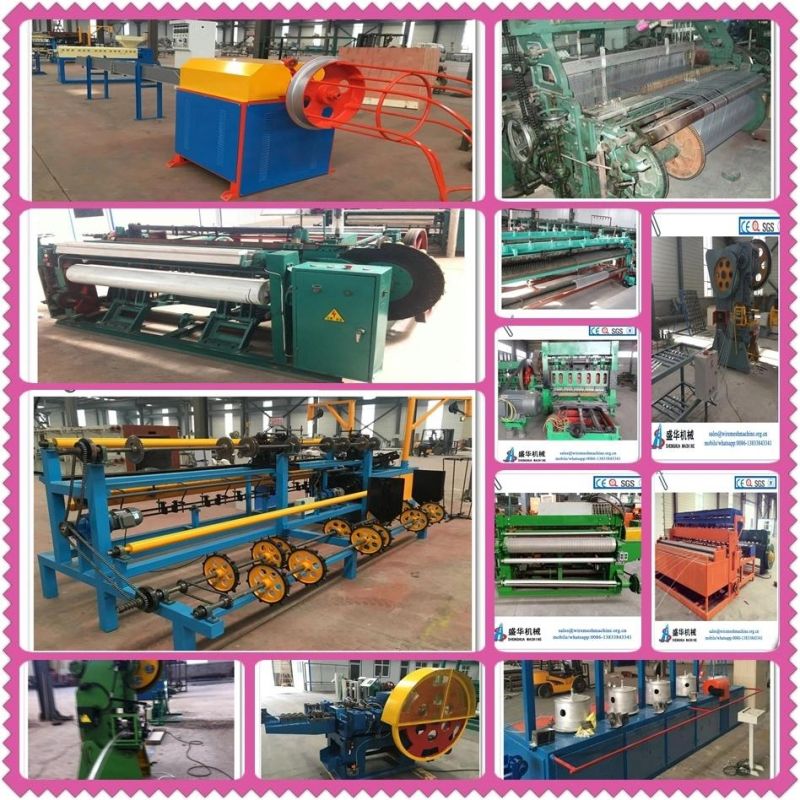

2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on
